Basic Info.
Model NO.
MD-S260
Type
Digital Display
Accuracy
1
Display
Digital
Application
Industrial
Structure
Ceramic Sensor
Connection Type
Radial Direction
Function
Local Indication Type
Installation Structure
Direct Mounting
Features of Measurement Medium
Gas Liquid Water
Indicating Pressure Reference
General Pressure Gauge
Power
2 AAA Batteries
Transport Package
Carton
Specification
0.3kg
Trademark
Meokon
Origin
Shanghai
HS Code
9026209090
Production Capacity
100000/Year
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 8.00cm
Package Gross Weight
0.300kg
Product Description

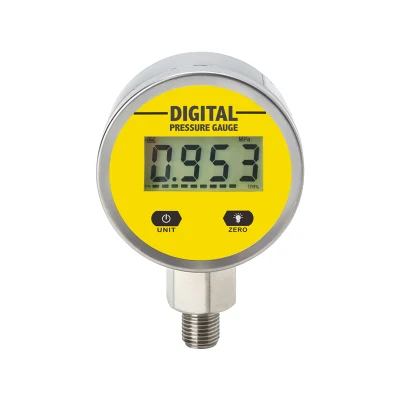

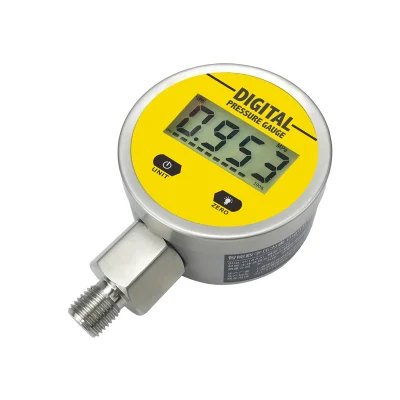

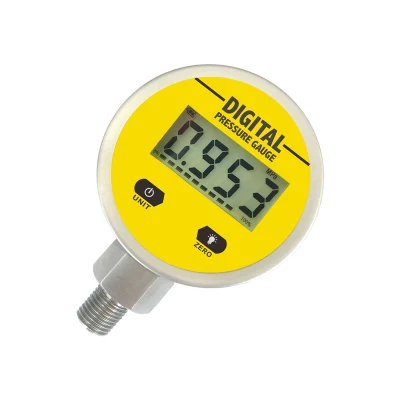

This gauge is a high-precision and intelligent digital pressure gauge. It has a high-precision sensor and display the pressure accurately in real time, equipped with a large size LCD. It has a various of features, such as zero clearing, backlight, on/off button, units, low voltage alarm. And it is convenient to install and easy to operate.
The surface and connector of the product is 304SS. It can be used to measure gas, liquid, oil and other non-corrosive mediums of stainless steel. It applies to these fields: portable pressure measurement, equipment supporting, equipment calibrations.
Different pressure units to change, zero clearing, backlight, on/off ,Battery powered,
low-power design keeping working for 18 months
All stainless steel shell, small size
Pressure percentage display
Supporting equipment of instruments and meters
Pressure Laboratory
Mechanical engineering automation
Specifications:
The surface and connector of the product is 304SS. It can be used to measure gas, liquid, oil and other non-corrosive mediums of stainless steel. It applies to these fields: portable pressure measurement, equipment supporting, equipment calibrations.
Technical Characteristics:
4 digit LCD showing the pressure accurately in real timeDifferent pressure units to change, zero clearing, backlight, on/off ,Battery powered,
low-power design keeping working for 18 months
All stainless steel shell, small size
Pressure percentage display
Application:
Machinery and electronic industrySupporting equipment of instruments and meters
Pressure Laboratory
Mechanical engineering automation
Specifications:
| Specifications: | |
| Range | Micropressure : (0.1…0.16…0.25)MPa |
| Medium Voltage : (0.4…0.6…4)MPa | |
| High Pressure : (6…10…25)MPa | |
| Differential Pressure : (0~10…25…40…60…100…250…400…600)kPa (0~1…1.6)MPa | |
| Over Pressure | 150% |
| Backlight Color | White |
| Dial Size | 60mm |
| Acc. | 1%FS |
| Long-term Stability | Typical : ±0.5%FS/year |
| Operating Temperature | -5~40ºC |
| Compensation Temperature | En61326 |
| Electric Protection | Anti Electro Magnetic Interference |
| Sampling Frequency | 2 Times/sec |
| Measurement Medium | Gas,liduid,water |
| Connection | M20*1.5, G1/4, G1/2, 1/4NPT, 1/2NPT(Customized) |
| Connection Material | 304SS |
| Shell Material | 304SS |
| Power Supply | 2AAA batteries |
| Function | On/off, Zero Clearing, Units Changing, Backlight |
| Battery Model | Triple A battery |
| IP Rating | IP50 ( IP54 with Protection Sleeve) |
