Basic Info.
Model NO.
KLUX-50
Application
Energy Metering
Type
Turbine Flow Meter
Measuring Media
Gas
Measuring Principle
Electrical Principles
Measurement Object
Closed Pipeline
Certification
ISO, SGS
Output Type
RS485, 4-20mA, Pulse
Power Supply Type
3.6V Lithium Battery or 24VDC
Medium
Natural Gas, Air N2, CO2
Connection Type
Flanged
Transport Package
Wooden Box Package or Carton Package
Specification
680*280*270mm
Trademark
kunkeandao
Origin
Weihai
HS Code
9026100000
Production Capacity
3000 Pieces/Year
Product Description

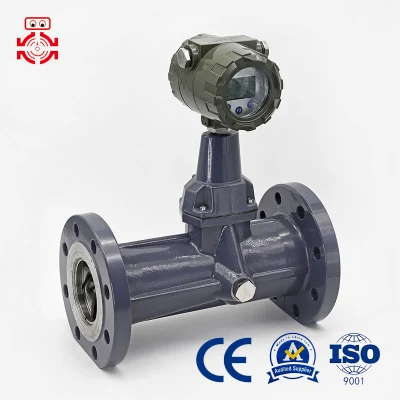

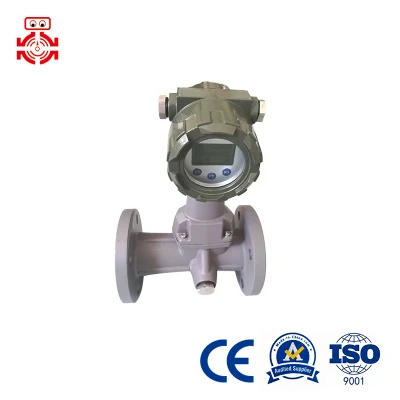

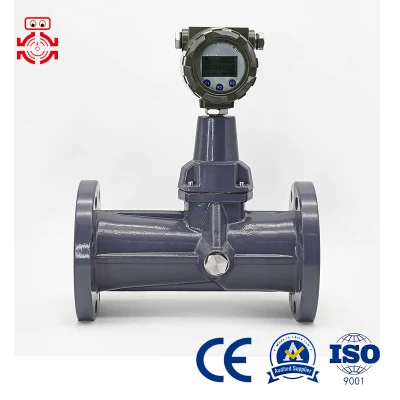

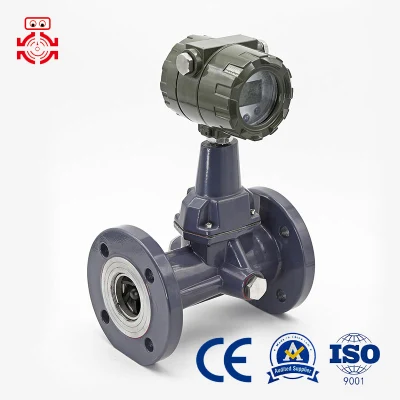

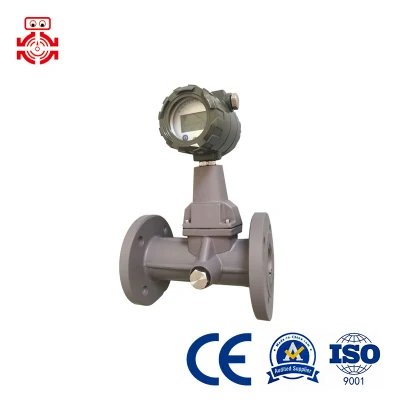

Air, oxygen, nitrogen measurement special precession vortex flowmeter, low price
Product description:
Product Features :
1.Pipe size: DN15-200
2.Power supply:24VDC and 3.6V lithium battery
3.Output :4~20mA ,pulse ,RS-485
4.Used for natural gas,N2,CO2,O2,Air and other pure gases
5. Connection type:Flange type
Product details:
Technical parameters:
Production Process:
Field Application:
Exhibition information:
Payment&Delivery:
Product description:
The intelligent precessing vortex flowmeter can be
widely used in petroleum, chemical, electric power,
metallurgy, urban gas supply and other industries to
measure various gas flows. It is currently the first
choice for oilfield and urban natural gas transmission
and distribution measurement and trade measurement.
widely used in petroleum, chemical, electric power,
metallurgy, urban gas supply and other industries to
measure various gas flows. It is currently the first
choice for oilfield and urban natural gas transmission
and distribution measurement and trade measurement.
1.Pipe size: DN15-200
2.Power supply:24VDC and 3.6V lithium battery
3.Output :4~20mA ,pulse ,RS-485
4.Used for natural gas,N2,CO2,O2,Air and other pure gases
5. Connection type:Flange type
Product details:
Technical parameters:
| Nominal diameter (mm) | Flow range(m3/h) | Nominal pressure(MPa) | Pressure loss (kPa) | Accuracy | Repeatability | Case material |
| 15 | 1~7 | 1.6 2.5 4.0 6.3 10.0 16.0 25.0 | △P=ρ/1.205×PN | 1.0 1.5 | Less than 1/3 of the absolute value of the basic error limit | Cast aluminum alloy shell 304 stainless steel housing |
| 20 | 1~18 | |||||
| 25 | 2~30 | |||||
| 32 | 4.5~60 | |||||
| 40 | 6~80 | |||||
| 50 | 10~150 | |||||
| 65 | 18~220 | |||||
| 80 | 28~400 | |||||
| 100 | 50~800 | |||||
| 125 | 80~1000 | |||||
| 150 | 100~2200 | |||||
| 200 | 360~3600 |
Field Application:
Company information:
WEIHAI KUNKE FLOW INSTRUMENT CO.,LTD. is a high-tech enterprise specializing in meter research and development, production, sales and service.
The company was founded in 2010. In 2012, it won the excellent incubation enterprise of Weihai City. It is a high-tech enterprise supported by the Weihai Municipal Government. In 2017, the company was listed as a securities company.
The company has successively obtained ISO9001-2015 international quality system certification, ISO14001-2015 environmental management system certification, OHSAS18001-2007 occupational health and safety management system certification and ISO10012-2003 measurement management system certification, CE certificate,
The company was founded in 2010. In 2012, it won the excellent incubation enterprise of Weihai City. It is a high-tech enterprise supported by the Weihai Municipal Government. In 2017, the company was listed as a securities company.
The company has successively obtained ISO9001-2015 international quality system certification, ISO14001-2015 environmental management system certification, OHSAS18001-2007 occupational health and safety management system certification and ISO10012-2003 measurement management system certification, CE certificate,
Exhibition information:
Related Products:
FAQ:
Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.
Q:Can I use a precession vortex flowmeter to measure steam?
A: can't,but vortex flow meter can measure .
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU .
Q: What is the warranty for your product ?
A: Warranty: 1years.
Q: Can electromagnetic flowmeters measure sea water?
A: Yes, any liquid that conducts electricity can be measured by electromagnetic flowmeters.
Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.
Q:Can I use a precession vortex flowmeter to measure steam?
A: can't,but vortex flow meter can measure .
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU .
Q: What is the warranty for your product ?
A: Warranty: 1years.
Q: Can electromagnetic flowmeters measure sea water?
A: Yes, any liquid that conducts electricity can be measured by electromagnetic flowmeters.
