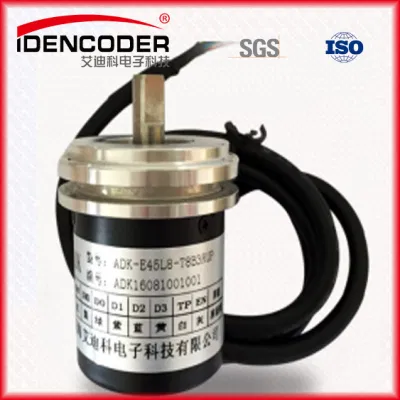

Basic Info.
Model NO.
E50S8-1000-3-T-24
Package
SMD
Installation Form
Axle Sleeve Type
Brand
Idencoder
Axonia
Clamping Flange Type
Resolution
1000
Output Way
Incremental Encoder
IP Rate
IP51
Output Coder /Phase
a B Z
Transport Package
Normal Package
Specification
70g
Trademark
idencoder
Origin
China
HS Code
8543709990
Production Capacity
50000PCS/Years
Product Description

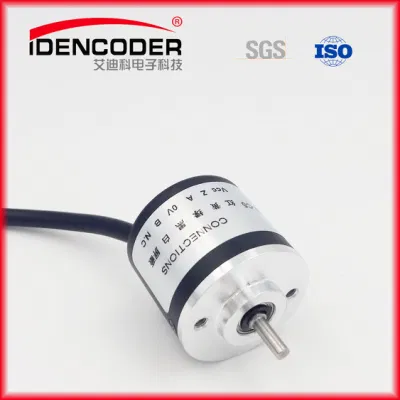

OVERRIEWS
Place of Origin: Weihai, China (Mainland) Brand Name:IDENCODER
Model Number: ADK-K40L6 Usage:Position Sensor
Theory: Optical Sensor Output:C,E,P,L
Type: Incremental Shaft:Solid shaft
Shaft Diameter:6mm Outer diameter:40mm
Pulse:10-5000p/r or as requested Output signal: A, B, Z,A-,B-,Z- phase
Material:metal Wire outlet: as requested
Quality:1 year Certification: SGS, ISO9001
Output Circuit
Electrical Specifications
Mechanical Specifications
Packaging & Delivery
Packaging Details
The rotary encoder is packed in standard export packaging or as required by buyers
Delivery Time
Shipped within 15 days after payment
Company information:
Weihai Idencoder Electronic Technology Co.,Ltd. are mainly engaged in developing, producing and marketing high-performance industry rotary encoder and provide the electrical automation solutions for our customers.
With the strong R&D team ,our company have gained several proprietary intellectual property rights,seven software copyrights and one patent have been achieved . Three patents for invention are applied on the way.our company cooperates with Harbin Institute of Technology and Beijing University of Aeronautics to research and innovate on the encoder.Now we have successfully developed dozens of encoders such as,incremental encoder,absolutely encoder,Bus-based encoder and so on.The products of Machinery multi-turns bus-based encoder and Exquisite type true multi-turns Bus-based encoders take the leading position in China domestic market..The PROFINET encoder we are developing now successfully developed has filled a gap in domestic in China.
Nowadays,Weihai Idencoder Electronic Technology Co.,Ltd. Cooperated with the SIEMENS company and provide our products for the customers all over the world by Siemens Industrial Ethernet.
Exhibition:
Application of rotary encoder
Packaging and shipping
FAQ:
1) How to select an encoder?
Before ordering encoders, you could clearly know which type of encoder you may need.
There are incremental encoder and absolute encoder, after this, our sale-service department would better work for you.
2) What specifications are requested before order an encoder?
Encoder type----------------solid shaft or hollow shaft encoder
External Diameter----------Min 25mm, MAX 100mm
Shaft Diameter---------------Min shaft 4mm, Max shaft 45mm
Phase & Resolution---------Min 20ppr, MAX 65536ppr
Circuit Output Mode-------you could choose NPN,PNP,Voltage, Push-pull,Line driver, etc
Power Supply Voltage------DC5V-30V
3) How to choose a right encoder by yourself ?
Exact Specification Description
Check The Installation Dimensions
Contact Supplier to get more details
4) How many pieces to start ?
The MOQ is 20pcs .Less quantity is also ok but the freight is higher.
5) Why choose "Idencoder " Brand Encoder?
All encoders are designed and developed by our own engineer team since year 2004,
and most of the electronic component of encoders are imported from overseas market.
Never let our quality down,because quality is our culture.
6) How long is your lead time?
Short lead time----3 days for samples,7-10days for mass production
7) what is your guarantee policy?
1year warranty and life-long technical support
8)What are the benefit if we become your agency ?
Special prices, Market protection and supporting.
9)What is the process to become IDENCODER agency?
Please send us enquiry,we will contact you as soon as possible.
10)What is your production capacity?
We produce 5000pcs every week.Now we are building second phrase production line.
Place of Origin: Weihai, China (Mainland) Brand Name:IDENCODER
Model Number: ADK-K40L6 Usage:Position Sensor
Theory: Optical Sensor Output:C,E,P,L
Type: Incremental Shaft:Solid shaft
Shaft Diameter:6mm Outer diameter:40mm
Pulse:10-5000p/r or as requested Output signal: A, B, Z,A-,B-,Z- phase
Material:metal Wire outlet: as requested
Quality:1 year Certification: SGS, ISO9001
Output Circuit
Electrical Specifications
| Output circuit | Open-collector outputs | Voltage outputs | Push-pull complementary outputs | Long Driver |
| Supply Voltage | 5-30v | 5-30v | 5±0.25 5-30V | 5±0.25 5-30V |
| Current consumption | ≤80mA | ≤80mA | ≤80MA | ≤150mA |
| Load current | 40mA | 40mA | 40mA | 60mA |
| Output high | Min Vcc*70% | Min Vcc-2.5v | Min Vcc-1.5v | Min3.4V |
| Output Low | MAX0.4V | MAX0.4V | MAX0.8V | MAX0.4V |
| Rise time Tr | MAX1us | MAX1us | MAX1us | MAX200ns |
| Fall time Tf | MAX1us | MAX1us | MAX1us | MAX200ns |
| Highest frequency response | 300kHZ | 300kHZ | 300kHZ | 300kHZ |
Mechanical Specifications
| Max speed r/min | Starting torque | Axis maximum load | Impact | Anti-vibration |
| 6000 | <0.05nm | Radial 50n Axial 50N | 50G/11ms | 10G 10-200Hz |
| Moment inertia | Work temperature | Storage Temperature | Protection Degree | Weight |
| 4*10.-8kg | -25~80ºC | -30~85ºC | IP51 | 600g |
Packaging & Delivery
Packaging Details
The rotary encoder is packed in standard export packaging or as required by buyers
Delivery Time
Shipped within 15 days after payment
