Product Description
- Aspheric optical lens totally eliminate stray light and special optical structure has strong light resistance
- Red LED indicates working status, easy for installation
- LIGHT ON/DARK ON can be selected
- Protection rating IP67 with complex process
- Built-in reverse polarity protection, over-voltage protection, short-circuit protection
- The wiring outlet is integrally formed, and the sealing performance is better
- Detection distance with 10m/25m/50m(PMF55T series: 60m)
- Failure rate, 0.1%
| Product Parameters | ||

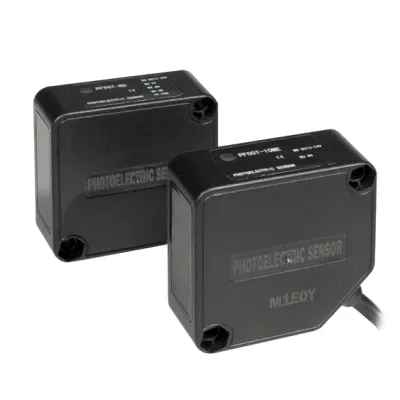

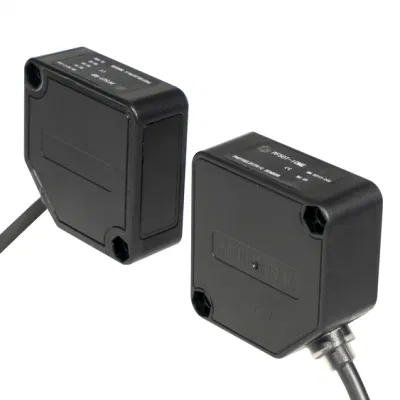

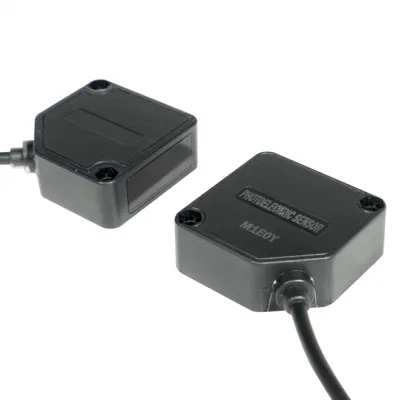

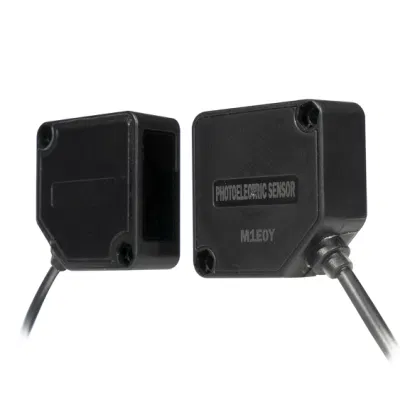

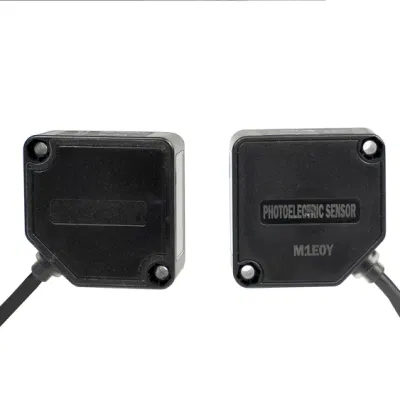

| Photoelectric sensor | PF50T | |
| Detection type | Opposed type | |
| Detection object | MinΦ30mm opaque object | |
| W:MinΦ60mm opaque object | ||
| Detection distance | 10m/25/50m | |
| Supply voltage | 12-24VDC±10% | |
| No-load current | Max.60mA | |
| Power consumption | Max.3VA(AC) | |
| Response time | Max.20ms | |
| Light source | Infrared LED(modulated) | |
Spot diameter | 10m wide beam | Φ200mm(1m) |
| 10m | Φ120mm(1m) | |
| 25m | Φ800mm(8m) | |
| 50m | Φ1000mm(8m) | |
| Action mode | Selecting Light On or Dark On by product model | |
Control output | Relay output,(contact rating: 30VDC 3A resistance load, 250VAC,3A resistance load,contact component: 1C) | |
| Indicator | Power indicator: green;Action indicator: red | |
| Protection circuit | Reverse polarity protection | |
| Ambient brightness | Sunlight: Max.30000Lux fluorescent: Max.3000Lux | |
| Ambient temperature | -20ºC~60ºC (No-freezing) | |
| Ambient humidity | 35~85%RH | |
| Housing material | Housing: ABS Lens: PMMA | |
| Shape and size | As dimension | |
| Cable | Emitter: Φ 5, 2×0.3mm²; Receiver: Φ5, 5×0.2mm²,standard line:2m | |
| Protection rating | IP67 | |
| Accessory | Bracket: IB02,Screw: M4×25 | |
Q: What kind of products do you manufacture?
A: Our products includes photocell sensor, proximity switch, infrared light curtain, Vehicle separator, Loop detector and laser radar.,etc.
Q: Can I get some samples?
A: Yes, Sample orders are welcomed.
Q: Have photocell sensors 100% assembled well in stock?
A: We have some standard photocell sensors in stock with limited quantity; While
almost all photocell sensors will be newly produced according to your order.
Q: What is the delivery time?
A: 15-30 days for mass production depends on different products
Q: What is your MOQ?
A: We provide small MOQ for each item; it depends on your specific order.
Q: Do you have customization service?
A: Yes, We can provide customized products while the customization needs to meet certain quantity.
Q: Do you test all goods before delivery?
A: Yes, We have 100% test before delivery.
Q: What is your payment term?
A: We usually use 100% T/T in advance; West union and Paypal are also available for small order.
Q: Do you provide warranty for the goods?
A: Yes, We provide warranty for all the goods from us. For the sensor product the warranty is 15 months, For the light curtain , laser radar product the warranty is 18 months.
