Basic Info.
Model NO.
BYD110BS/110BSF
Production Process
Integration
Material
Stainless Type
IP Rating
IP65
Certification
CE
Customized
Customized
Therory
Infrared Thermometer
Output
0-5V
Warranty
One Year
Delivery Time
3-10 Days
Ambient Temperature
0-60 Degree Temperature
Temperature Range
-20-1100 Degree Temperature
Transport Package
Box Package
Trademark
BIEDAS
Origin
China Jiangsu
HS Code
9025900010
Production Capacity
100000 Pieces/ Year
Packaging & Delivery
Package Size
23.00cm * 14.00cm * 16.00cm
Package Gross Weight
0.500kg
Product Description

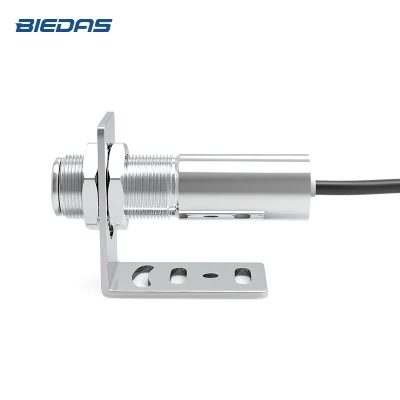

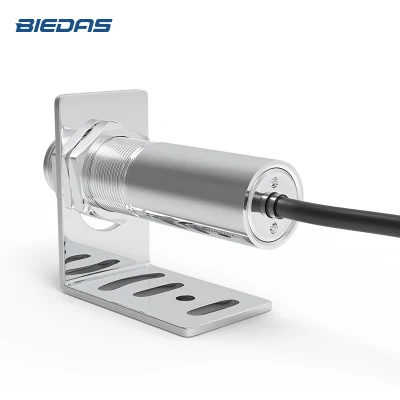

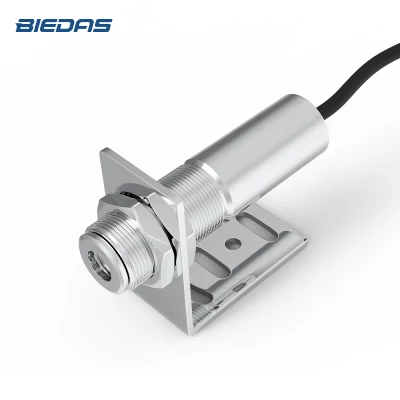

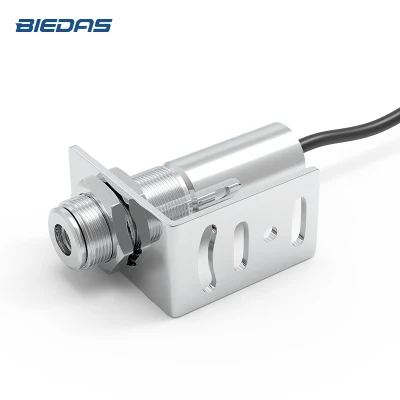

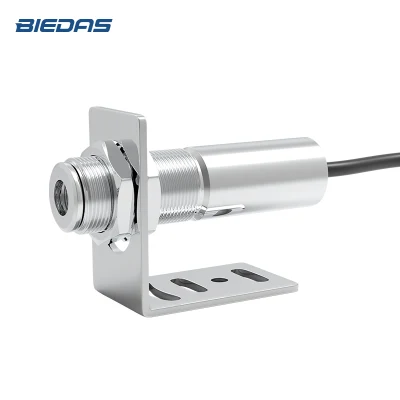

Infrared Temperature Sensor
| Product Lectotype Table | |||
| BIEDAS Combination1 Combination2 Combination3 | |||
| Brand BIEDAS | Combination 1 Temperature Range | Combination 2 Output Signal | Combination3 Onset Temperature |
BIEDAS | 10:0-100ºC 15:0-150ºC 20:0-200ºC 30:0-300ºC 40:0-400ºC 50:0-500ºC 60:0-600ºC 70:0-700ºC 80:0-800ºC 90:0-900ºC 100:0-1000ºC 110:0-1100ºC 120:0-1200ºC 130:0-1300ºC DZ:(Customizable at will within the temperature range of -30-1300 ºC) | AS:4-20mA BS:0-5V CS:0-10V R4D:RS485 ASK: 4-20mA BSK: 0-5V R4BK: 0-10V | F:Onset temperature should select at least from -20 ºC for testing. |
| Example 1: BIEDAS brand, 0-500 ºC, 4-20mA output: model BYD50AC Example 2: BIEDAS brand, -20-500 ºC, RS485 output: model BYD50R4CF Example 3: BYDDZBC brand, -30-150 ºC, 0-5V output: model BYDDZBC (-30-150 ºC), customized temperature range needs to be noted. | |||
Thank you for choosing "BIEDAS" Brand BIEDAS * 0AC/BC/CC/R4C/R2C series online infrared thermometer.
The BIEDAS infrared thermometer is composed of infrared optical lens, light filter, sensor, electrical signal processing unit and so on. It can detect infrared radiation from the measured target and determine the temperature of the target based on its radiation intensity.
The BIEDAS infrared thermometer provides multiple signal outputs and can be easily installed in various application occasions, making it particularly suitable for installation in industrial environments that require long-distance and strong interference.
The BIEDAS infrared thermometer adopts a stainless steel shell, which has good protective value in industrial sites.
The BIEDAS infrared thermometer adopts a stainless steel shell, which has good protective value in industrial sites.
