Basic Info.
Model NO.
BYD-F180A
Production Process
Integration
IP Rating
IP65
Certification
CE
Customized
Customized
Therory
Infrared Thermometer
Output
4-20mA
Warranty
One Year
Delivery Time
3-10 Days
Ambient Temperature
0-50 Degree Temperature
Temperature Range
-50~1800 Degree Temperature
Transport Package
Box Package
Trademark
BIEDAS
Origin
China
HS Code
9025900010
Production Capacity
100000 Pieces/ Year
Packaging & Delivery
Package Size
26.00cm * 15.00cm * 18.00cm
Package Gross Weight
2.000kg
Product Description

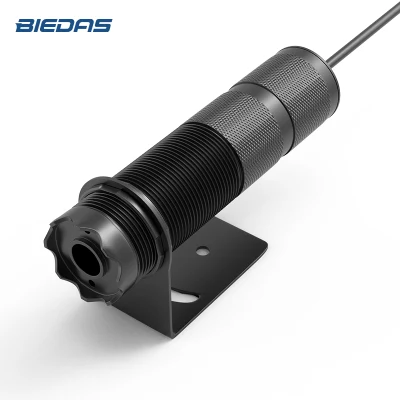

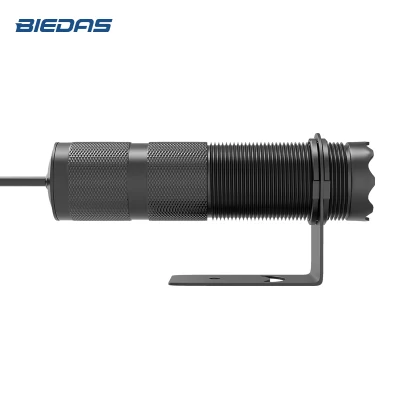

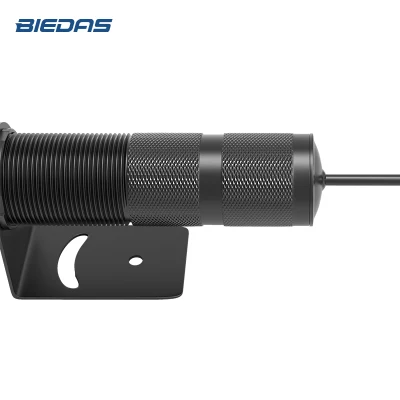

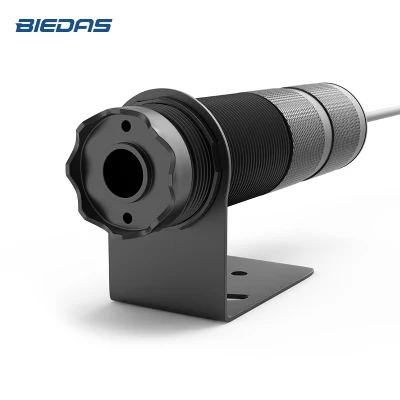

Infrared Temperature Sensor
Description

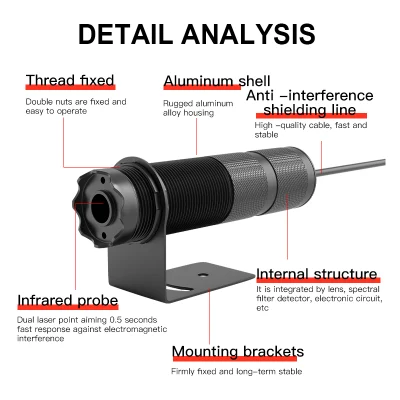

As a Integrated transmitter infrared thermometer, BYD-FX0A have the
integration of the sensor, the optical system and the electronic circuit
inside its stainless steel or aluminium alloy shell. It can be installed very conveniently by making the standard screw thread on the product be joined with the installation position.
The principle of temperature measurement by infrared
Any object transmits the infrared radiation,and the radiation intensity varies with temperature. Infrared temperature measurement uses thermal radiation within the range of wavelength 8-14um.
The infrared thermometer is a kind of hot-electron sensor which can receive the infrared radiation and transform it to a measurable electric signal, and itsmain assemblies are as following:
• Lens
• Spectrum filter
• Detector
• Electronic circuit (Amplifier/ linearization/ signal processing)
Light path of the infrared thermometer is determined by the specification of lens. The spectrum filter can choose the best spectral
range for temperature measurement.The power of infrared radiation can be transformed to electric signal by detector and electronic circuit.
Main features
• High precision
• High optical resolution ratio
• Firm metal shell
• Large temperature range:
-50ºC~1800ºC (-58ºF~3272ºF)Temperature range is optional
• Output: 4-20mA
• Optimum test distance: 16cm
• Size: Φ60mm×198.5mm
As a Integrated transmitter infrared thermometer, BYD-FX0A have the
integration of the sensor, the optical system and the electronic circuit
inside its stainless steel or aluminium alloy shell. It can be installed very conveniently by making the standard screw thread on the product be joined with the installation position.
The principle of temperature measurement by infrared
Any object transmits the infrared radiation,and the radiation intensity varies with temperature. Infrared temperature measurement uses thermal radiation within the range of wavelength 8-14um.
The infrared thermometer is a kind of hot-electron sensor which can receive the infrared radiation and transform it to a measurable electric signal, and itsmain assemblies are as following:
• Lens
• Spectrum filter
• Detector
• Electronic circuit (Amplifier/ linearization/ signal processing)
Light path of the infrared thermometer is determined by the specification of lens. The spectrum filter can choose the best spectral
range for temperature measurement.The power of infrared radiation can be transformed to electric signal by detector and electronic circuit.
Main features
• High precision
• High optical resolution ratio
• Firm metal shell
• Large temperature range:
-50ºC~1800ºC (-58ºF~3272ºF)Temperature range is optional
• Output: 4-20mA
• Optimum test distance: 16cm
• Size: Φ60mm×198.5mm
| Model | BYD-F30A / BYD-F60A / BYD-120A / BYD-F180A | |
| Temperature Range | BYD- F30A : -50ºC ~300ºC(-58ºF ~572ºF) | |
| BYD- F60A : -50ºC ~600ºC(-58ºF ~ 1112ºF) | ||
| BYD- F120A : -50ºC ~ 1200ºC(-58ºF ~2192ºF) | ||
| BYD- F180A : -50ºC ~ 1800ºC(-58ºF ~3272ºF) | ||
| Spectral Response | 8~ 14um | |
| Distance Spot Ratio (D:S) | 50 : 1 | |
| Response Time | 500ms | |
| Accuracy | ≥100ºC ±2% , ≤100ºC ±2ºC | |
| Repeatability | ±1% or ±1ºC | |
| Emissivity | 0.95 fixed | |
| Power | DC 9~24V | |
| The maximum current | 50mA | |
| Analog output | RT-A: 4~20mA | |
| Isolation: Power, digital output and analog output are isolated and do not interfere with each other. | ||
| Protection level | Ip65 | |
| Environmental temperature | 0~50ºC | |
| Storage temperature | -20~50ºC | |
| Relative Humidity | 10~95% | |
| Shell material: Aluminium alloy | ||
| Standard wire length: 4m (or can be 5m or 10m or other length you need). | ||
| With CE approval and protection against electromagnetic disturbance for EU standard. | ||
| Cautions: (1)This instrument is not recommended for the measurement of bright or polished metal surfaces (non-ferrous metal objects such as stainless steel, aluminum, etc.); The reflections will affect the accuracy of the measurement. (2)The temperature can not be measured through the glass , otherwise the temperature value will only be the surface temperature of the glass. (3)The accuracy of the measurement will be affected by the steam , dust, smoke, etc. | ||
