Basic Info.
Model NO.
BM612
Window Size
4.2*5.2mm
Encapsulation
T0-5
Wavelength
5-14um
Pins
6
Power Voltage
3-15V
Ldr Light Control
Ajustable
Sensitivity
Ajustable
Delay Time
Ajustable
Sample
Welcome
Transport Package
Usual Packing
Specification
CE&ROHS
Trademark
Haiwang
Origin
Shenzhen, Guangdong
HS Code
9031809090
Production Capacity
100000/Week
Product Description

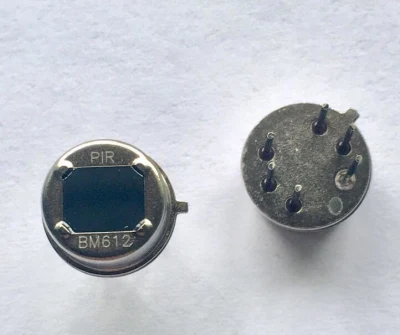

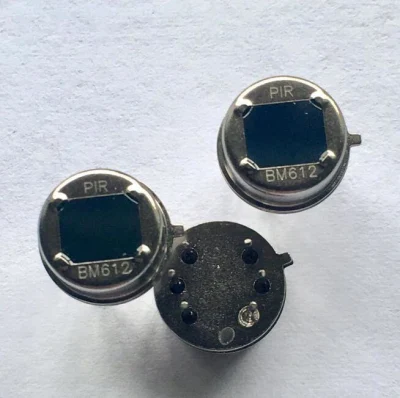

6 pins Digital smart anti-interference infrared PIR motion sensor BM612
Upgraded Digital smart anti-interference infrared PIR motion sensor BM612
we can accept all sorts of functions with customized products.
For example: the size/output signal/Operating voltage/power etc would be optional.
Our company is a factory, we concentrate on this business more than 20years, so there have many types, KP506B,RE200B,KP500B, LHI778, LHI878, LHI968, D203S, D203B,AM312,HM612,AM612 and many others. If you are interested in, please send inquiry to us.
Product Description
AM612 is a newest smart digital motion detector. This Smart digital detector offers a complete motion detector solution,with all electronic circuitry built into the detector housing. Only a power supply and power-switching components need to be added to make the entire motion switch, a timer is included. The series has versions which can include ambient light level and sensitivity adjustments.
Features and Benefits
Digital signal processing(DSP)
Power adjustable, save more energy
Two-way differential high impedance sensor input
Built-in filter, screen the interference by other frequency
Excellent power supply rejection, Insensitive to RF interference
Schmidt REL output
Low voltage, low power consumption, instantaneous settling after
power up
Applications
Toys
Digital photo frame
TV, Refrigerator, Air-conditioner
USB Alarms
PIR motion detection
Intruder detection
Occupancy detection
Motion sensor lights
Computer monitor
Security system
Automatic control for indoor, corridor and stairs lights, etc.
PIR Infrared Detector Technical Data:
1. Maximum Ratings
2. Operating Conditions (T=25°C, VDD=3V, Except Other Requirement)
About Haiwang
Shenzhen Haiwang Sensor Co., Ltd is specialized in developing, manufacturing and export of photo resistor, thermisters, sensors, optical lenses and other sensitive components.
Our products include photoresistance, photosensitive sensor, thermistor, pyroelectric infrared sensor,
infrared induction IC, fresnel lens, LED lens and other related sensitive components.
Upgraded Digital smart anti-interference infrared PIR motion sensor BM612
we can accept all sorts of functions with customized products.
For example: the size/output signal/Operating voltage/power etc would be optional.
Our company is a factory, we concentrate on this business more than 20years, so there have many types, KP506B,RE200B,KP500B, LHI778, LHI878, LHI968, D203S, D203B,AM312,HM612,AM612 and many others. If you are interested in, please send inquiry to us.
Product Description
AM612 is a newest smart digital motion detector. This Smart digital detector offers a complete motion detector solution,with all electronic circuitry built into the detector housing. Only a power supply and power-switching components need to be added to make the entire motion switch, a timer is included. The series has versions which can include ambient light level and sensitivity adjustments.
Features and Benefits
Digital signal processing(DSP)
Power adjustable, save more energy
Two-way differential high impedance sensor input
Built-in filter, screen the interference by other frequency
Excellent power supply rejection, Insensitive to RF interference
Schmidt REL output
Low voltage, low power consumption, instantaneous settling after
power up
Applications
Toys
Digital photo frame
TV, Refrigerator, Air-conditioner
USB Alarms
PIR motion detection
Intruder detection
Occupancy detection
Motion sensor lights
Computer monitor
Security system
Automatic control for indoor, corridor and stairs lights, etc.
PIR Infrared Detector Technical Data:
1. Maximum Ratings
| Parameter | Symbol | Min | Max | Unit | Remarks |
| Supply Voltage | VDD | -0.3 | 3.6 | V | |
| Operating Temp | TST | -20 | 85 | °C | |
| Current into any pin | Into | -100 | 100 | mA | |
| Storage Temp | TST | -40 | 125 | °C |
2. Operating Conditions (T=25°C, VDD=3V, Except Other Requirement)
| Parameter | Symbol | Min | Typical | Max | Unit | Remarks |
| Supply Voltage | VDD | 2.7 | 3 | 3.3 | V | IR=0.5mA |
| Working Current | IDD | 12 | 15 | 20 | uA | |
| Sensitivity Threshold Value | Vsens | 120 | 530 | uV | Ajustable | |
| Output REL | ||||||
| Output Low Current | IOL | 10 | mA | VOL<1V | ||
| Output High Current | IOH | -10 | mA | VOH>(VDD-1V) | ||
| REL Low Level Output Blockade Time | TOL | 2.3 | Second | Non-ajustable | ||
| REL High Level Output Delay Time | TOH | 2.3 | 4793 | Second | Ajustable |
