Basic Info.
Model NO.
AS-SHD331
Infrared Sensor Installation
Ceiling
Product Name
Battery Operated Smoke Cum Heat Detector
Operating Voltage
9V Battery
Standby Current
≤20uA
Alarm Current
≤50mA
Indicator
Two LEDs
Alarm Decibel
85dB
Smoke Sensitivity
0.15±0.03dB/M
Alarm Temperature
57ºC
Test Button
Yes
Wireless Output
Optional
Dimention
106mm X 59mm
Operating Temperature
-10ºC to +50ºC
Operating Humidity
≤95% RH
Usage
Fire Detection, Smoke Detection, Heat Detection
Application
Home, Office, Apartment, Hotel, Bank etc.
Transport Package
Standard Export Cartons
Trademark
Ansorl
Origin
China
HS Code
8531100000
Production Capacity
20000 Pieces Per Month
Product Description

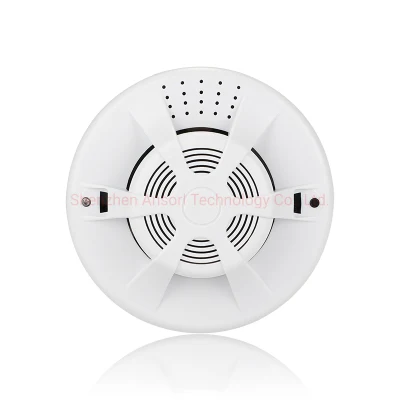

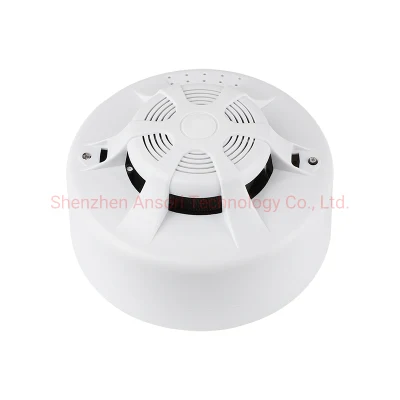

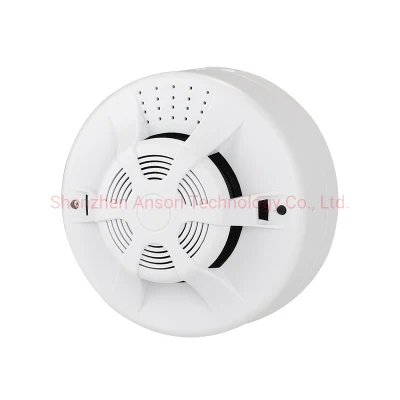

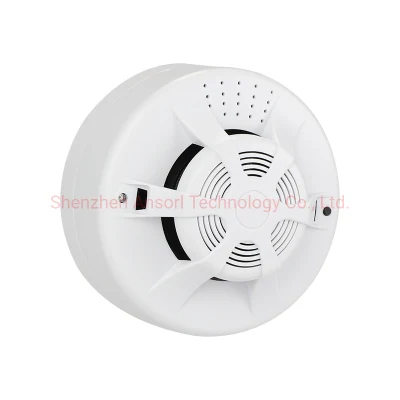

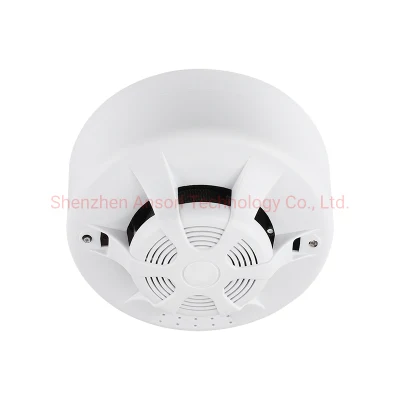

CE Approved Optical Smoke and Heat Sensor Detector Battery Type
Description:
AS-SHD331 is a household smoke and heat combined detectors, it's a device that senses smoke or temperature, typically as an indicator of fire. It is designed to help promote household safety, warning people of fire by a local audible or visual alarm from the detector itself. Installed and maintained a smoke detector play a vital role in reducing fire deaths and injuries. If there is a fire in your home, smoke spreads fast and you need smoke alarms to give you time to get out.
Features:
♦ Power supply: 9V battery
♦ Standby current:≤20uA
♦ Alarm Current: ≤50mA
♦ Alarm decibel: 85dB
♦ Smoke sensitivity: 0.15±0.03dB/m
♦ Alarm temperature: 57ºC
♦ With test button
♦ Detecting area: 40-60m²
♦ Optical smoke chamber high stability
♦ Ceiling mounted easy installation
♦ Wireless output 315MHz or 433MHz optional
♦ Operating Temperature: -10ºC to +50ºC
♦ Operating Humidity: ≤95%RH
♦ Application: home, office, apartment, hotel, bank etc.
Related Models:
* AS-SSD118: 433/315/868M cutomized battery smoke detector
* AS-BHD102: sensing temperature battery heat detector
* AS-SSD331: 9v battery operated smoke alarm detector
* AS-SSD221Y: 10 years lifespan battery smoke detector
* AS-SCO601M: smoke and carbon monoxide combined detector
* AS-IGD511: 220V combusible gas detector with solenoid valve
Factory Corners
Workshop and Warehouse
Mass Production
Package and Shipment
Certificates:
Who We Are ?
ANSORL TECHNOLOGY LTD is a building automatic control system and fire alarm system provider. Over the past years, We have always been dedicated to serving the diverse needs of our customers. Although we started out as a tiny engineering and manufacturing company in China and have grown into a global player in the international safety market, Ansorl continues to work hard to earn your trust and retain your confidence in our product line.
We focuse on providing advanced buidling automatic control system and fire alarm, fire protection system. Ansorl works harder to tailor our solutions to meet your needs.
Ansorl is an ISO 9001:2008 certified manufacturer with number of testing facilities. We are also planning to expand our manufacturing and testing facilities in China to ensure that our products and manufacturing practices continue to meet the highest standards.
We invite you to get to know Ansorl better. Experience the best fire alam technology and solution. We are convinced that you will find Ansorl superior to any other detector company in China. You'll see it in our facilities, in our people, and in the products that Ansorl makes. It's our uncommon commitment to excellence and quality, and to the automation and productivity of our customers.
What We Have ?
* Conventional and Addressable fire control panel* Smoke, heat, gas, flame, beam detector
* Manual call point and pull station
* Audio/visual alarm, strobe horn
* Standalone battery operated fire alarm detectors
* Explosion-proof and weather-proof fire alarm devices
* FM200/CO2 gas extinguishing control system
* Other fire safety products
Why Choose Us ?
* Prompt Response.* Standard Quality Control System.
* Sample & Customized Order Can Be Supported.
* Independant R&D / Manufacturing / Customer Service / Marketing Dept.
* Direct Control On Materials, Production Status, Quality Checking.
* Fast Delivery Time for Standard Products.
* State-of-the-art Technology and Models.
* Waranty Guarrentee.
FAQ:
Are you manufacturer ?
Yes, our factory has more than 10 years production management experience in fire alarm industry.
Do you provide samples ?
Yes, sample for quality test is understandable, tell us your interested models, we will prepare for your study.
How's your product quality ?
Our QC team responsible for the whole quality supervision during production and inspect the goods before shipment.
We've achieved the third party certificates ISO, CE, LPCB etc.
Where are your markets ?
Our customers are from worldwide, covering south/east Asia, south/east Europe, middle east, central/south America and the whole Africa etc.
What kind of shipping methods you choose ?
By international express (DHL, FedEx, UPS, TNT, EMS etc).
By train / by truck / by air / by sea.
How long can I get the goods ?
Normally it takes 3-8 working days. For customized items or bulk orders, it takes more than 15 working days.
Do you provide warranty ?
We provide 12 months warranty, if any item to be found in quality defects, we will provide replacement or repair services.
Send us your inquiry and get a quote !
