Basic Info.
Model NO.
UN900
Principle of Operation
Non-Dispersive Infrared (Ndir)
Initialization Time
Capnogram Displayed in Less Than 20 Seconds
Color
Black, Blue, White
Power
5.0 VDC ±5%
Calibration
No Routine User Calibration Required
Data Interface
Compatible with Communication Protocol
Regulatory
Designed to Comply Yy0601 and ISO21647
OEM
Acceptable
Transport Package
Carton
Specification
146L x 67W x 30H (mm)
Trademark
OEM/ODM/Union Medical
Origin
China
HS Code
9018199000
Production Capacity
100000/Year
Product Description

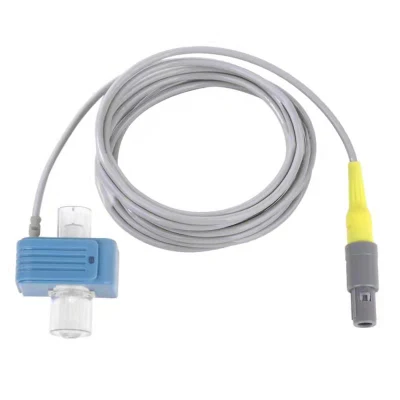

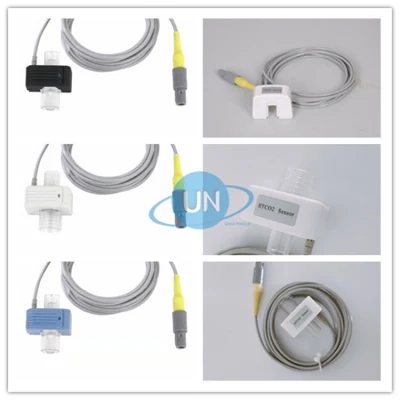

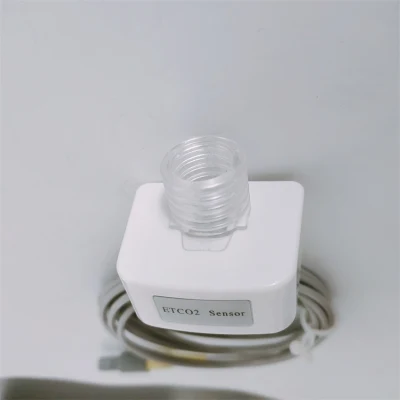

Portable Mainstream CO2 Sensor Module for Patient Monitor Compatible with Many Brands
Model: UN900
Capnography is the monitoring of the concentration or partial pressure of carbon dioxide (CO2) in the respiratory gases. Its main development has been as a monitoring tool for use during anesthesia and intensive care.
Mainstream ETCO2 module is the ideal capnography solution. It is plug-in and play features advanced technology for measuring instaneous concentration, end-tidal concentration, inspired concentration . The sensor CO2 respiration rate, CO2 CO2 . It resist the vapour better with patented
technology, make the measured result more accurate.
Application Field:
1.Monitoring the patient's respiratory status
2.Assists in determining when to intubate or extubate
3.Verification of ET tube placement
4.Alerts if accidental extubation occurs
5.Ventilator disconnect detection
6.Verification of ventilation during transport
| Transducer Type | Mainstream CO2 sensor(un 900) | Principle of Operation | Non-dispersive infrared (NDIR) |
| Initialization Time | Reaching full specifications within 2 minutes | Co2 Measure Range | 0 - 150 mmHg 0 - 19.7% 0 - 20kPa |
| Co2 Measure Resolution | 0.1mmHg | Co2 Accuracy | 0 - 40 mmHg ±2 mmHg 41 - 70 mmHg ±5% of reading 71 -100 mmHg ±8% of reading 101 -150 mmHg ±10% of reading |
| Respiratory Rate | Range: 3 - 150 BPM Accuracy: ±1 breath | Calibration | No routine user calibration required. The mainstream sensor an airway adapter zero is required when changing to a different airway adapter |
| Compensation | Barometer Pressure 450 - 850 mmHg. Operator selectable O2 , N2O, He compensation. | Temperature / Humidity | Operating: 0 to 40 , 10 to 90% RH Storage: -40 C to 70 C, <90% RH |
| Data Interface | Rs232, 19200 baud rate, standard N-8-1. Fully compatible with Respironics Co2 module's communication protocol | Regulatory | Designed to comply YY0601 and ISO21647 |
Main unit for 12 months, accessories for 6 months. All items are tested 3 times before shipping.
Outline dimension:
Size: 18.5*13.5*7cm
Weight: 350g
Applications:

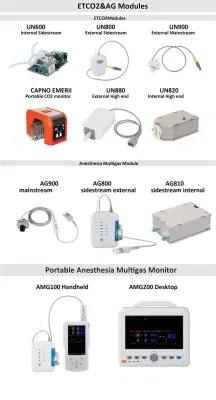

Other Product Lines:
According Products:
-Pulse oximeter/Vital Sign Monitor(handheld/fingertip)
-Patient Monitor
-ECG machine(Electrocardiograph)
-OEM Patient Monitoring Modules
-Infusion/Syringe Pump
-HFNC Machine and CPAP Machine
-Veterinary products
View more products, click here: https://un-medical.en.made-in-china.com/
Company Introduction:
Wuhan Union Medical Technology Co., Ltd, a company specializes in patient monitoring solutions, which started in 2013.
We can offer you a variety of module platforms to integrate into your monitoring system. We are dedicating in and supplying all kinds of OEM modules of patient monitoring system.
Meanwhile, we are selling patient monitor, ECG machine, pulse oximeter, handheld vital signs monitor, handheld ETCO2 monitor, wireless capnograph, anesthesia multigas monitor, accessories of patient monitor, infusion pump, syringe pump, AED, defibrillator, infusion pump, syringe pump, ultrasound, veterinary equipments, etc. Please feel free to contact us if you are interested.
We will always try our best to offer you the best product & service.
