Basic Info.
Model NO.
Mode Fiber Optic Cable1
Core
Single Core
Certification
CE, ISO9001
Sheath Material
PVC
Use
FTTH
Operationtemperature
-45cdegree~80cdegree
Sheathmaterial
Lzsh
Durability
10years
Transport Package
Wooden Drum + Carton
Trademark
OEM. ODM, Own Brand
Origin
Shenzhen China
HS Code
8536700000
Product Description

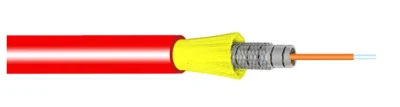

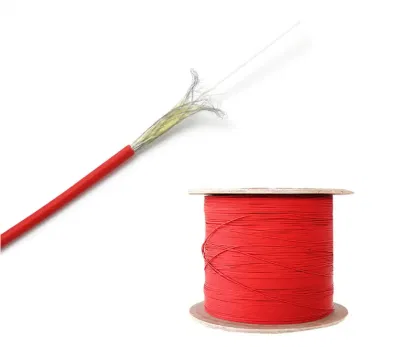

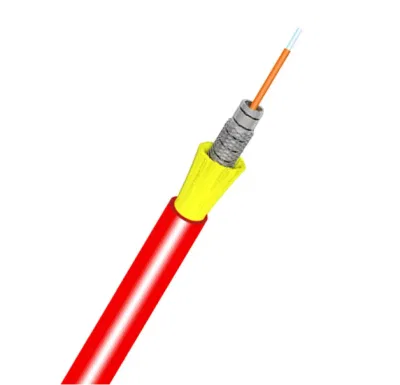

Distributed Temperature Sensing Fibre Optic Cable Flame Retardant Jacket Single Mode Fiber Optic Cable
Characteristics

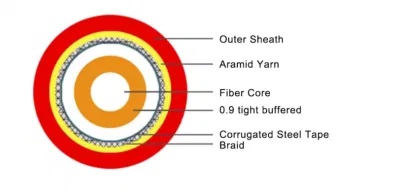

Armored layers such as stainless steel tube and tensile steel mesh protect the fiber from damage
faster temperature response speed
The outer sheath is a high-performance flame retardant material with excellent thermal conductivity, mechanical properties, waterproof performance and corrosion resistance.
Can resist the interference of weak electric environment
| Fiber count | 1,2 core |
| filling material | aramid yarn |
| outer diameter | 3.0mm |
| outer jacket | flame retardant PVC/LSZH |
| fiber type | 62.5/125;9/125 |
| attenuation | <3.0dB/km, <1.6dB/km(970nm), <0.7 dB/km(130nm) |
| Operation temperature range | -30 ºC to 90 ºC |
| Outer Sheath Insulation | 5000VDC |
| cable weight | 22kg/km |
| Life Span | ≥30 years |
| Span | 100m |
| Rated tensile strength (KN) | 0.2/10cm |
| Maximum allowable tensile(KN) | 0.4 /10cm |
| Crush resistance | Installation :200 (N/100mm) Operating :400N/100mm |
| bending Radius | 60mm(no pressure) 80mm(tensile) |
| Number of repeated bends | 500(50nm) |
Supply Ability
Supply Ability 10000 Piece/Pieces per Month
Company Profile
Packaging & delivery
Packaging Details 1pc/box
Port Shenzhen
Lead time:
Port Shenzhen
Lead time:
| Quantity(pieces) | 1 - 1000 | >1000 |
| Lead time (days) | 15 | To be negotiated |
