Product Description
DOG-2092 Industrial Online Dissolved Oxygen Meter
DOG-2092 has special price advantages due to its simplified functions on the premise of guaranteed performance.
The clear display, simple operation and high measuring performance provide it with high cost performance. It can be
widely used for continuous monitoring of the dissolved oxygen value of the solution in thermal power plants, chemical
fertilizer, metallurgy, environmental protection, pharmacy, biochemical engineering, foodstuff, running water and many

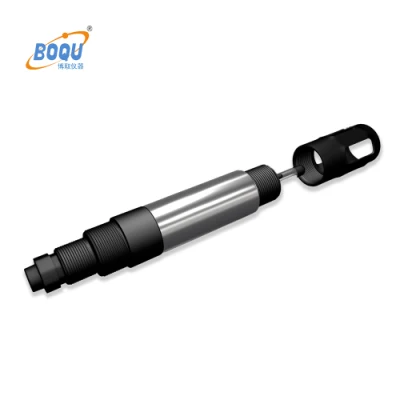

other industries. It can be equipped with DOG-209F Polarographic Electrode and can do ppm level measurement.
Features
Technical Indexes
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: We cann't offer the sample
Q: What is your terms of payment ?
A: 100% T/T in advance ,balance before shippment.
DOG-2092 has special price advantages due to its simplified functions on the premise of guaranteed performance.
The clear display, simple operation and high measuring performance provide it with high cost performance. It can be
widely used for continuous monitoring of the dissolved oxygen value of the solution in thermal power plants, chemical
fertilizer, metallurgy, environmental protection, pharmacy, biochemical engineering, foodstuff, running water and many
other industries. It can be equipped with DOG-209F Polarographic Electrode and can do ppm level measurement.
Features
| DOG-2092 is a precision instrument used for testing and control of dissolved oxygen. The instrument has all the |
| parameters for microcomputer storing, caluating and compensating of the related measured dissolved |
| oxygen values; DOG-2092 can set the relevant data, such as elevation and salinity. It is also featured by complete |
| functions, stable performance and simple operation. It is an ideal instrument in the field of the dissolved |
| oxygen test and control. |
| DOG-2092 adopts the backlit LCD display, with error indication. The instrument also owns the following features: automatic temperature compensation; isolated 4-20mA current output; the dual-relay control; high and |
| low points alarming instructions; power-down memory; no need back-up battery; data saved for more than a |
| decade. |
Technical Indexes
| 1. Measuring range: 0.00~1 9.99mg / L Saturation: 0.0~199.9% |
| 2. Resolution: 0. 01 mg/L 0.01% |
| 3 Accuracy: ±1.5%F.S |
| 4. Control range: 0.00~1 9.99mg/L 0.0~199.9% |
| 5. Temperature compensation: 0~60ºC |
| 6. Output signal: 4-20mA isolated protection output, double current output available, RS485 (optional) |
| 7. Output control mode: On/Off relay output contacts |
| 8. Relay load: Maximum: AC 230V 5A |
| Maximum: AC l l5V 10A |
| 9. Current output load: Allowable maximum load of 500Ω. |
| 10. On-ground voltage insulation Degree: minimum load of DC 500V |
| 11. Operating voltage: AC 220V l0%, 50/60Hz |
| 12. Dimensions: 96 × 96 × 115mm |
| 13. Dimension of the hole: 92 × 92mm |
| 14. Weight: 0.8 kg |
| 15. Instrument working conditions: |
| Ambient temperature: 5 - 35 ºC |
| Air relative humidity: ≤ 80% |
| Except for the earth magnetic field, there is no interference of other strong magnetic field around. |
