Basic Info.
Model NO.
RAY-LH376#
Core
Single-Core,Multi-Core, Double-Core
Certification
RoHS, CE, ISO9001, VDE, CCC
Brand
Raytek
Sheath Material
Customized
Type of Quartz Optical Fiber
Hcs/Silicon-Silicon
Diameter of Single Fiber (GM)
125/200/230/400/500/600/800,etc
Transmission Spec-on Initialization Time
200-2500nm
Numerical Apertpulse Width Shrinkage (Dd
0.22, 0.37,etc
Transport Package
1PCS Per Box
Specification
custom as per demand
Trademark
Raytek
Origin
China
HS Code
8536700000
Production Capacity
100, 000, 0PCS Per Year
Product Description
General Introduction:
Optical Fiber Patch Cord series covers a wide applying fileds. It refers to that connector plugs are installed at both ends of the optical cable to realize the active connection of the optical path; One end with a plug is called a pigtail. Optical fiber patch cord / cable is similar to coaxial cable, except that there is no mesh shielding layer. The center is a glass core for light propagation. In multimode fiber, the diameter of the core is 50 μ m~65 μ m. The diameter of the single-mode fiber core is 8 μ m~10 μ m. The core is surrounded by a glass envelope with a lower refractive index than the core to keep the optical fiber in the core. On the outside is a thin plastic jacket to protect the envelope.
According to different transmission media, optical fiber patch cords can be divided into common single-mode and multi-mode jumpers of silicon-based optical fiber, as well as other optical fiber jumpers with plastic as transmission media; According to the connector structure, it can be divided into FC jumper, SC jumper, St jumper, LC jumper, MTRJ jumper, MPO jumper, Mu jumper, SMA jumper, FDDI jumper, E2000 jumper, din4 jumper, D4 jumper and so on. Common optical fiber jumpers can also be divided into FC-FC, fc-sc, fc-lc, fc-st, SC-SC, sc-st, etc.
Single mode fiber: generally, the optical fiber jumper is represented by yellow, and the connector and protective sleeve are blue; Long transmission distance.
Multi mode fiber: generally, the optical fiber jumper is represented by orange or gray, and the connector and protective sleeve are beige or black; Short transmission distance.
Products Name:
Optical Fiber Patch Cords
Product Category:
Applications:
Basic Technical Data:
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Mexico, Brazil, Argentina,Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optical fiber products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
Optical Fiber Patch Cord series covers a wide applying fileds. It refers to that connector plugs are installed at both ends of the optical cable to realize the active connection of the optical path; One end with a plug is called a pigtail. Optical fiber patch cord / cable is similar to coaxial cable, except that there is no mesh shielding layer. The center is a glass core for light propagation. In multimode fiber, the diameter of the core is 50 μ m~65 μ m. The diameter of the single-mode fiber core is 8 μ m~10 μ m. The core is surrounded by a glass envelope with a lower refractive index than the core to keep the optical fiber in the core. On the outside is a thin plastic jacket to protect the envelope.
According to different transmission media, optical fiber patch cords can be divided into common single-mode and multi-mode jumpers of silicon-based optical fiber, as well as other optical fiber jumpers with plastic as transmission media; According to the connector structure, it can be divided into FC jumper, SC jumper, St jumper, LC jumper, MTRJ jumper, MPO jumper, Mu jumper, SMA jumper, FDDI jumper, E2000 jumper, din4 jumper, D4 jumper and so on. Common optical fiber jumpers can also be divided into FC-FC, fc-sc, fc-lc, fc-st, SC-SC, sc-st, etc.
Single mode fiber: generally, the optical fiber jumper is represented by yellow, and the connector and protective sleeve are blue; Long transmission distance.
Multi mode fiber: generally, the optical fiber jumper is represented by orange or gray, and the connector and protective sleeve are beige or black; Short transmission distance.
Products Name:
Optical Fiber Patch Cords
Product Category:
| Optical Fiber Patch Cord | 1). | Integrating Sphere fiber |
| 2). | Jewellery Detection Optical fiber | |
| 3). | Mobile Detection Optical fiber | |
| 4). | Spectrum Analysis Optical fiber | |
| 5). | Physical Therapy Instrument fiber | |
| 6). | D80 fiber Patch Cord | |
| 7). | Environmental Monitoring Fiber | |
| 8). | Range Measurement Fiber | |
| 9). | Temperature Measuring Optical Fiber | |
| 10). | Dental Fiber | |
| 11). | Homogenized Fiber | |
| 12). | Beauty Fiber Assembly | |
| 13). | Eye Optical Fiber |
Applications:

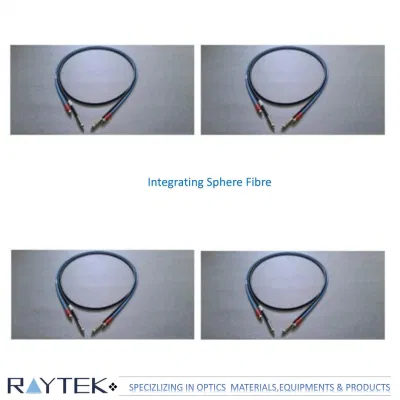

| 1). | Integrating Sphere fiber | Used for import/export of integrating sphere. Can be customized according to the requirements of various transmission wavelength and connector. |

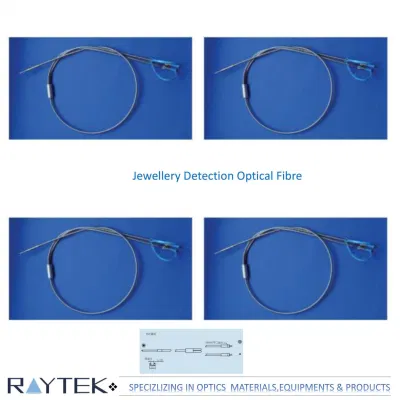

| 2). | Jewellery Detection Optical fiber | The spectrometer can measure the light reflected by the surface of the object throi|gh the fiber. The sunlight in the seven-color light is the part of the naked eye (visible light), but if the decomposition of the sun by the spectrometer, according to the wavelength, visible light only a small range of the spectrum, the rest are indecent resolution of the spectrum, such as infrared., Ultraviolet rays, X-ra\s, and the like. Through the spectrometer to capture the optical information to the photographic film development, or computerized automatic display of numerical instruments display and analysis^ so as to know what kind of dements in the article. |

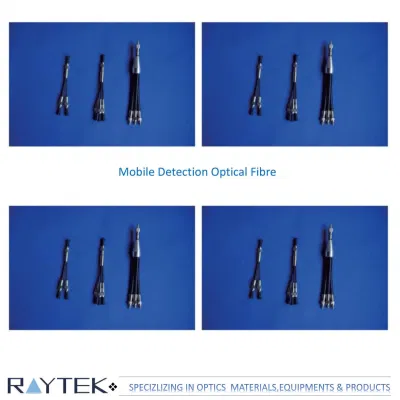

| 3). | Mobile Detection Optical fiber | Used in mobile phone production line on-line detection of the phone,s screen, which can be customized according to the requirements of different forms, different branch number. |
| 4). | Spectrum Analysis Optical fiber | Spectrum analysis optical fiber is mainly used m spectral machine, packaging machine, temperature probe. Mobile phone testing. Analytical Spectral Devices, all kinds of integrating sphere and other testing equipments. |
| 5). | Physical Therapy Instrument fiber | The physical therapy instrument fiber takes use of optical fiber-transmitted laser to cariy out the irradiation and physical therapy for tissue surhice. It is not only suitalde for the treatment of non-specific neuralgia, muscle pain and joint pain caused by external vertebral canal factors, but also applicaUeto the irradiation on human body surface to achieve anti-i nfl ammator)r, anti-infection and repairing effects. |

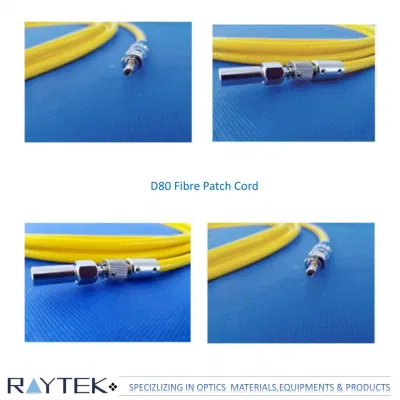

| 6). | D80 fiber Patch Cord | The D8o fiber has precision grinding end race^ large core diameter, air gap and sappniie D8o connector. It can transfer high power laser to 6ooW by single fiber. Transmission can reach more than 90% stably. The connector adopts no ghie technolo^. which can improve the heat dissipation effect and senice life, and meet the requirements of hi^i power transmission such as laser welding and cutting. Main Application: a. High power laser transmission; b. Laser welding and cutting c. Laser marking d. Atmospheric spectrum measurement e. Laser cleaning. |

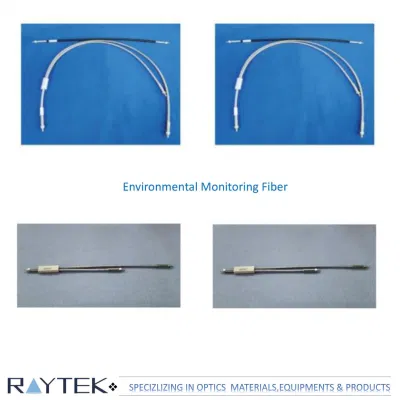

| 7). | Environmental Monitoring Fiber | Sensing optical fiber is used on rangefinder, total station and other optical measuring instmments. Our sensing fiber has been unanimously praised by the leading manufacturers of rangefinder/total station in China. Now the major manubcturers in China purchase our product for their optical measuring instruments |
| 8). | Range Measurement Fiber | |
| 9). | Temperature Measuring Optical Fiber | |
| 10). | Dental Fiber | Used to measure the temperature of the high-tempera tune object, end heat resistance can up to 1000 C. Can measured object cner 2000 C on non*touching mode. |
| 11). | Homogenized Fiber | The homogenized fiber is non-circular fiber(square) with homogenized effection by disturbed model. Input laser with ganussian distribution can get flat-top distribution output laser through the square fiber. Meanwhile the connected effciency is higher than normal fiber. |
| 12). | Beauty Fiber Assembly | Beauty fiber is produced by producing high-energ);focused precision with a certain penetration of monochiumatic light the nde of human tissue in the local high heat to achieve the purpose of removing or destroying the target tissue, a vaiiety of different wavelengths of pulse laser treatment A varietj7 of vascular skin diseases and pigmentation, such as Ota nevus, red stains, freckles, age spots, tdangiectasia and so on |
| 13). | Eye Optical Fiber | This optical fiber is used for eye surgery with high power laser light source. Except for high power laser transmission as normal laser optical fiber. This fiber has a custom handle in the end for operation convenience. This fiber can well meet the needs of eye laser surgery. |
Basic Technical Data:
| Type of quartz optical fiber | HCS/Silicon-silicon |
| Diameter of single fiber (gm) | 200/400/600/800,etc |
| Length (m) | Customize |
| Transmission Spectrum (nm) | 200-1100 350-1700 400-2500 Customized |
| Numerical Aperture (NA.) | 0.22 0.37 Customized |
| Transmittance of Single Fiber | >=90%(632.8nm) |
| Transmittance of Bundle | >=65%(632.8nm) |
| Branch Structures | 1-in-1-Out 1-in-Multiple-Out Multiple-in-1-Out multiple-in-Multiple-Out or other customized structures |
| Output Form | Circle/Square/Line or other customize form |
| End Structure | SMA905/SMA906/FC/ST and others SMA905/SMA906/FC/ST and other customize structure |
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Mexico, Brazil, Argentina,Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optical fiber products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
