Basic Info.
Model NO.
AS-SD102
Types of Smoke Detectors
Photoelectric Smoke Style
Infrared Sensor Installation
Ceiling
Product Name
Smoke Detector Fire Alarm
Operating Voltage
9-28VDC
Standby Current
≤60uA
Alarm Current
≤30mA
Indicator
Two LEDs
Wiring
2 Wires
Standard
EN54-7
Output
Remote LED Indicator
Accessory
Dust Proof Cover
Material
Plastic Housing and Metal Parts
Dimention
About 100mm X 50mm
Operating Temperature
-10 to +55 Celsius Degree
Operating Humidity
≤95% No Condensing
Usage
Fire Detection, Smoke Detector, Fire Alarm System
Application
Office, Factory, Warehouse, Apartment, Hotel, Bank
Transport Package
Standard Export Cartons
Trademark
Ansorl
Origin
China
HS Code
8531100000
Production Capacity
50000 Pieces Per Month
Product Description

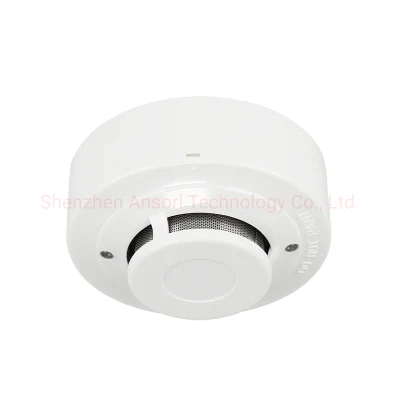

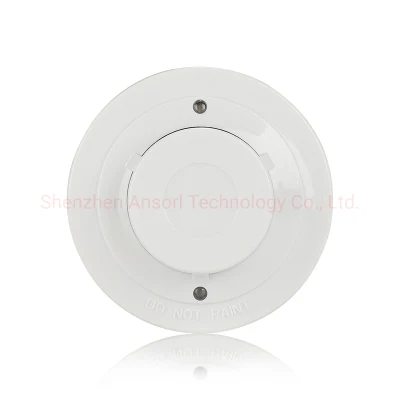

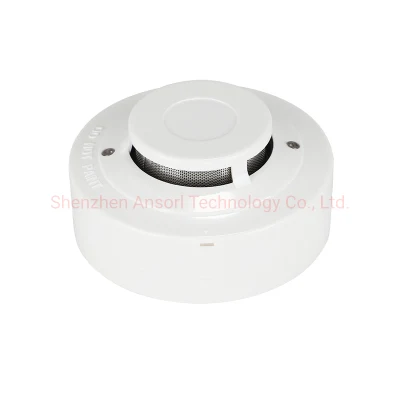

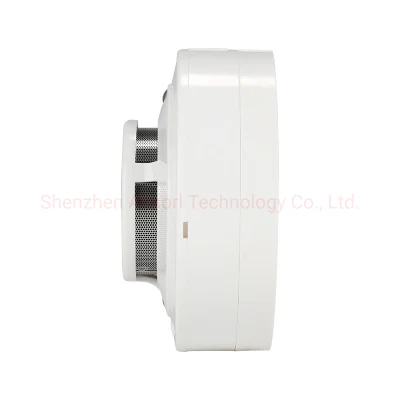

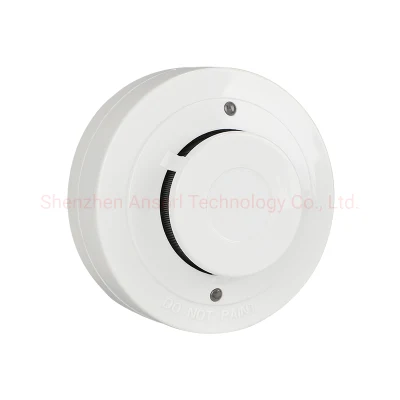

Factory Optical Fire Security Smoke Sensor Detector Fire Alarm Systems
Description:
The detectors are photo-electronic detector uses a state of-the-art optical sensing chamber.
This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.
Two LEDs on each detector provide local 360° visible alarm indication.
They flash every six seconds indicating that power is applied and the detector is working properly.
The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit.
The alarm can be reset only by a momentary power interruption.
The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
Parameters:
| Product Name | Smoke Detector Fire Alarm |
| Operating Voltage | 9-28VDC |
| Standby Current | ≤60uA |
| Alarm Current | ≤30mA |
| Indicator | Two LEDs |
| Wiring | 2 Wires |
| Standard | EN54-7 |
| Output | Remote LED Indicator |
| Accessory | Dust Proof Cover |
| Material | Plastic housing and metal parts |
| Dimention | About 100mm x 50mm |
| Operating Temperature | -10 to +55 celsius degree |
| Operating Humidity | ≤95% no condensing |
| Usage | Fire detection, smoke detector, fire alarm system |
| Application | Office, factory, warehouse, apartment, hotel, bank |
Related Models:
* AS-HD105: 2 Wire Conventional Heat Detector
* AS-SD202: 4 Wire Conventional Smoke Detector
* AS-SHD109: Conventional Smoke and Heat Detector
* AS-CGD501: Conventional Combusible Gas Detector
* AS-UFD: Conventional Ultrovialet Flame Detector
* AS-IRBD: Reflective Infrared Beam Smoke Detector
* AS-SSD101: 9V Battery Operated Smoke Detector
* AS-SSD221Y: 10-Year 3V Battery Operated Smoke Detector
Pictures:
Packing:
Factory Corners
Workshop and Warehouse
Mass Production
Package and Shipment
Certificates:
Who We Are ?
ANSORL TECHNOLOGY LTD is a building automatic control system and fire alarm system provider. Over the past years, We have always been dedicated to serving the diverse needs of our customers. Although we started out as a tiny engineering and manufacturing company in China and have grown into a global player in the international safety market, Ansorl continues to work hard to earn your trust and retain your confidence in our product line.
We focuse on providing advanced buidling automatic control system and fire alarm, fire protection system. Ansorl works harder to tailor our solutions to meet your needs.
Ansorl is an ISO 9001:2008 certified manufacturer with number of testing facilities. We are also planning to expand our manufacturing and testing facilities in China to ensure that our products and manufacturing practices continue to meet the highest standards.
We invite you to get to know Ansorl better. Experience the best fire alam technology and solution. We are convinced that you will find Ansorl superior to any other detector company in China. You'll see it in our facilities, in our people, and in the products that Ansorl makes. It's our uncommon commitment to excellence and quality, and to the automation and productivity of our customers.
What We Have ?
* Conventional and Addressable fire control panel* Smoke, heat, gas, flame, beam detector
* Manual call point and pull station
* Audio/visual alarm, strobe horn
* Standalone battery operated fire alarm detectors
* Explosion-proof and weather-proof fire alarm devices
* FM200/CO2 gas extinguishing control system
* Other fire safety products
Why Choose Us ?
* Prompt Response.* Standard Quality Control System.
* Sample & Customized Order Can Be Supported.
* Independant R&D / Manufacturing / Customer Service / Marketing Dept.
* Direct Control On Materials, Production Status, Quality Checking.
* Fast Delivery Time for Standard Products.
* State-of-the-art Technology and Models.
* Waranty Guarrentee.
FAQ:
Are you manufacturer ?
Yes, our associated factory has more than 10 years production management xperience in fire alarm industry.
Do you provide samples ?
Yes, sample for quality test is understandable, tell us your interested models, we will prepare for your study.
How's your product quality ?
Our QC team responsible for the whole quality supervision during production and inspect the goods before shipment.
We've achieved the third party certificates ISO, CE, LPCB etc.
Where are your markets ?
Our customers are from worldwide, covering south/east Asia, south/east Europe, middle east, central/south America and the whole Africa etc.
What kind of shipping methods you choose ?
By international express (DHL, FedEx, UPS, TNT, EMS etc).
By train / by truck / by air / by sea.
How long can I get the goods ?
Normally it takes 3-8 working days. For customized items or bulk orders, it takes more than 15 working days.
Do you provide warranty ?
We provide 12 months warranty, if any item to be found in quality defects, we will provide replacement or repair services.
