Basic Info.
Model NO.
FC-2100
Material
Metal
Feature
Conductor
IP Rating
IP65
Certification
ISO
Customized
Customized
Power Supply
12-24VDC
Output
NPN, PNP
Slot
2mm, 2.5mm, 6mm
Warranty Time
3 Years
Transport Package
White Box
Specification
240g
Trademark
F&C
Origin
China
Production Capacity
50000PCS/Month
Packaging & Delivery
Package Size
20.00cm * 15.00cm * 15.00cm
Package Gross Weight
0.500kg
Product Description

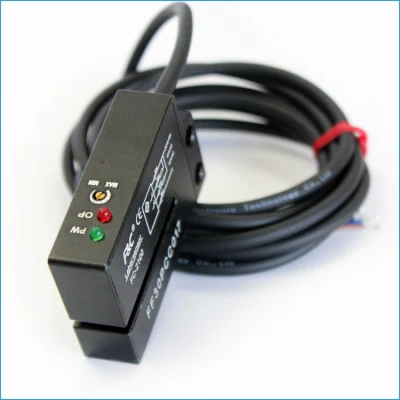

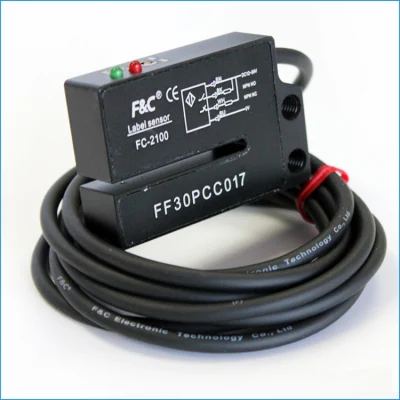

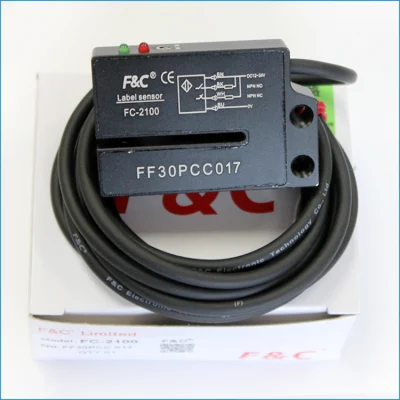

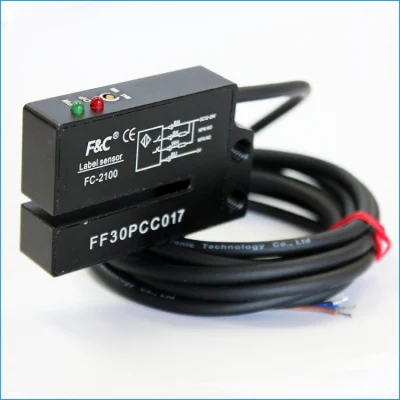

F&C Universal Optical Label Sensor for packing machine
Why Choose F&C sensor?
(1) 23+ years manufacture and 10+ years OEM service sensor experience.(2) 4000+ models Sensors
(3) Long service time, 8+ years
(4) 18 months years warranty time
(5)Fast delivery time. Most delivery within 1 days (Stocks)
(6) IP67 protection grade
(7) CE, RoHS certification
| Product | Packing Machine Label Sensor |
| Model | FC-2100 |
| Output type | NPN NO NC |
| Detection distance | 2mm |
| Accuracy & repeat | 0.2mm |
| Operating voltage | DC12-24V±10% |
| Current consumption | ≤25mA |
| Load current | 100mA Max at DC ;24V |
| Protection circuit | Reverse polarity protection and short circuit protection |
| Response time | 0.1ms |
| Frequency | 5Khz |
| Standard & Sensitivity | Key smart regulation |
| Indicator | red: Balance benshmark and sensitivity level; Green: Signal output |
| Ambient temperature | 0-60 degree |
| Connector | M8 connector 4pin |
| Meterial | Aluminium metal sheet |
| Wiring method | φ4mm×2M/5-wires |
Others Slotted Optical label sensors
| Model | Theory | Slot width | Detection Label |
| FC-2100 | Optical Label sensor | 2mm | adhesive sticker label opaque labels |
| FC-2107 | Optical Label sensor | 5mm | adhesive sticker label opaque labels |
| FC-2200 | Optical Label sensor | 6mm | adhesive sticker label opaque labels |
| FC-2600 | Optical Label sensor | 2mm | adhesive sticker label opaque labels |
| FC-4100 | Capacitive Label sensor | 0.8mm | both non-transparent and transparent labels |
| FC-2300 | Ultrsonic label sensor | 2mm | specially for Metal Labels |
F&C Sensor products range:
(1)proximity sensor 1000+ models,
(2)Fiber amplifier and Optic Sensor 3000+ models,
(3)Photoelectric Sensor 500+ models
(4)Magnetic Switch 100+ models,
(5)Lable sensors 40+ models
