Basic Info.
Model NO.
MOT200-O2
Type
Electrochemical Gas Analyzer
Analog Digital Output
4-20mA Output(0-5V,0-10V Optional)
Material
Aluminum,Explosion and Corrosion Proof
Operating Pressure
0-200kpa
Display
LCD Displayed
IP Rating
IP 66
Explosion Proof Sign
Exdll CT4 (Ia)
Power
24VDC
Modbus Digital Output
RS485 Output
Relay Output
2-3 Relays Output
Sampling
Diffusion
Transport Package
Standard Carton Packaging 26*21*14cm
Specification
Product size: 20*17*8cm
Trademark
Korno or customized
Origin
China
HS Code
9027100090
Production Capacity
10000pieces/Month
Product Description

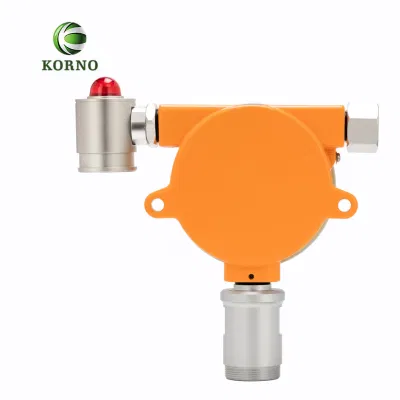

Fixed Ce certificate Oxygen Gas Detector O2 Gas Meter with Alarm
>>> Key Feature
1)2.4 inches technical grade display with a pixel up to 320*240
2)Three concentration units are available PPM,%VOL,mg/m3
3)Variety signal output model :
4-20mA signal :Standard 16bit 4-20mA output chip, transmission distance 1Km
RS485 signal: Standard MODBUS RTU protocol, transmission distance 2Km
2 relays output: Concentration alarm value adjustable, there are high alarm and low alarm respectively 0-5V,0-10V output(optional)
4) Variety signal transmission are available :3-4 core cable,Optical fiber network,Network cable,3G transmission,Wireless transmission,Video transmission
5).All software automatic calibration, sensor up to 6 level target calibration,ensure the accuracy and linearity of the full scale
6) Chinese and English operation model are available,user friendly ,four buttons to operation
7)Following function are optional:Temperature,Humidity sensor,Audible and visual alarm
>>> Specifications

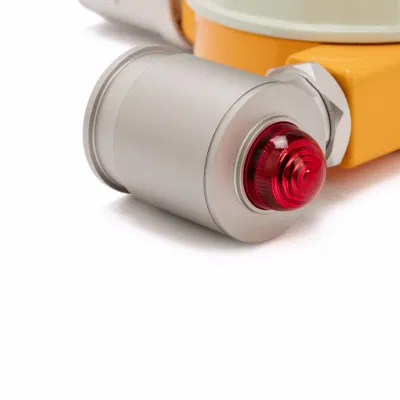

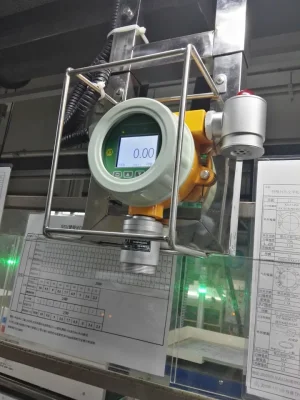

>>> Details
>>>RS485 Connection Mode
>>> Company Information
Shenzhen Korno Import& Export Co.,Ltd,is one of the top gas detector manufacturer in China,with more than 10 years research and production experience. Our products mainly include handle gas detector,Portable gas detector,Online gas detector,Controller,Gas pretreatment System etc.
The company has advanced production equipment and testing instruments, excellent marketing team and partners both at home and abroad, perfect management of the product market development and product after-sales service. In addition, with the powerful and professional R&D team, advanced and perfect concept of sales service made the products of our company a high reputation and market share both at home and abroad.
>>> Certificates
>>> Our service
1. All products and accessories have been 100% tested before shipping.
2. We provide 12-Month warranty for non-deliberate damage.
3. OEM & ODM are welcomed~
>>> Key Feature
1)2.4 inches technical grade display with a pixel up to 320*240
2)Three concentration units are available PPM,%VOL,mg/m3
3)Variety signal output model :
4-20mA signal :Standard 16bit 4-20mA output chip, transmission distance 1Km
RS485 signal: Standard MODBUS RTU protocol, transmission distance 2Km
2 relays output: Concentration alarm value adjustable, there are high alarm and low alarm respectively 0-5V,0-10V output(optional)
4) Variety signal transmission are available :3-4 core cable,Optical fiber network,Network cable,3G transmission,Wireless transmission,Video transmission
5).All software automatic calibration, sensor up to 6 level target calibration,ensure the accuracy and linearity of the full scale
6) Chinese and English operation model are available,user friendly ,four buttons to operation
7)Following function are optional:Temperature,Humidity sensor,Audible and visual alarm
>>> Specifications
| Product Type: | Online,Oxygen (O2) | |||
| Sensor: | Electrochemical gas sensor | |||
| Detection Pattern: | Diffusion,pipeline(screw thread size:M40*1.5MM),Circulation,Pumping is available,Online detection | |||
| Detection Range: | 0-30%vol, 0-100%vol can be optional | |||
| Resolution: | 0.01%VOL | |||
| Detection Accuracy: | ≤±3%F.S | Linearity error: | ≤±2%F.S | |
| Reaction Time: | ≤20S(T90) | Zero drift: | ≤±2%(F.S/Year) | |
| Recovery Time: | ≤20S | Repeatability: | ≤±2%F.S | |
| Relay output: | Two relays output,Contact rating:24VDC 3A/220VAC 3A | |||
| Explosion Proof Sign: | ExdII CT6,Certification Number of Explosion-proof :CNEx10.1807 | |||
| Outputs: | Analog:4-20mA signal,0-5V,0-10V Modbus: RS485 signal Pulse signal or TCP/IP signal,optional | |||
| Alarm Setting: | Two alarm set points Alarm mode optional: Low alarm-High alarm / High alarm-High alarm / Low alarm-Low alarm | |||
| Controllers: | Compatible with DN3000/DN9000,as well as most DCS/PLC systems | |||
| IP Rating : | IP65 | |||
| Material: | Aluminum ,Explosion and corrosion proof | Connection: | 3/4″NPT,1/2″NPT | |

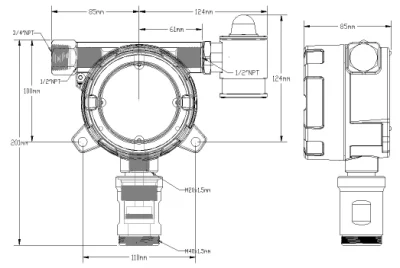

| Dimensions: | 200×160×80mm(L×W×H) | Weight: | 1.5 Kg(Net weight) | |
| Operating Temperature: | -30 ~ 60ºC | Relative Humidity: | ≤90%RH,Non-condensing | |
| Operating Pressure: | 0 ~ 200Kpa | Operating Voltage: | 24VDC(9~30VDC) | |
| Standard Accessories: | -User manual -Certification -Calibration cover | |||
| Optional Accessories: | -hose(5*8mm),drying tube,water separator or pumping pump -infrared remote control -temperature and humidity sensor,SMS alarm,3G module or wireless transmission module | |||
>>> Details
>>>RS485 Connection Mode
>>> Company Information
Shenzhen Korno Import& Export Co.,Ltd,is one of the top gas detector manufacturer in China,with more than 10 years research and production experience. Our products mainly include handle gas detector,Portable gas detector,Online gas detector,Controller,Gas pretreatment System etc.
The company has advanced production equipment and testing instruments, excellent marketing team and partners both at home and abroad, perfect management of the product market development and product after-sales service. In addition, with the powerful and professional R&D team, advanced and perfect concept of sales service made the products of our company a high reputation and market share both at home and abroad.
>>> Certificates
>>> Our service
1. All products and accessories have been 100% tested before shipping.
2. We provide 12-Month warranty for non-deliberate damage.
3. OEM & ODM are welcomed~
