Product Description

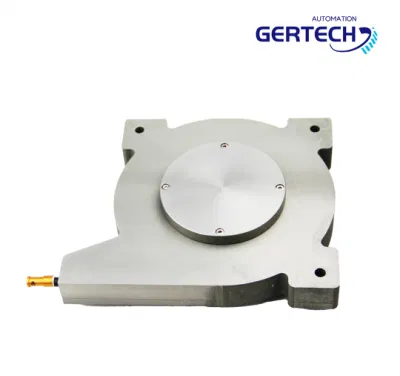

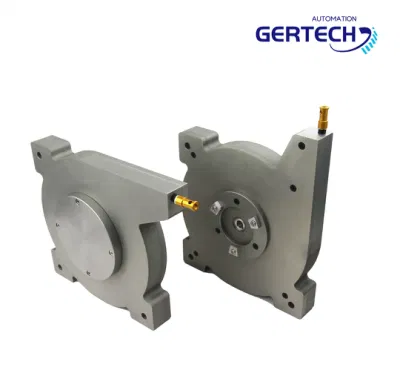

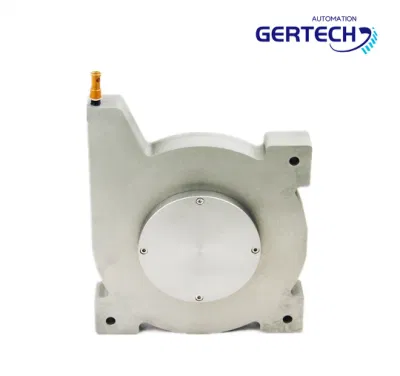

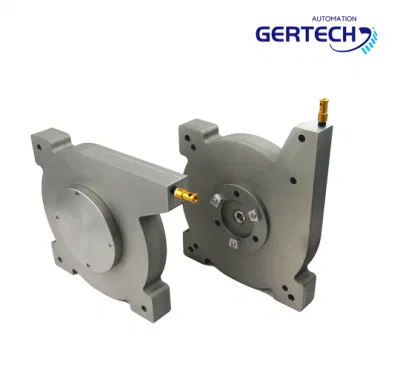

Draw Wire Encoder
Draw wire sensor measures linear movement and displacement using a highly flexible steel cable. The cable drum is attached to the sensor element which provides a proportional output signal based on the measured distance. Our draw wire sensors have compact design with easy and flexible mounting for integration into machinery. They can also be easily customized to fit in high volume applications in OEM.Our range of draw wire sensors offer quasi-infinite resolution with maximum measurement range of up to 50m. They provide long-term reliability and operational stability even under harsh ambient environment as they are manufactured from high quality components. Users can choose between analog or digital output depending on their measuring requirements.
Measurement Range: 0-15000mm / 0-20000mm; ;
Output: Analog-0-10v, 4-20mA;Incremental:NPN/PNP open collector, Push pull, Line Driver; Absolute:Biss, SSI, Modbus, CANopen, Profibus-DP, Profinet, EtherCAT, Parallel etc.
GI-D200 Series
Size: 252mm x 252mm x 190mm / 300mm x 300mm x 220mm ;
Measurement Range: 0-15000mm / 0-20000mm; ;
Supply Voltage:5V,5-24V,24V;
Output Format: Analog-0-10v, 4-20mA;
Incremental:NPN/PNP open collector, Push pull, Line Driver;
Absolute:Biss, SSI, Modbus, CANopen, Profibus-DP, Profinet, EtherCAT, Parallel etc.
Widely used in various fields of automatic control and measurement system,such as machinery manufacturing, shipping, textile, printing, aviation, industry Testing machine, elevator, etc.
- Very compact design compared to the measuring range
- Telescopic measurement principle
- Very robust sensors
- Measuring wire can be deflected using deflection pulleys
| Product characteristics | ||
| Size: | 252mm x 252mm x 190mm / 300mm x 300mm x 220mm; | |
| Measurement Range: | 0-15000mm / 0-20000mm; | |
| Electrical Data | ||
| Output Format: | Analog-0-10v, 4-20mA; Incremental:NPN/PNP open collector, Push pull, Line Driver; Absolute:Biss, SSI, Modbus, CANopen, Profibus-DP, Profinet, EtherCAT, Parallel etc. | |
| Insulation resistance | Min 1000Ω | |
| Power | 2W | |
| Supply Voltage: | 5v,5-24v,24v | |
| Mechanical Data | ||
| Accuracy | 0.02% | |
| Linear Tolerance | ±0.1% | |
| Wire Rope Dia. | 1.2mm | |
| Pull | 5N | |
| Pulling Speed | Max.100mm/s | |
| Working Life | Min.50000h | |
| Case Material | Metal | |
| Cable Length | 1m 2m or as per requested | |
| Environment Data | ||
| Working Temp. | -25~80ºC | |
| Storage Temp. | -30~80ºC | |
| Protection Grade | IP65 | |
| Dimensions & Connection Lead |
Packaging & Delivery
Leading Time: Within a week after full payment by DHL.
CERTIFICATES
Gertech Automation Technology Co., Ltd.
GERTECH is an technical enterprise Located in Weihai City ShanDong Province, China, has been providing Professional Industrial Automation Sensors Solutions for hundreds of enterprises all over the world since 2004. We offer the world's broadest range of encoders for motion feedback control. For 17 years, Gertech have been providing innovative, customized system solutions for virtually any heavy-duty, industrial, servo- or light-duty application,and is committed to our people, customers and community and strives for excellence in safety, quality, delivery and customer service.
Gertech Manufactures and supplies safety systems for the door and gate market. The product portfolio includes optical and pneumatic sensing edges, bumpers, and photo-eye sensors which meet international standards for safety devices. These products have applications in commercial, bus, and train doors as well as production machines.
Our Main Products: A. Incremental Encoder; B. Programmable Incremental Encoder; C. Single-turn and multi-turn Absolute Encoder with Parallel, SSI, Modbus, Profibus, Canopen, Profinet, DeviceNet and EtherCaAT interfaceS; D. Draw Wire Encoder; E. Manual Pulse Generator; F. Optical Encoder Kit; G. Servo motor encoder;
Certificates: CE,ROHS,ISO9001,KC;
Gertech Sensors are widely applied in the textile machinery, hoisting cranes, CNC machine, experimental machine, satellite communication, electric cars, water conservancy project, nuclear power equipment, High-speed railway, mobile equipment, wind power generation, packaging and printing machine, lifting equipment, aeronautical and space industry, Iron and steel reinforcement manufacturing equipment, port machinery, health communications and many other fields in advanced manufacturing industries, automatic assembly line and so on.
Note:
1.Adopt elastic soft connection shall be applied between encoder shaft and output shaft of user end to avoid damage of encoder shaft system due to serial movement and run out of user shaft.
2.Please pay attention to the allowable axle load during installation.
3.Make Sure that the difference Between Axial Degree of encoder shaft and user output shaft shall be no more than 0.20mm, and the deviation angle with axis shall be less than 1.5 °.
4.Try to avoid knocking and falling collision during installation;
5.Do not connect the power line and the ground wire in reverse.
6.The GND wire shall be as thick as possible, generally larger than φ 3.
7.Output lines of encoder shall not be overlapped with each other to avoid damaging output circuit.
8.Signal line of encoder shall not be connected to DC power supply or AC current to avoid damaging output circuit.
9.The motor and other equipment connected to the encoder shall be well grounded without static electricity.
10.Shielded cable shall be used for wiring.
11.Before starting the machine, carefully check whether the wiring is correct.
12.During long-distance transmission, the signal attenuation factor shall be considered, and the output mode with low output impedance and strong anti-interference ability shall be selected.
13.Avoid using in strong electromagnetic wave environment.
