Basic Info.
Model NO.

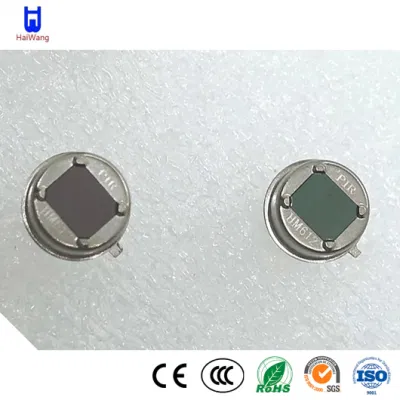

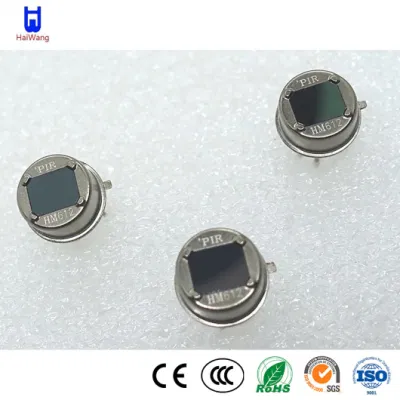

HM612 Digital Intelligent PIR Sensor
Certification
RoHS
Customized
Customized
Model Number
Hm612 Digital Intelligent PIR Sensor
Theory
Pyroelectric Infrared Radial Sensor
Output
Digital Sensor
Voltage - Supply
2~15V
Output Type
Balanced Differential Output
Mounting Type
Wall or Ceiling
Resolution (Bits)
Na
Measuring Range
3-20m
Resolution
0.01%
Size / Dimension
3*4mm
Sensitivity (Mv/G)
3300V/W
Current - Output
10mA
Power - Rated
65mA
Application
PIR LED Detector
Window Size
4.2*5.2mm
Transport Package
1000 Pieces in a PVC Bag
Specification
on-demand customized
Trademark
Haiwang(HW)
Origin
Guangdong, China
Production Capacity
10000 Pieces Per Week
Product Description
Product Introduction
PIR Motion sensor detects infrared radiation on the basis of the characteristic that the polarization of pyroelectric material changes with temperature.
Dual compensated sensing elements are applied to suppress the interference resulting from temperature variation with the EMI components. As a result, the operating stability of the sensor is greatly improved.
The PIR Sensor is widely used in security systems, burglar alarms, visitor acknowledgment, light switch control, intellectualized toy, etc.
The pyroelectric infrared sensor detects infrared radiation on the basis of the characteristic that the polarization of pyroelectric material changes with temperature.
Application: Sensor light / light switch control / intellectualized toy / security systems, burglar alarms / IA Intelligence Appliance, visitor acknowledgment
