Product Description

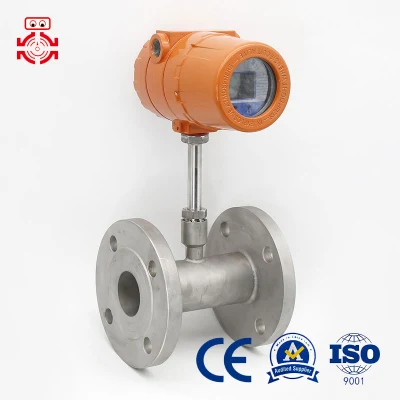

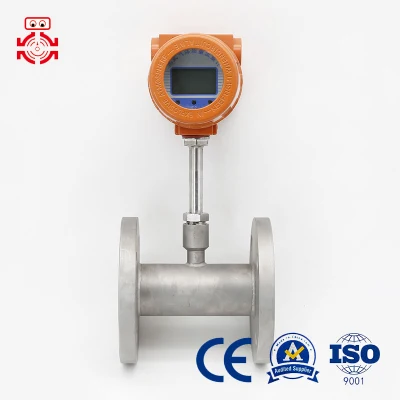

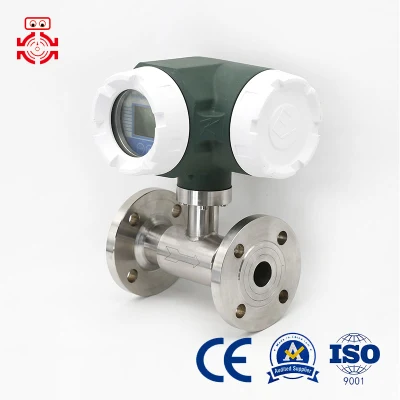

High accuracy 4-20mA output oxygen measurement thermal gas mass flowmeter
Product Features :
1.Real mass flow meter, no need for temperature and pressure compensation for gas flow measurement, convenient and accurate measurement.
2.Wide range ratio:1:1000,flow rate as high as 120Nm/s and as low as 0.1Nm/s.
3.Easy to install and maintain. Non-stop production installation and maintenance can be achieved where field conditions permit. (requires special customization)
4.Insensitive to small particles such as dust, suitable for all kinds of single or mixed gas measurement .
Technical Parameter:
Multiple types:
Selection table:
1.Real mass flow meter, no need for temperature and pressure compensation for gas flow measurement, convenient and accurate measurement.
2.Wide range ratio:1:1000,flow rate as high as 120Nm/s and as low as 0.1Nm/s.
3.Easy to install and maintain. Non-stop production installation and maintenance can be achieved where field conditions permit. (requires special customization)
4.Insensitive to small particles such as dust, suitable for all kinds of single or mixed gas measurement .
Technical Parameter:
| Fluid | gas without water molecules (except acetylene) |
| Velocity range | 0~60m/s |
| Accuracy | Reading±1%,full range±0.5% |
| Repeatability | full range0.2% |
| Temperature | Environmental conditions:-20ºC~70ºC;Medium temperature:-20ºC~120ºC or -20ºC~350ºC |
| Power | 24VDC/220VAC |
| Output | 4~20mA,pulse |
| Response time | ≤1s |
| temperature coefficient | 0.05%/ºC |
| Communication interface | serial port output RS485,HART |
| Screen content | quantity of heat,flow for short period;total flow |
| Pressure | ≤4.2MPa |
| connection | locking device/ball valve, flanged joint,Flange mounting |
| Explosion proof grade | Exd II CT4 |
| Ingress protection | Sensor IP67;transmitter IP65 |
| Alarm point | Relay dry contact output, can choose the upper limit single alarm or lower limit double alarm |
| Sensor diameter | 3mm/4mm/5mm |
| Probe diameter | 18mm |
| Sensor texture | 1Cr18Ni9Ti;304L;hastelloy C;Ta |
| Probe texture | 1Cr18Ni9Ti;304L;hastelloy C;Ta |
| Shell texture | Dangerous areas to install shell for powder coated aluminum castings |
| Electrical interface | M20X1.5 |
| Pressure loss | Pipe diameter greater than DN80 can be ignored |
Selection table:
| KTGMFM | THERMAL GAS MASS FLOWMETER | |||||||||
| Structural form | F | Segment | ||||||||
| I | One body | |||||||||
| PI | Plug-in | |||||||||
| PL | Pipe type | |||||||||
| Connection mode | C | Franka | ||||||||
| ST | Screw thread | |||||||||
| F | Flange connection | |||||||||
| W | Welding base | |||||||||
| B | Base+Ball Value | |||||||||
| Probe material | G | 316 | ||||||||
| F | Polyvinyl chloride coating | |||||||||
| Public name path(unit:mm) | 15 | 15 | ||||||||
| 20 | 25 | |||||||||
| ... | ... | |||||||||
| A10 | DN1000 | |||||||||
| Use environment | A0 | Normal | ||||||||
| A1 | Explosion-proof | |||||||||
| Temperature | T0 | -20~60ºC | ||||||||
| T1 | 60~100ºC | |||||||||
| T2 | 100~150ºC | |||||||||
| T3 | 150~200ºC | |||||||||
| T4 | 200~300ºC | |||||||||
| Pressure | P0 | Negative pressure | ||||||||
| P1 | 0~1.0MPa | |||||||||
| P2 | 0~1.6MPa | |||||||||
| P3 | 0~2.0MPa | |||||||||
| P4 | 0~3.0MPa | |||||||||
| Power supply | D | 24VDC | ||||||||
| A | 220VAC | |||||||||
| O | Other | |||||||||
| Display | N | No Display | ||||||||
| E | LED | |||||||||
| C | LCD | |||||||||
| EXAMPLES OF SELECTION:KT GMFMIF 615 A0T1P1DE-HOT GAS MASS FLOWMETER,TUBE DIAMETER DN15,A TYPE FLANGE CONNECTION STRUCTURE,PROBE MATERIAL IS 316 STAINLESS STEEL,NO EXPLOSION,TEMPERATURE 60-100ºC,PRESSURE 1.0 MPA,POWER SUPPLY 24VDC,LED DISPLAY. REMARKS:THERMAL GAS MASS FLOW METER SELECTION TYPE IS LONGER,SIMPLE MODEL:KT GMFM-CALIBER | ||||||||||
