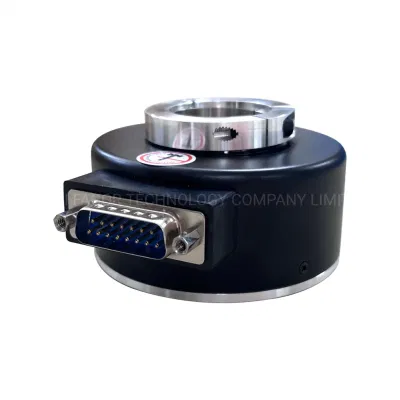

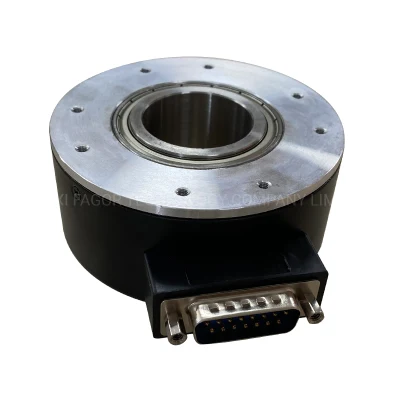

Hollow Shaft 1000PPR Line Driver Abz Phase Optical Incremental Rotary Encoder
Get precise position feedback with our Hollow Shaft 1000PPR Line Driver Abz Phase Optical Incremental Rotary Encoder. We are a factory-direct supplier for all your encoder needs!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
K80 K90 K100
Installation Form
Axle Sleeve Type
Protection
IP51
Voltage
5V/8-30V
Diameter
Customized
Shaft Diameter
Customized
Operating Temperature
-30~85 Degrees
Transport Package
Carton
Specification
0.5kg
Trademark
Fagor
Origin
China
Production Capacity
500/Pieces/Month

Product Description

Hollow Shaft 1000PPR Line Driver Abz Phase Optical Incremental Rotary Encoder Hollow Shaft 1000PPR Line Driver Abz Phase Optical Incremental Rotary Encoder INTRODUCTION:

1.Be used in area of automatic control, measurements,robotics,X-Y labor and printing.
2.High reliability, long life, strong antiinterference ability and wide range temperature adaption.
3.Keyway fixation, easy to install and inner diameter changable.

ORDERING GUIDE:

Hollow Shaft 1000PPR Line Driver Abz Phase Optical Incremental Rotary Encoder
WIRING TABLE

Signal A B Z A B Z Vcc GND Block
Color Green White Yellow Brown Grey Orange Red Black CopperWeb
Db15 Pin Plug 4 2 9       7 5 8
DB15Pin Plug 5 3 2 7 6 8 1 4 P

MECHANICAL SPECIFICATION

Max. Shaft Speed (r/min) Starting Torque Max. Shaft Loading Shocking Vibration
5000 <0.03Nm Radial:15N, Axial:10N 50G/11 ms 10G 10-2000Hz
Rotor Inertia Operating Temperature Storage Temperature Protection Weight
4<10-8kgm² -30ºC~85ºC -35ºC~95ºC IP51 100g

Voltage DC5,8~30V Working Temperature -40~+85 degrees
Resolution 2~3600 Max. Shaft Loading Radial 20N/Shaft 10N
Output Method Open collector/Voltage/Push-pull/DPCM
Max.Shaft Speed 5000r/min Frequency 150KHz

ELECTRICAL SPECIFICATION

Output Circuit Open Collector Voltage Push-Pull Line Drive
Voltage Vcc DC 5, 8 - 30 DC 5, 8 - 30 DC 5, 8 - 30 5
Current ≤80 mA ≤80 mA ≤80 mA ≤150 mA
Load Current 40mA 40mA 40mA 60mA
High-level output MIN Vcc*70% MIN Vcc-2.5V MIN Vcc-1.5V MIN 3.4V
Low-Level output MAX 0.4V MAX 0.4V MAX 0.8V MAX 0.4V
Rise Time Tr MAX 1us MAX 1us MAX 1us MAX 200ns
Fall Time Tf MAX 1us MAX 1us MAX 1us MAX 200ns
Max Responding Frequency 200kHz 200kHz 200kHz 200kHz

OUTPUT PHASE SHIFT

Hollow Shaft 1000PPR Line Driver Abz Phase Optical Incremental Rotary Encoder
DIMENSION

Hollow Shaft 1000PPR Line Driver Abz Phase Optical Incremental Rotary Encoder

1111111111111111111111111111111111111111111111111111111111111111

Hollow Shaft 1000PPR Line Driver Abz Phase Optical Incremental Rotary Encoder Hollow Shaft 1000PPR Line Driver Abz Phase Optical Incremental Rotary Encoder Hollow Shaft 1000PPR Line Driver Abz Phase Optical Incremental Rotary Encoder
Hollow Shaft 1000PPR Line Driver Abz Phase Optical Incremental Rotary Encoder Hollow Shaft 1000PPR Line Driver Abz Phase Optical Incremental Rotary Encoder Hollow Shaft 1000PPR Line Driver Abz Phase Optical Incremental Rotary Encoder Hollow Shaft 1000PPR Line Driver Abz Phase Optical Incremental Rotary Encoder
Hollow Shaft 1000PPR Line Driver Abz Phase Optical Incremental Rotary Encoder
Hollow Shaft 1000PPR Line Driver Abz Phase Optical Incremental Rotary Encoder
