Basic Info.
Product Description
Gas flow meter specifications
Suction system (passive) is divided into three major components; negative regulator part, the dirt collection part suction tube section.
Negative regulator part includes: Vacuum gauge, control valve, plug valve seepage, etc, which is the body part of inhaler, requires vacuum gauge indicates accurate, adjustable hand wheel adjustment freely, not micro-seepage drain valve.
Dirt collection part mainly includes: Security set liquid bottle, and anti-suck back device ,requirements: suction tubes are sealing, anti-suck back devices are sensitive and reliable.
Gas type | oxygen |

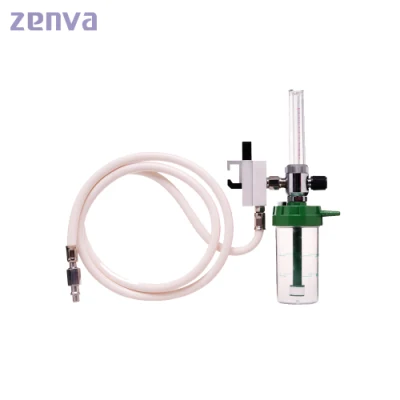

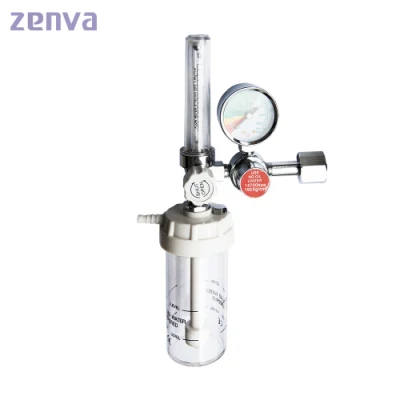

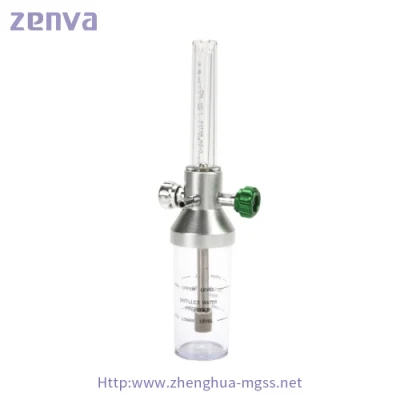

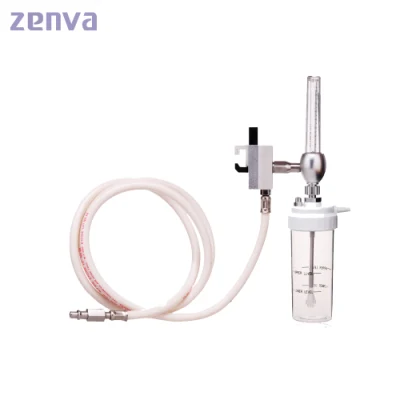

Configuration | single flowmeter-- oxygen flowmeter with humidifier |
Twin : two flowmeters mounted on a single back bar | |
Gas inlet types | 1) gas -specific inlet probe conforming to BS 5682 |
2) 1/8'' NPT female-threadde inlet | |
3) Bullnose nipple with 3/8'' BSPNUT. | |
4) Other country-specific direct and remote-fitting configurations are available- contact the office. | |
Gas outlet types | 1) body has female thread -use BMI 'universal'tubing nipple |
2) body has a 9/16'' UNFmale thread -use tubing nipple(oxygen) | |
Advantage | Joint is smooth, high-accuracy, many kinds of proble can choose, the type of also can select |
Input pressure | 15Mpa |
Oxygen flow range | 1-10L/min 1-15L/min |
Pressure reducing range | 2.0-3.0mpa |
Relief valve pressure range | 3.5±0.5mpa |
Output connection screw thread | 8mm |
Input connection screw thread | G5/8-14-RH,CGA540-RH,G3/4-14-RH |
Output pressure | 0.2-0.3Mpa |
Flow rate | 1-10L/min ,1-15L/min; |
Humidifier capacity | 170ml |
Valve materrial | brass |
material of PC bottle | pvb |
Structure | piston type |
Delivery Detail | 15 days-- oxygen flow meter with humidifier |
Dimension | 20PCS/CTN (color box) or other |
G.W./N.W | 20/19kg |
Packing | Each sent with plastic bag then in inner box 20 sets/ctn |
Maintenance checks | three-monthly leak check |
annual inspection | |
Environmental conditions | store/operate between 5 and 25 degree |
protect exposed o-rings from light | |
Quality guarantee period | 2 years-- oxygen flow meter with humidifier |
Shanghai Zhenghua Medical Equipment Co., Ltd (Shanghai ZhenHua Medical Equipment Factory) is a professional manufacturer of all types of medical equipment,Our subsidiary company "Shanghai Etar Mechanical And Electrical Technology Co.,Ltd" is specifical for exporting business .Our main products include medical pendant surgical pendant, ICU pendant, medical bed head unit, multi-column pendant series, health care, medical gas supply system, and related products. Our company was established in 1993, and we have many years of history in the medical equipment industry. Located in Shanghai, we enjoy convenient water, land and air transportation.,
Through the efforts of our entire staff these years, we have become a strong and professional medical equipment manufacturer. We have continuously tried to improve product quality, introducing into German advanced technology. Moreover, we have excellent engineers and technicians giving our company good technical capabilities.
Our products have already exported to Europe, America, Middle-East, and so on 20 other countries and regions. Our company has always focused on research, development and innovation, we insist the principle innovate makes good future which makes our company to have a good progress. Our company adhere to reasonable prices, efficient production time and good after-sales service as our tenet in order to supply our customer first-rank product
Welcome to our company to make any cooperation .We hope to cooperate with more customers for mutual development and benefits.Hope we can establish the good business and make a good future with you
