Basic Info.
Model NO.
HTBX-H
Amplitude Measurement Range
(-100dB)~(+20dB)
Amplitude Measurement Accuracy
±1dB
Scan Frequency Accuracy
0.01%
Signal Output Impedance
1mΩ
Co-Phase Repetitive Rate
99.5%
Net Weight
10kg
Transport Package
Wooden Case; Carton
Specification
see details
Trademark
UHV
Origin
China
HS Code
9030899090
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
56.00cm * 46.00cm * 48.00cm
Package Gross Weight
35.000kg
Product Description
Product overview
FAQ
1. Is your company a sales company or a manufacturer?
Wuhan UHV Power Technology Co.,Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2004 and have fifteen years of production experience. Our company has reliable production lines, test rooms and R&D centers.
2. Whether the goods are in stock, whether they can be customized, and how long the delivery time is.
After the goods have been ordered, it takes about 7 working days for production if there are no accidents.
3. Is the quality guaranteed?
In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.
4. What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
5. What are the cooperative countries or regions?
Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
Contact usWuhan UHV Power Technology Co.,Ltd.

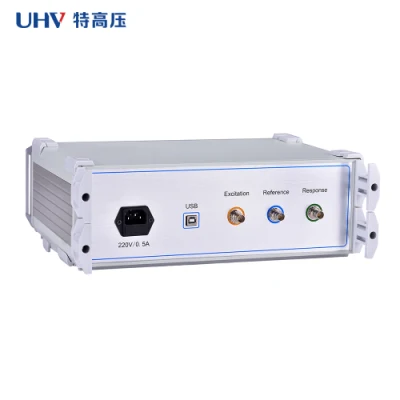

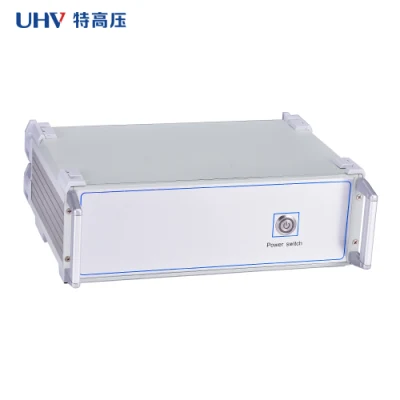

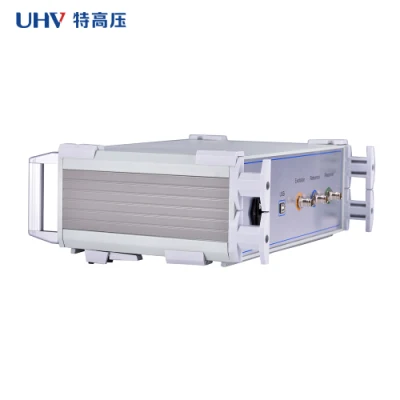

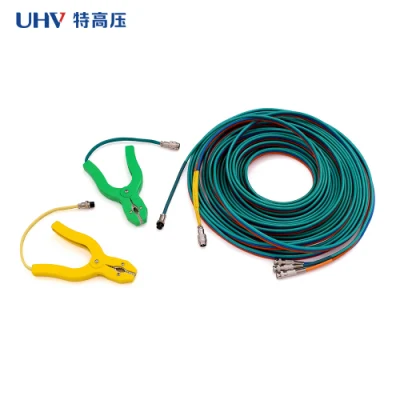

HTBX-H tester based on the measurement of the windings characteristic parameters inside the transformer, the tester using the world's developed countries sound internal fault frequency response analysis (FRA) method, able to make an accurate internal transformer fault judgment.
After the completion of the design and manufacture transformers, coils and its internal structure to be finalized, therefore a transformer coil winding, if the voltage level, method of winding are the same, each coil corresponding parameters (Ci, Li) is determined. Thus the frequency domain response characteristics of each coil also will determine, among the corresponding three-phase coil has a comparable frequency spectrum.
It occurs inter-turn, phase short circuit during the test or collision during transport, causing the coil relative displacement, and during operation under short circuit and fault conditions due to the tension caused by the electromagnetic, coil is deformed, it will make the distribution parameters of the transformer windings changes. Thus influent and change the existing frequency domain transformer frequency response feature, that frequency response amplitude changes occur and resonance frequency shift, etc. HTBX-H applies to the internal structure of fault detection 63kV ~ 500kV power transformers.
FRA quantization process transformer internal winding parameters response changes in the different frequency domain, according to the value of the change magnitude, frequency response magnitude change, regional and response trends, to judge the transformer internal windings degree of change, in turn, can determine whether the transformer has been severely damaged, need to overhaul measurement.
For the running transformer, regardless of whether there is a saved frequency domain feature picture in the past, by comparison the difference between fingerprints of fault transformer coil can also judge the degree of fault. Of course, if you save a set of transformer windings original characteristic graph easier for the operation of transformers, maintenance and inspection after the accident analysis and provide a strong basis more accurate.
FRA from the laptop and chip microprocessor precision measurement systems, compact, easy to operate, with comprehensive test analysis function.
Products features
1.Use high-speed, high integration microprocessor to sample and control.

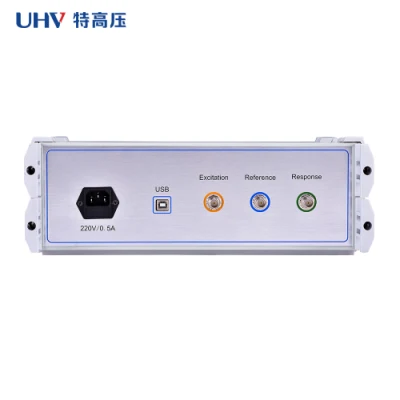

2.Use USB to connect the notebook PC and device.
3.Communication wireless blue tooth interface between the laptop and instruments.
4.Hardware cassette mechanism adopts DDS (from America), can correctly detect the breakdown :distortion, swell, shift, tilt, inter-turn short circuit deformation and contacting short circuit inter-phase.
5.High-speed, dual channel, 16 bit A/D sampling (the wave from curve will change obviously if change the tapping switch during the field tests.).
6.The software can adjust the output signal range, the maximum amplitude peak±10V.
7.The computer automatically generating the test results to be Word document.
8.Use precision, high stability components, the same phase repeat test, measurement repetition rate >99.5%.
9.Finished circuit boards, surface specially treatment with anti-water pollution and harmful gases.
10.The device with two measurement system: linear scan and sectional scan.
11.Amplitude-frequency characteristic comply the national technical specifications.
12.Test data automatic analysis system, horizontal compare the similarity of A,B ,C, the results as below:
a.conformance is very good
b.conformance is good
c.conformance is bad
d.conformance is very bad
Vertical compare A-A,B-B,C-C, obtain the original data to compare the winding deformation with the test data in the same phase, the results as below:
a.normal
b.slight deformation
c.moderate deformation
d.serious deformation
13.Automatically generating Word document,convenient for customers to save and print.
Technique parameters
Linear scan distribution | Scan measurement range | (1kHz)-(2MHz), 2000 scan frequency point, resolution:1kHz |
Sectional scan measurement distribution | Scan measurement range | (0.5kHz)~(1MHz), 2000 scan frequency point |
(0.5kHz)~(10kHz) | ||
(10kHz)~(100kHz) | ||
(100kHz)~(500kHz) | ||
(500kHz)~(1000kHz) |
Other parameters
Amplitude measurement range | (-100dB)~(+20dB) |
Amplitude measurement accuracy | 0.1dB |
Scan frequency accuracy | <0.01% |
Signal input impedance | 1MΩ |
Signal output impedance | 50Ω |
Co-phase repetitive rate | 99.5% |
Instrument dimension | 300×340×120mm3 |
Case dimension | 310×400×330mm3 |
Weight | 10kg |
