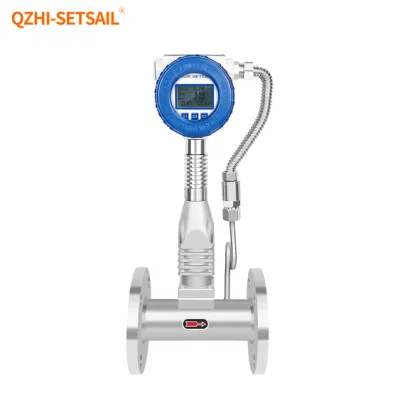

The vortex flowmeter is designed based on the Karman vortex principle, which can measure the flow, temperature, pressure and other parameters of the medium fluid of industrial pipelines according to different types, and has the functions of pulse frequency output, 4-20mA analog signal output, RS485 communication, Hart protocol and so on. It is widely used in heating, gas supply, textile, steel, medicine and other industries to measure and control gas, compressed air, steam, nitrogen, heat transfer oil and other media.
| It is known as Tongjing | 15/20/25/32/40/50/65/80 /100/125/150/200/250/300 (300-1000) plug-in |
| Nominal pressure | DN15-DN2004.0 (> 4.0), DN250-DN3001.6 (>1.6) |
| Medium temperature °C | -40~150,-40~250,-40~350; |
| Accuracy | ±1%R,±1.5%R; Plug-in: ± 2.5%R |
| Range | 1:6~1:30 |
| Supply voltage | Sensor: DC12V, DC24V; Transmitter: DC24V; Battery-powered type: 3.6V battery |
| Output signal | Square wave pulse (excluding battery-powered type): high ≥ 5V, low ≤ 1V; Current: 4~20mA |
| Pressure loss coefficient | Conform to JB/T9249 standard Cd≤24 |
| Explosion-proof signs | Intrinsically safe type: ExdIlia CT2-T5 flameproof type: Ex db IIC T6 Gb |
| Ingress protection | Ordinary IP65 type |
| Environmental conditions | The temperature is -20°C~55°C, the relative humidity is 5%~90%, and the atmospheric pressure is 86~106kpa |
| Applicable media | Gases, liquids, vapors, mixed gases, flammable and explosive gases |
| Transmission distance | Three-wire pulse output type: ≤100m, two-wire standard current output type (4~20mA)≤200m: load resistance≤750Ω; RS485/HART≤500m |
Fully Automatic Inspection And Calibration Equipment In The Factory
| No Temperature And Pressure Compensation | Integrated Temperature And Pressure Compensation |
Product Upgrades

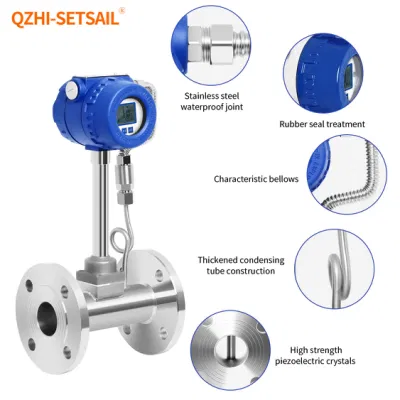

The square fastening screws are reinforced from the normal round to squarefastening columns which can adapt to a higher degree of on-site vibration.

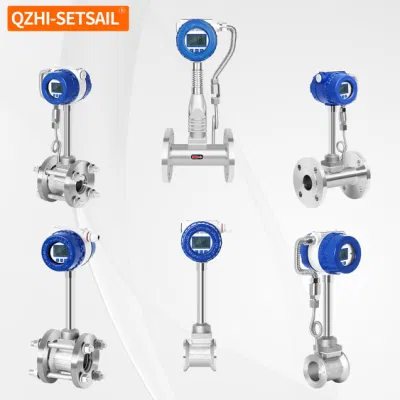

| Threaded Connection | Clamp Flange Connection | One-piece Flange Connection |

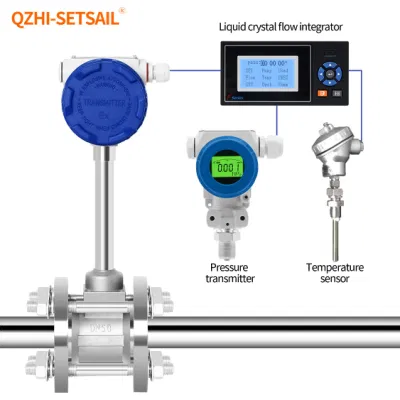

However, field conditions often can not be satisfied, therefore, it is necessary to involve temperature and pressure compensation.
| Instrument Diameter(mm) | Liquid | Gas | ||
| Measuring Range (m3/h) | Output Frequency Range (Hz) | Measuring Range (m3/h) | Output Frequency Range (Hz) | |
| 15 | 0.3~5 | 35~450 | 4~20 | 352~1761 |
| 20 | 0.6~10 | 29~380 | 6~30 | 250~1273 |
| 25 | 1.2~16 | 25~320 | 8~50 | 160~1100 |
| 32 | 1.8~20 | 18~200 | 10~150 | 97~1180 |
| 40 | 2~40 | 10~190 | 20~200 | 130~1040 |
| 50 | 3~60 | 8~150 | 35~350 | 87~952 |
| 65 | 4~85 | 6~120 | 45~450 | 71~764 |
| 80 | 6.5~130 | 4.1~82 | 86~1100 | 54~696 |
| 100 | 15~220 | 4.7~69 | 133~1700 | 42~548 |
| 125 | 20~350 | 3.2~57 | 150~2000 | 26~346 |
| 150 | 30~450 | 2.8~43 | 347~4000 | 34~392 |
| 200 | 45~800 | 2~31 | 560~8000 | 22~315 |
| 250 | 65~1250 | 1.5~25 | 890~11000 | 18~221 |
| 300 | 95~2000 | 1.2~24 | 1360~18000 | 16~213 |
