Basic Info.
Model NO.
QYB200
Customized
Customized
Output
4-20mA
Power Supply
10-30VDC
Range
0-100meters
Transport Package
Carton
Specification
0.5kg
Trademark
XYT
Origin
China
HS Code
9026201090
Production Capacity
3000/Month
Product Description
Overview

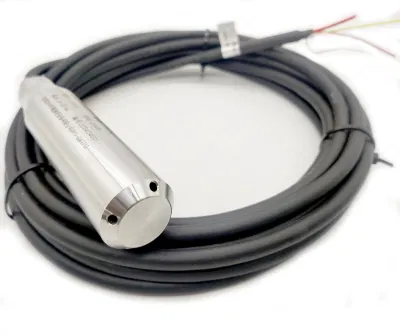

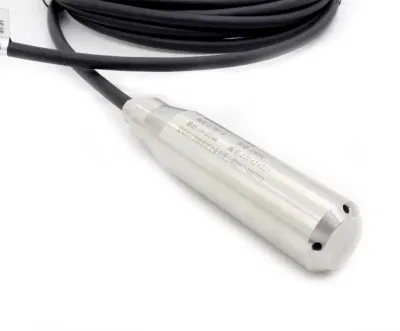

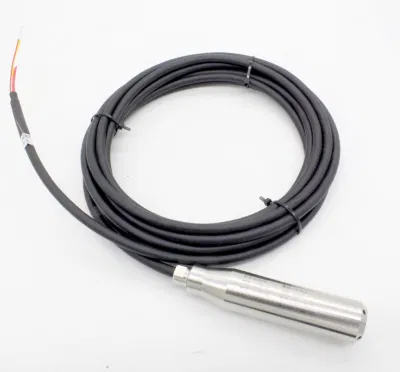

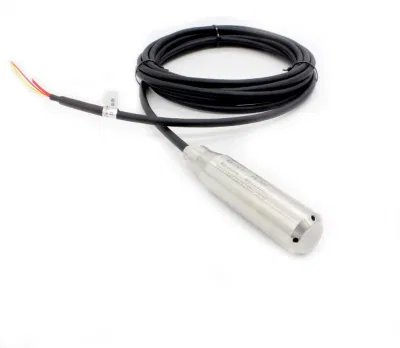

The submersible pressure sensor QYB200W is a special type of pressure sensor for hydrostatic level measurement in tanks, wells, storage tanks, water towers, dams, gauging stations.
For this, the submersible pressure sensor is submerged directly in the liquid to be measured, and positioned as close as possible to the bottom.
There, the submersible pressure sensor measures the hydrostatic pressure, which enables a direct conclusion regarding the current level, i.e. the height of the liquid column above it.
Parameter
Wiring diagram
Company Profile
Factory
Company Certificate
Packaging&Shipment
FAQ
1. How long will you reply me?
Normally in 1 hours, no more than 12 hours.
2. How can I get the quotation?
Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium, electronic connection, shell material etc. More details, more accurate quotation and earlier response.
3. Can I get sample?
Contact with our staff online directly and they would check stock for you.
4. Can I visit your factory?
You are warmly welcomed, our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
Yes, we provide OEM/ODM service.
6. How long is your warranty period?
Warranty period from the date of acceptance of 12 months.
7. What is your terms of payment?
We could accept T/T, L/C, Western union, PayPal, credit Assurance.
The submersible pressure sensor QYB200W is a special type of pressure sensor for hydrostatic level measurement in tanks, wells, storage tanks, water towers, dams, gauging stations.
For this, the submersible pressure sensor is submerged directly in the liquid to be measured, and positioned as close as possible to the bottom.
There, the submersible pressure sensor measures the hydrostatic pressure, which enables a direct conclusion regarding the current level, i.e. the height of the liquid column above it.
Parameter
| SPECIFICATIONS FOR QYB200 PRESSURE GAUGE | |
| Range | 0~100m |
| Output Signal | 4-20mA |
| Accuracy | 0.5%F.S |
| Stability | ≤0.1%/year |
| Power Supply | 12-30VDC |
| Work Temperature | -30°C~80°C |
| Overload Capacity | 150%F.S |
| Medium Temperature | 0°C~60°C |
| Protection Level | IP68 |
| Sensor | Diffused sillcon |
| Option1: Model | |||||||||||||||||||
| QYB200W | Level Transmitter | ||||||||||||||||||
| Option2: Pressure Ranges | |||||||||||||||||||
| R1 | 0-1meter | ||||||||||||||||||
| R2 | 0-2meter | ||||||||||||||||||
| R3 | 0-3meter | ||||||||||||||||||
| R4 | 0-4meter | ||||||||||||||||||
| R5 | 0-5meter | ||||||||||||||||||
| R6 | 0-6meter | ||||||||||||||||||
| R7 | 0-7meter | ||||||||||||||||||
| R8 | 0-8meter | ||||||||||||||||||
| R9 | 0-9meter | ||||||||||||||||||
| R10 | 0-10meter | ||||||||||||||||||
| Option3: Pressure Type | |||||||||||||||||||
| G | gauge | ||||||||||||||||||
| Option4: Output Signal | |||||||||||||||||||
| 42 | 4...20mA | ||||||||||||||||||
| Option5: Accuracy | |||||||||||||||||||
| 05 | 0.5%FSO | ||||||||||||||||||
| Option6: Cable | |||||||||||||||||||
| V | PVC | ||||||||||||||||||
| Option7: Shell material | |||||||||||||||||||
| 34 | SS304 | ||||||||||||||||||
| QYB200 | R1 | G | 42 | 05 | V | 34 | Examples of Ordering Code: QYB200-R1-G-42-05-V-34 | ||||||||||||
