Basic Info.
Model NO.
ELS-ZL70N
Material
Plastic
Feature
Low Temperature Resistant
IP Rating
IP67
Certification
CE
Customized
Customized
Model
Els-Zl70n
Detection Method
Diffuse Reflection
Detection Distance
100~700mm
Light Source
Laser 650nm
Output Type
NPN
Operating Voltage
10~30V DC±10%
Transport Package
a Pieces /Box
Specification
2M/3 Core Cable
Trademark
AkuSense
Origin
Guangdong, China
HS Code
9031499090
Production Capacity
50000pieces/Year
Product Description
Product Description

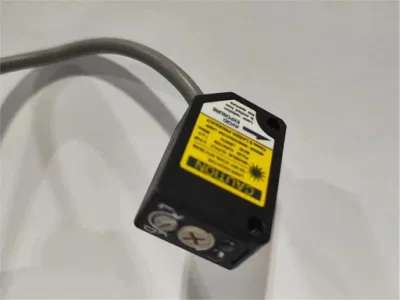

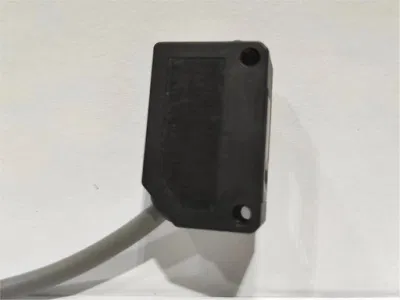

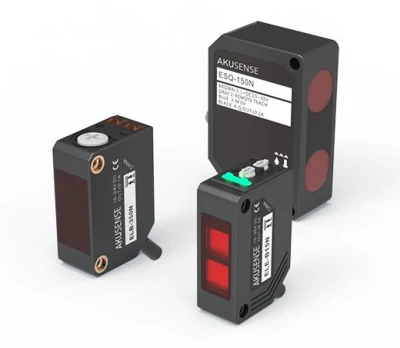

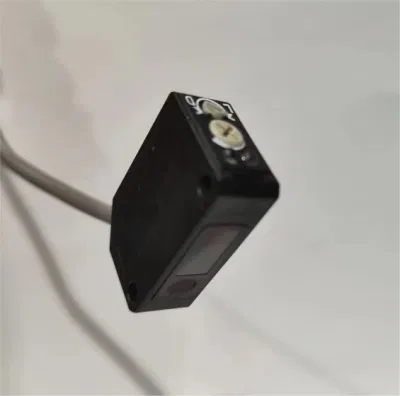

Ultra-thin photoelectric sensor
New arrival
economic type
Sensitivity adjustable, visible red light.
Technical specifications
Size structure
Circuit diagram
Factory environment
Part of the process
FAQ
Q : What is the MOQ?
A : 1pcs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger size orders
Q : Can I get a sample?
A : Of course, but you need to pay the minimum sample fee
Q : When will you ship my order?
A : 1 day shipping guarantee for stock item and 3-4 weeks for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in factory production line, we cannot change it.
Q : How can you guarantee the production quality?
A : The quality of products has passed UL&CE&ISO140001&IS09001certification. production plant have 20+ years professional sensor manufacturing history and products have been supplied to many 500 companies and continue to purchase
Ultra-thin photoelectric sensor
New arrival
economic type
Sensitivity adjustable, visible red light.
Technical specifications
| Model | ELS-ZL70N |
| Detection Method | Diffuse Reflection |
| Detection Setting | 50~300mm |
| Detection Distance | 100~700mm |
| Spot Size | Φ6mm/200mm |
| Switch Mode | L.on(light entry action)/D.on(shading action) can be switched |
| Indicator | Output indicator: orange; Power LED: Green |
| Response Time | 0.7ms |
| Sensitivity Adjustment | 4-turn adjuster |
| Light Source | Laser 650nm |
| Laser Class | Class2 |
| Working Voltage | 10~30V DC±10% |
| Output Mode | NPN |
| Current Consumption | 35mA |
| Protection Degree | IP67 |
| Housing Material | Shell: containing glass fiber ABS; Lens: PMMA |
| Ambient Temperature | -10ºC~+50ºC,no freezing |
| Ambient Humidity | 35%~85%RH,no condensation |
| Impact Resistance | 50G(500m/s²) |
| Type | Long-range Type |

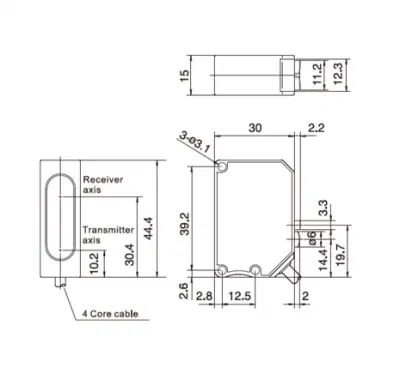

Size structure
Circuit diagram
Factory environment
Part of the process
FAQ
Q : What is the MOQ?
A : 1pcs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger size orders
Q : Can I get a sample?
A : Of course, but you need to pay the minimum sample fee
Q : When will you ship my order?
A : 1 day shipping guarantee for stock item and 3-4 weeks for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in factory production line, we cannot change it.
Q : How can you guarantee the production quality?
A : The quality of products has passed UL&CE&ISO140001&IS09001certification. production plant have 20+ years professional sensor manufacturing history and products have been supplied to many 500 companies and continue to purchase
