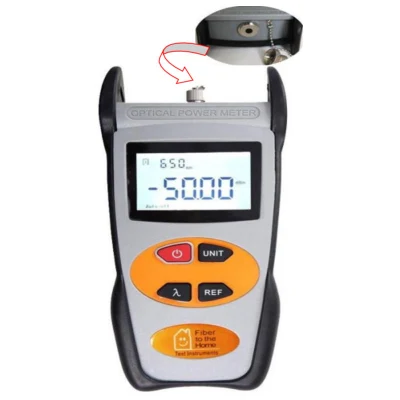

Onefind WF1201-OPM650 wavelength 650nm POF Optical power meter for the construction and maintenance of laser audio-visual systems, optical fiber communications and other fields
This 650nm optical power meter series is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It has features of ingenious appearance, wide range of power measurement, high accuracy with high performance-to-price ratio.
Bb Wavelength(nm) | 400~1100nm |
Detector | Si (10mm) |
Measurement Range (dBm) | -50~+17 |
Uncertainty | ±5% |
Calibrated Wavelength(nm) | 650 |
Resolution(dB) | 0.01 |
Optical Connector | FC |
Power Supply | Alkaline Battery(3 AA 1.5V batteries) |
Battery Operating Time | 240 h with 1.5V Battery(3) |
Operating Temperature() | -10 ~ +60 |
Storage Temperature() | -25 ~ +70 |
Relative Humidity | 0 to 95% (non-condensing) |
Dimension(mm) | 200 X90 X50 |
Weight(g) | 285 |
| 1 | Fusion Splicers | Chinese fusion splicer/Japanese fusion splicer/Korea fusion splicer/ |
| 2 | OTDR | Chinese OTDR/USA OTDR/ Canada OTDR/Japanese OTDR/CWDM OTDR/DWDM OTDR/CWDM OTDR |
| 3 | Test instruments | optical power meters/optical laser sources/visual fault locators / PON power meters / |
| Fiber Optical Multimeter/Optical Attenuator/Optical talk sets/cable fault locators/Fiber Identifier | ||
| 4 | Fiber Tools | Fiber cleaver/Fiber stripper/Cable sheath slitter/ kevlar scissors/Fiber cleaning tools/ |
| Loose Tube Stripping Tool/Fiber optic termination kit/bare fiber connector/V-groove/launch Cable/ | ||
| Bare Fiber Alignment device/Cable jointing tool kit/ FTTH tools kit/ | ||
| Thermal Stripper | ||
| 5 | Wireless Test Equipment | Sitemaster/ Spectrum Analyzer |
| 6 | Data Test Instrument | E1 Error Bit Tester/Ethernet Tester |
| 7 | Battery Tester | Battery internal resistance tester |
| 8 | Accessories | Patch Cord/ fiber Adapter/Fiber Cable/Fusion splcier Battery/ |
| OTDR battery/Electorde/Blade/Power changer |
1. Beijing W&F technology Co.,LTD is founded in 2006.We locate in Beijing- the capital of China. More than 15 years professional experience in fiber optic euqipments field makes us pay more attention to the quality.
2. Our brand ONEFIND are selling all over the world.
3. Life long technical support, quick feedback to any problem.
4. We can also provide OEM service.
5. "Satisfaction of the clients is service standard" --is our marketing service strate.
