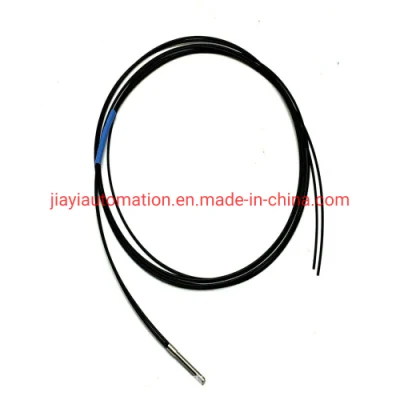

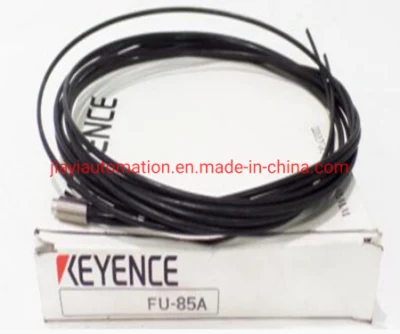

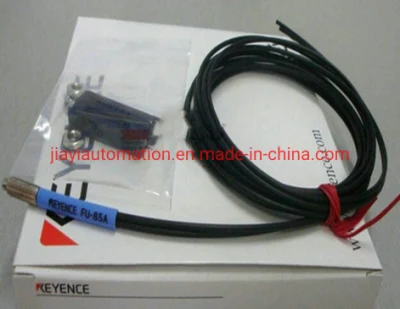

Optical Fibre Sensor NPN Output Fu-85A

Model

FU-85A^*1

Optical axis diameter
(Standard target to be detected)

ø1 mm

Heat resistant temperature

105°C^*2*3

Fibre unit length

2 m free-cut

Fibre unit diameter

ø2.2

Minimum bend radius

R25 mm

Minimum detectable object

Object with a diameter of 0.005 mm^*4

Environmental resistance

Ambient temperature

-40 to +105 °C

Weight

Approx. 22 g

^*1 For details on the detecting distance, see the fibre amplifier catalogue.
^*2 When this product is used in an environment with a consistently high temperature, we recommend an ambient usage temperature of 90°C or less.
^*3 Use in a dry state. Also, when using the heat resistant type, make a selection with ample room for the ambient temperature.
^*4 The minimum detectable object is the value when the detecting distance and sensitivity have been set to their
