Basic Info.
Model NO.
AO-09
Group
All
Name
Oxygen Sensor
Usage
Detect Oxygen Level
Mounting Type
3pin
Description
Oxygen Cell
Model
Ao-09
Output
9 Mv to 13 Mv in 210 Mbar O2
Response Time
<15s
Baseline Offset
<200UV
Acurracy
Meets ISO80601-2-55
Connector
3p2.5-2.54mm
Measurement Range
0~100vol%O2
Temperature Compensation
<2%O2(0~40°c)
Operating Temperature
0~50°c
Typical Application
Anesthesia
Transport Package
Standard Outside Carton
Specification
100pcs/ctn
Trademark
OEM/NEUTRAL
Origin
China
Production Capacity
10000PCS/Week
Product Description
Product Descprition:

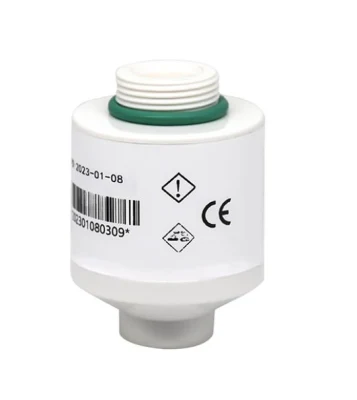

AO-09 is the oxygen sensor offering long life and fast response, the high quality AO-07 replacement sensor incorporates a molded body design, specific for medical use. Best of all, the AO-07 costs less than the sensors it replaces, creating additional saving while providing superior quality. For further information on the AO-07 or any product line of medical oxygen analyzers and sensors, contact us.

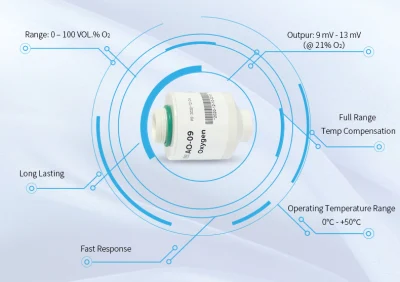

Specification
| Product name: | AO-09 Oxygen Sensor |
| Measurement Range | 0 - 100 Vol.% O² |
| theory | Electrochemical Sensor |
| Output | 9 mV to 13 mV in 21%O² |
| Temperature Compensation | <2% O² equivalent(0ºC-40ºC) |
| Operating Temperature Range | 0ºC - +50ºC |
| Operating Humidity Range | 0% to 99% RH noncondensing |
