Basic Info.
Product Description

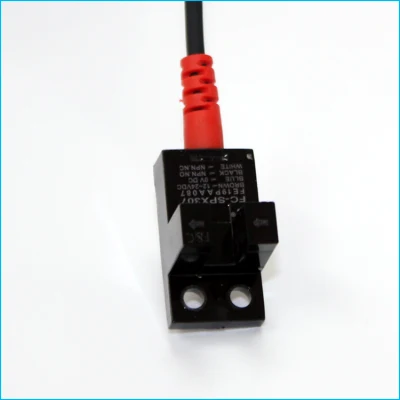

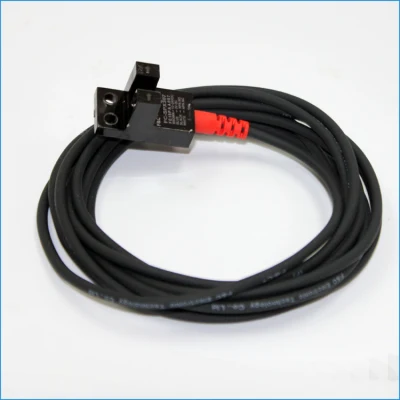

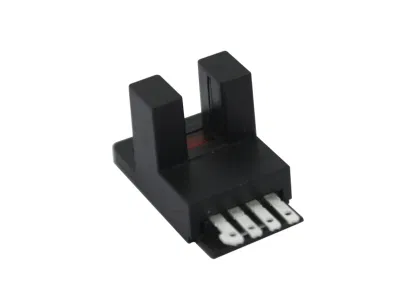

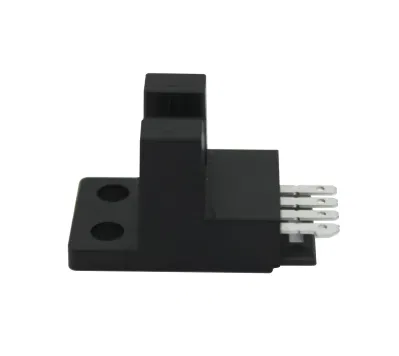

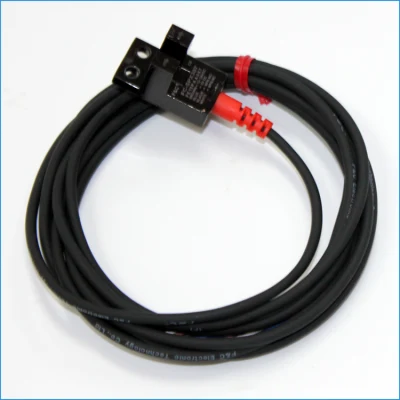

4-Pin Plug Type 5V to 24V DC Slotted Optical Sensor position limit and protect
| micro photoelectrc switch 5V-24VDC | |
| Model | FC-SPX307Z/D |
| Shape | slot/fork photoelectric switch 5mm |
| color | black |
| Amplifier | Amplifier Built-in |
| wired | 4 wires, brown, blue, black, white; 4-pin plug type |
| voltage | 5V-24V DC |
| lead time | 5days |
| certificate | CE, ROHS, ISO |
| light source | infrared |
| customize | anti sun-light type available |
| output | NPN transistor ; PNP transistor |
| replace model | SX674, PMY44 |
| Models | Detection Mode | Detection Distance | Entry Cable |
| FC-SPX307PZ | PNP.NO.NC | 5mm | 4-wires, cable type |
| FC-SPX307Z | NPN.NO.NC | ||
| FC-SPX307PZ/15D | PNP.NO.NC | M8 with 150mm cable, 4 pins, Connector type. | |
| FC-SPX307Z/15D | NPN.NO.NC | ||
| FC-SPX307PZ/D | PNP.NO.NC | 5mm | 4-pin Plug type |
| FC-SPX307Z/D | NPN.NO.NC | 5mm |
1. small volumm, little space to install. and three type for choice; 4-wire type, M8 4-pin type with150mm pre-wired cable and 4 pins type infrared photoelectric sensors.
2. Widely Voltage range 5V-24V DC.
3. Anti Strong light and Sunlight design.
4. CE , ROHS, ISO certificate.
5. OEM/ODM accepted, with MOQ 500pcs.
6. Usually Suitable for Zero-point Induction, reset detection and position limit and protect.
F&C Sensing Technology is a high-tech enterprise, specialized in R&D, manufacturing and marketing industrial automation control sensors which is mainly for limit protection, counting and presence or absence judgement.There are 14 series and around 5000 models available, based on Changsha, Dongguan and Taiwan, F&C sensors and our authorized distributors around the world are dedicated to provide wonderful one-stop-service to all the customers.Our main products include Fiber optic sensor, Fiber Unit, proximity sensor,photoelectric sensor, light curtain, label sensor, pressure switch, magnetic switch, din-rail power supply etc.And producing is strictly correspond with ISO9001, ISO14001 and OHSAS18001.
