Basic Info.
Model NO.
O2A010
Certification
CE
Gas
O2
Type
Electrochemical Gas Analyzer
Function
O2 Testing
Net Weight
0.3kgs
Gross Weight
0.35kgs
Battery Power
0.16W
Volt
DC 5V 2000 mAh
Package
Color Box
Charging Time
2 Hour
Continuous Working Time (One Charge)
48 Hour
Lithium Attery Life
>2 Year
Transport Package
Each Product to Do a Single Color Box, 5 Color Box
Specification
166*74*32mm
Origin
China
HS Code
8419909000
Production Capacity
2000piece/Month
Product Description

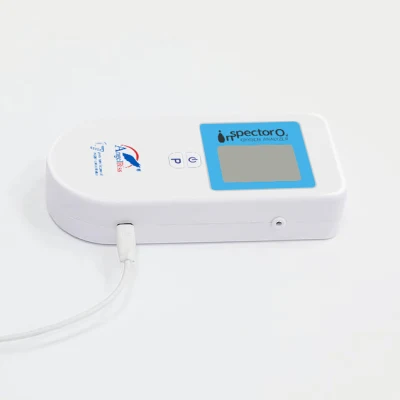

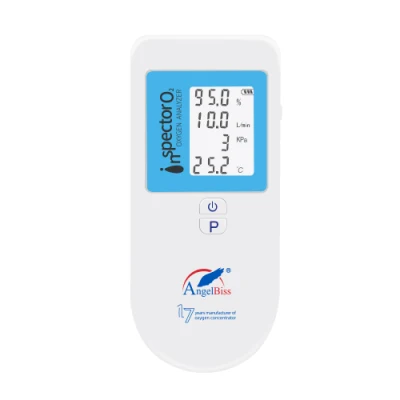

Rechargeable USB Oxygen Sensor Monitoring O2 Purity With High Sensitivity
The O2A010 oxygen analyzer is capable of measuring oxygen purity of 20%-95.9% in the range of 1-10LPM. One-button start. Oxygen purity, flow rate, outlet pressure and oxygen temperature are all displayed on the unit's 2.2-inch LCD screen. Fast charging via USB interface, a single charge can run continuously for 48 hours. It is one of the most fully functional and energy saving oxygen analyzer on the market, which is very suitable for detecting oxygen devices.
- lithium battery
- USB interface
- The accuracy is ±1.8%
- The measured flow range is between 0-10LPM
- Measured concentration range 20.0% to 95.9%
- Oxygen concentration and flow can be displayed
- Measure oxygen purity, flow rate ,outlet pressure and oxygen temperature are all displayed on one panel
MODELS AND FUNCTION
| Model | Volts | Watts | O2 Flow Display | O2 00.0% Display | Outlet Pressure Display | Oxygen Temperature Display | Rechargeable |
| O2A010 | DC 5V | 0.16W | YES | YES | YES | YES | YES |
TECHNICAL SPECIFICATIONS
| System Map | Functions | O2A010 |
| Oxygen Analysis System | Oxygen Flow | 0~10LPM |
| Oxygen Purity | 20.0%~95.9% | |
| Outlet Pressure Range | 1~150 KPa (0.15~21.76 psi) | |
| oxygen Temperature | -20ºC~50ºC (-4°F~122 °F) | |
| Measurement Accuracy | ±1.8% F.S | |
| Response Time | ≤10s | |
| Operating Ambient Temperature | 5~40 ºC (41 °F~104 °F) | |
| Screen Display System | Display Material | LCD Display |
| What Can Be Displayed? | O2 Flow Display | |
| O2 00.0% Display | ||
| Outlet Pressure Display | ||
| Oxygen Temperature Display | ||
| Operating System | Two-button Operation | On/Off |
| Pressure Switchable (KPa/psi) | ||
| Battery System | Battery Type | Lithium Battery |
| Rechargeable | USB interface | |
| Charging Time | 2 hour | |
| Continuous Working Time (one charge) | 48 hour | |
| Lithium attery Life | >2 year | |
| Packaging Details | Net/Gross Weight | 0.3/0.35 kg |
| Body Size | 166*74*32 mm | |
| Color Box Size | 230*90*50 mm |
APPLICATION

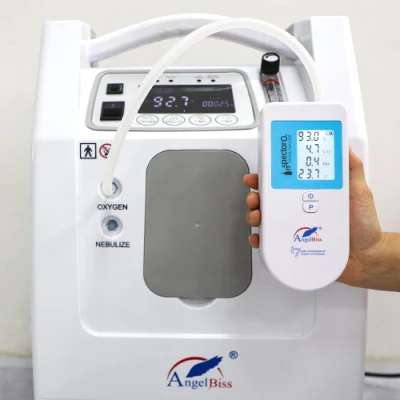

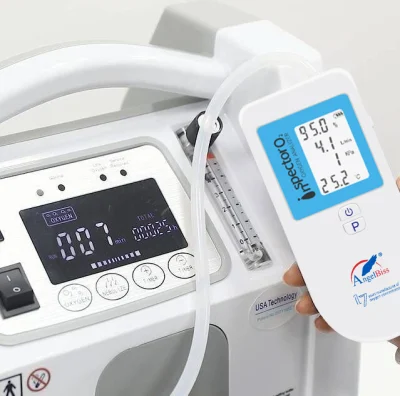

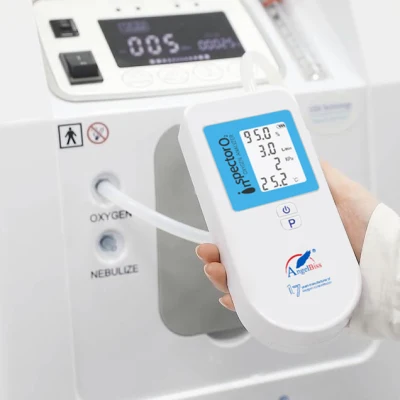

It's a personal portable oxygen content measurement device, measure oxygen purity, flow rate ,outlet pressure and oxygen temperature are all displayed on one panel. It has a USB interface, not limited by geographical location and it can be reused. Easy to use, only need to connect the instrument and oxygen interface. In addition, the oxygen analyzer can be applied to various types of oxygen concentrators, such as Yuwell, Philips, Omron,Invacare, Haigui Turtle,MED JOY, SYSMED, AERTI,JU Mao, ect.
WHO IS ANGELBISS?
ANGELBISS, a promising brand has been registered at Germany, Malaysia, the USA and PRC China. AngelBiss Healthcare Inc, an eng
ineering development center and the first company focus on fluctuation of oxygen concentrator and the only company capable of controlling the fluctuation rate within 0.1% when even oxygen output is at 7bar high pressure. AngelBiss team engage in development, exportation and manufacturing quality products on the field of Oxygen Therapy, Surgery Therapy, Oxygen Supply, Asthma Therapy and Diagnostic Therapy. With its own unique advantages and powerful engineering capabilities, AngelBiss has provided many high-quality solutions to customers all over the world.
WHAT HAS ANGELBISS BEEN DOING DURING THE PANDEMIC?
EXHIBITION
AngelBiss and her partner in Malaysia are honored to have supported UNICEF@Oxygen Concentrators. We sincerely thank UNICEF Malaysia for this work, and AngelBiss also hopes to provide adequate care for more children during this difficult period.
AngelBiss donated ANGEL series oxygen concentrators to people in emergency need of oxygen therapy in Indonesia, Malaysia, Thailand, etc. during the epidemic. With the support of partners in these countries, oxygen concentrators were distributed to multiple government agencies and hospitals. AngelBiss has been working hard to fight the pandemic.
EXHIBITION
TESTING AND PACKAGING
AngelBiss implements strict quality control and product testing, and adheres to the principle of quality first.
Quality policy: Continuously improve professionalism, Continuously optimize the workflow, Ensure the safety and effectiveness of the product.
Quality goal: The pass rate of raw materials inspection exceeded 95%, Product assembly qualification rate exceeds 98%, The factory pass rate is 100%.
AngelBiss all products are complied with the USA Technology quality standards and the best performance at its electronic life span. The products are cost effective and environmental friendly, simple to maintain, which have proved their reliability in a myriad of services across the globe. AngelBiss ensure your safety in using its products, granting better use services to its distributor fans.
