Product Description
Rts NPN/PNP Output Transparent Labels Opaque Labels Clear Label Sensor
(1) Proximity sensor 1000+ models
(2) Fiber amplifier and Optic Sensor 3000+ models
(3) Photoelectric Sensor 500+ models
(4) Magnetic Switch 100+ models
(5) Lable sensors 40+ models

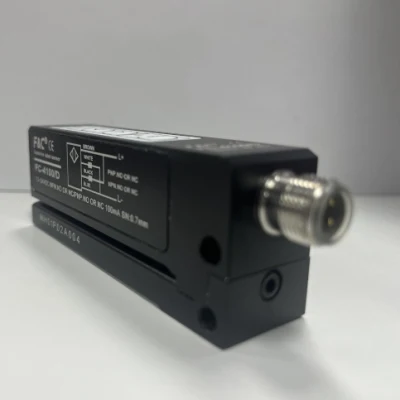

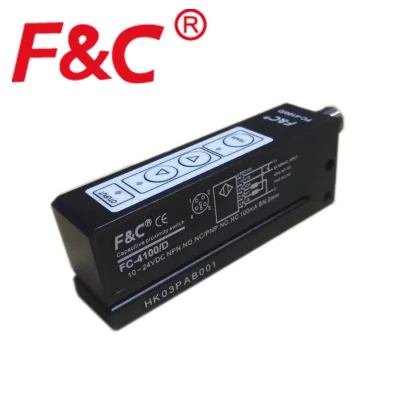

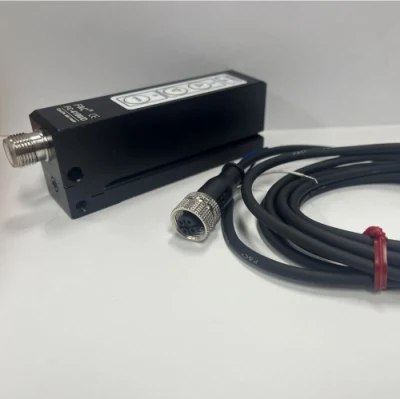

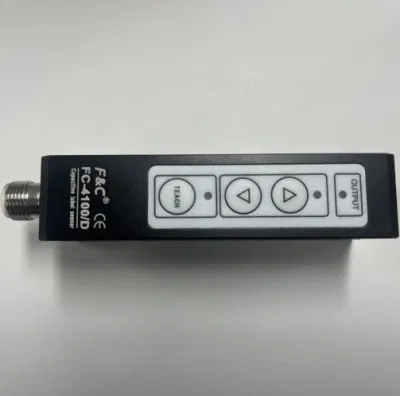

| FC-4100 NPN PNP Capacitive label sensor 0.2mm accuracy Detection of thin, transparent and paper labels | |
| Model | FC-4100 |
| Output type | PNP+NPN NO NC |
| Detection distance | 0.7mm |
| Accuracy & repeat | 0.2mm |
| Operating voltage | DC12-24V±10% |
| Current consumption | ≤25mA |
| Load current | 100mA Max at DC ;24V |
| Protection circuit | Reverse polarity protection and short circuit protection |
| Response time | 0.1ms |
| Frequency | 5Khz |
| Standard & Sensitivity | Key smart regulation |
| Indicator | red: Balance benshmark and sensitivity level; Green: Signal output |
| Ambient temperature | 0-60 degree |
| Connector | M12 connector 4pin |
| Meterial | Aluminium metal sheet |
| Wiring method | φ4mm×2M/4-wires |
Sticker Label sensors commonly used in labelling and packaging machines,such as label-registering application, label-counting or rewinding application. there are three working principles label sensors for different labels, they are photoelectric label sensors, Capacitive label sensors and Ultrasnic label sensors. for example , Optical Label sensor Usually recommend for opaque label detection, it is high precise and better price. like model FC-2100, FC-2200....... if transparent label required, here recommend you capacitive label sensor FC-4100 which is the most economic and also wonderful performance. if metal label detection, it should be ultrasonic label sensor FC-2300.
| Model | Theory | Slot width | Application Labels |
| FC-2100 | Optical | 2mm | common non-transparent sticker label, opaque labels |
| FC-2107 | Optical | 5mm | common non-transparent sticker label, opaque labels |
| FC-2200 | Optical | 6mm | common non-transparent sticker label, opaque labels |
| FC-2600 | Optical | 2mm | common non-transparent sticker label, opaque labels |
| FC-4100 | Capacitive | 0.8mm | non-transparent and transparent labels, clear labels |
| FC-2300 | Ultrsonic | 2mm | Metal Label |
(1) 23+ years manufacture and 10+ years OEM service sensor experience .
(2) 4000+ models Sensors
(3) Long service time, 8+ years
(4) 3 years warranty time
(5)Fast delivery time. Most delivery within 1 days (Stocks)
(6) IP67 protection grade
(7) CE, RoHS certification
