Product Description

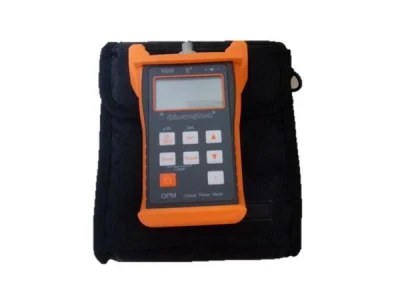

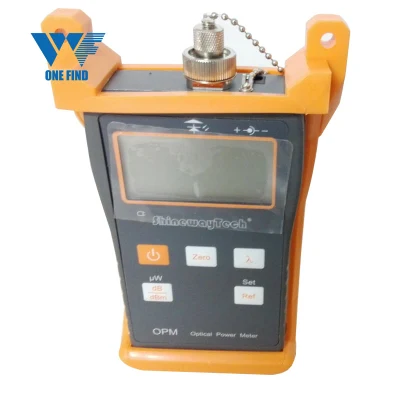

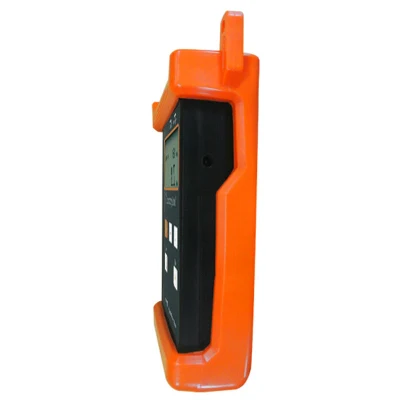

Intelligent OPM-15 Optical Power Meter
OPM-15 series Optical Power Meter paired with ShinewayTech SLS series Stabilized Laser Source can meet general test requirements of fiber identification, attenuation/loss measurements, continuity verification and transmission quality evaluation on singlemode and multimode fibers in LAN/WAN/CATV infrastructure. OPM-15 is ideal for both lab and field applications offering high quality, high stability and competitive low costs.
1.Applicable on singlemode/multimode fibers
2.Microprocessor & linear amplifier ensure long-time accuracy
3.Quick response, no warm-up

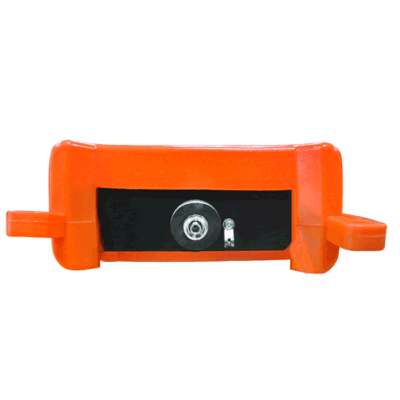

4.Interchangeable connectors: FC/SC/ST
5.Dual-way power supply: 9V alkaline battery/AC adapter
6.Pocketsize, lightweight and damp-dust-shock proof
7.Power saving: Auto-off setting
8.MOD tones detection
9.Display Units: dB/dBm/mW/μW/W
10.CE, FCC Certificates
Model | OPM-15 | |
A | B | |
Calibrated Wavelength (1) | 850,1300,1310,1490,1550,1625nm | |
Power Range (dBm) (2) | -70~+10 | -50~+27 |
Application Range | Single/Multimode fibers | |
Detector Type | InGaAs | |
Accuracy | For power range of -70 ~ +10: ±0.25dB(±0.5dB@850nm) For power range of -50 ~ +27 & -55 ~ +17: ±5%±1nW(±0.5dB@850nm) | |
Resolution | 0.01dB | |
MOD Identification | 270,1K,2K Hz | |
Display Unit | W/μW/dBm/dB (REF) | |
Connector (3) | FC (Interchangeable SC, ST) | |
Power Supply | 9V Alkaline Battery(450mAh) / Optional 9V AC Adapter | |
Battery Life | ≥40hours | |
Power Saving | Auto off after 5 minutes idle | |
Operating Temperature | -20ºC ~ 50ºC (32 ~ 122 F) | |
Storage Temperature | -40ºC ~ 70ºC (-4 ~ 158 F ) | |
Relative Humidity | 0 ~ 95% (Non-condensing) | |
Weight | 300g (0.66lbs) | |
Dimensions (H×W×T) | 145×75×25mm (5.7×2.9×1inch) | |
Note: (1) Other wavelengths and power ranges are open for customization;
(2) For Model A at 850nm, the lower limit of measurement range is -60dBm (Model A)
/ -50dBm (Model B);
(3) OPM models with 1000μm detector are available with:
FC/SC/ST/DIN/E2000/LC/Universal 1.25mm/Universal 2.5mm connectors.
1. Beijing W&F technology Co.,LTD is founded in 2006.We locate in Beijing- the capital of China. More than 15 years professional experience in fiber optic euqipments field makes us pay more attention to the quality.
2. Our brand ONEFIND are selling all over the world.
3. Life long technical support, quick feedback to any problem.
4. We can also provide OEM service.
5. "Satisfaction of the clients is service standard" --is our marketing service strate.
