Product Description

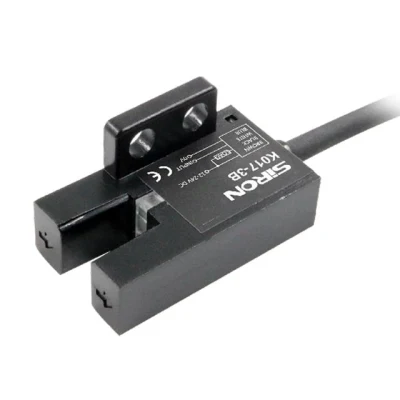

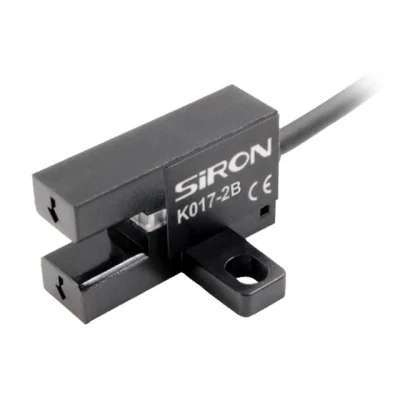

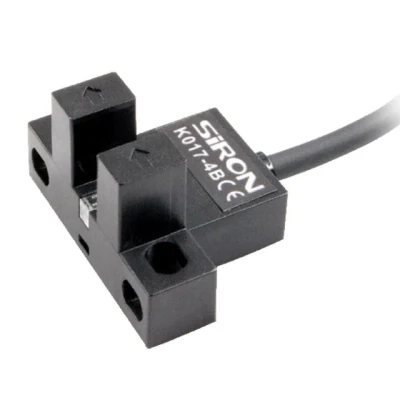

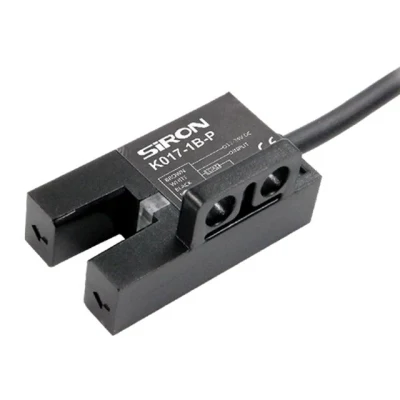

| Name | Groove sensor (plug-in type) | |||||
| Model | K017-1B | K017-2B | K017-3B | K017-4B | K017-5B | K017-6B |
| K017-1D | K017-2D | K017-3D | K017-4D | K017-5D | K017-6D | |
| K017-1B-P | K017-2B-P | K017-3B-P | K017-4B-P | K017-5B-P | K017-6B-P | |
| K017-1D-P | K017-2D-P | K017-3D-P | K017-4D-P | K017-5D-P | K017-6D-P | |
| Species | F type | T Type | R type | L type | K type | Y type |
| Appearance |  |  |  |  |  |  |
| Detection distance | 5mm (slot width) | protect the circui | Surge Protection, Reverse Polarity Protection |
| Standard detection object | 1.2*1.8mm opaque object | Ambient luminosity | Incandescent lamp ≤1000Lux |
| Repeatability | Below 0.03mm | Ambient temperature | Working: -25ºC~+55ºC Storage: -30ºC~+80ºC, no freezing |
| Output mode | NPN or PNP open collector | Environment humidity | Working: 5%~85%RH Storage: 5%~95%RH, no condensation |
| Switch mode | L.on (light receiving action)/D.on (light blocking action) can be switched | Withstand voltage | AC, 1000V for 1 minute, between all power connection terminals and the case |
| Indicator light | Red LED | Vibration resistant | 10~55Hz, amplitude 1.5mm, 2 hours each in X, Y and Z directions |
| Response frequency | 3KHz | Insulation resistance | Between all power connection terminals and case, more than 20MΩ (based on DC250V) |
| Response time | ≤0.3ms | Protection level | IP50 |
| light source | Infrared LED (940nm) | Material | PC |
| Operating Voltage | 5~24V DC | Cable | 4 core cable |
| Residual voltage | 1.5V or less (when the load current is 100mA and the wire length is 2m) | Line length | 2M |
| Current consumption | <15mA | Output state | NPN normally open/PNP normally open |
1.What type of company are you?
We are a manufacturer, we have stock of most of products and we support customization.
2.What can you buy from us?
Terminal Block Module, Relay Module, Cable, LED Light, Sensor, Control Power Box Body, Push Button, Switch, and Auxiliary Equipment, Human Machine Interface, Frequency Converter, Servo Motor, Module, Reducer and Other Industrial Automation Control Products.
Please contact us if you do not find the product you want.
3.How about the quality of the products?
We can provide one year warranty for you and we have the certification of CE, CCC, UL, and RoHs etc.,
we could send the certification test of our company to you.
4.How do you make our business long-term and good relationship?
We have agents in Thailand, Japan, Singapore, Vietnam and South Korea..., and we do hope you become our agent in the future,
welcome to discuss the deep details with us.
