Product Description

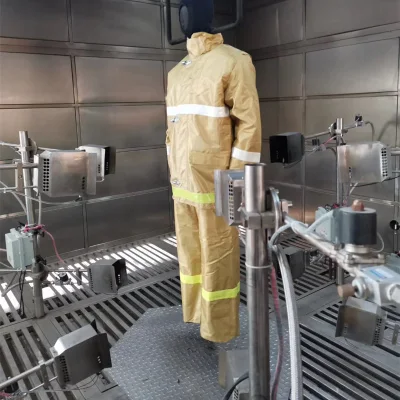

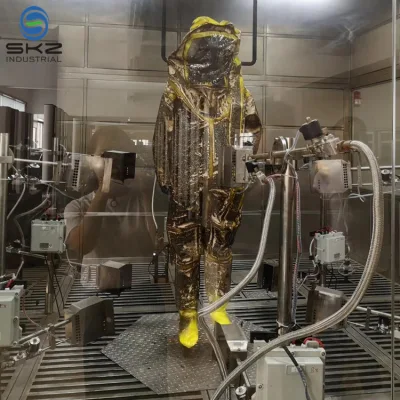

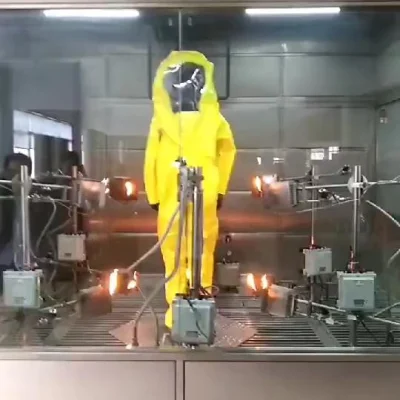

SKZ8088 Combustion laboratory test system Clothing Flame Resistant Fire Protection
Evaluation of Flame Resistant Clothing for Protection Against Fire Simulations Using an Instrumented Manikin, In the process of heat exposure in the combustion flame, the surface temperature of the Instrumented Manikin is tested to predict the second, third and third degree burn area percentage of the skin and predict accurately the degree of body burn.
High simulation of high-risk environment in a high-temperature environment of the simulated environment simulation lab, the use of combustion Instrumented Manikin test system, can carry out a variety of firefighting uniforms and other protective equipment, flame retardant performance evaluation and influencing factors.
Standard
ASTMF1930-2000,ISO 13506-2017
Technical Parameters
I. Burning laboratory system
- The combustion laboratory adopts the overall fireproof structure, and the overall structure is composed of a metal frame and a flame retardant material.
- The effective size of the combustion test chamber is 4.0 m (length) x 4.0 m (width) x 3.0 m (height), (minimum height of at least 4 m in construction space and at least 50 m2 in construction area)
- 3. Ventilation exhaust system
II. Flash fire simulation and safety control system
1. Burner: 6 sets of 12 burners
2. Gas delivery system:
Propane gas pipelines, pressure regulators, valves and pressure sensors are used to deliver gaseous propane to the ignition system and to the burner head. The fuel delivery system provides a sufficiently uniform and uniform heat flux with a heat flux density of at least 84kw / m² and a fuel delivery time error of ± 0.1s.
3. Security systems: gas detectors, door detectors, flame detectors, fire extinguishers, emergency stop devices and other necessary safety systems.
III. Combustion system
1. Instrumented Manikin size are based on the height of 1.8 meters of adult men as the standard, with head, chest, back, belly, arms, hands, legs, feet, etc. Its shell is made of complete fire-proof, Thermal stability of non-metallic materials (specific specifications can be customized)
2. Thermal Flow Sensor is attached to the model surface can be accurately test surface temperature change.
3. The human body model joints can be adjusted to meet various customer requirements for special position testing of clothes (SKZ8088B only)
4. Heat flow sensor
The heat flow sensor is installed on the model surface to accurately test the surface temperature of the dummy.
SKZ8088 type: 130PCS
SKZ8088B type: 146PCS (including independent head and hand test area)
IV. 3D measuring system (SKZ8088B only)
Using human body clothing three-dimensional digital measurement technology to measure the shrinkage rate before and after burning
V. Computer control system and software
The use of self-developed software system to achieve full control of the entire computer experiment, data acquisition and analysis are done automatically by the computer.
Technical Parameters:
1. Combustion laboratory dimensions: 6400mm (length) × 4160mm (width) × 5300mm (height)
2. Number of flamethrowers: 12PCS
3. Burning dummy height: 175 ± 5 cm
4. The number of heat flow sensors: 130PCS (SKZ8088), 146PCS (SKZ8088B)
5. Heat flow sensor range: 0.0-167.0kW / m2
6. Heat flow sensor response time: ≤ 0.1s
7. Data collection cycle: ≤ 0.5s
8. The number of smoke sensors: 1PC
9. The number of propane concentration sensors: 5PCS
10. The number of flame sensors: 1PC
11. The number of wind speed sensors: 1PC
12. Fuel: 90% pure liquid propane
13. Test burning time: 5 ± 0.1s
14. The number of high pressure tanks: 3PCS (self-provided)
15. Buffer tank volume: 3×0.3m3
16. Buffer tank pressure: 0.3 ~ 0.4MPa
17. Flame gas pipeline pressure:: 0.2 ~ 0.3MPa
18. Ignition pipe gas pressure: 0.1 ~ 0.2MPa
19. Combustion laboratory fan power: 5.5kW
20. Fuel room fan motor power: 0.75kW
