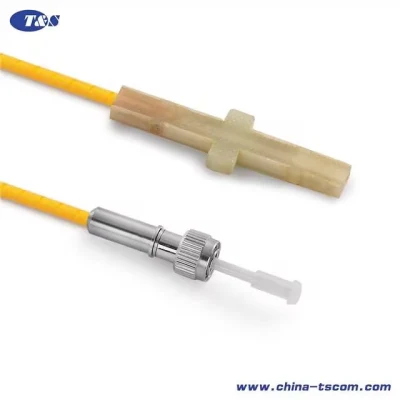

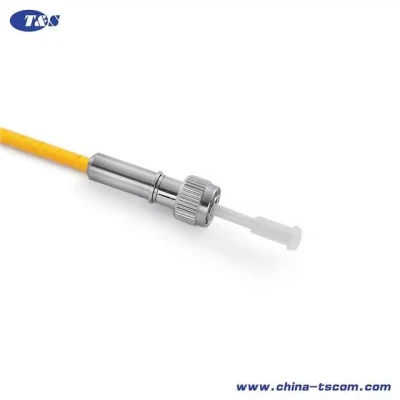

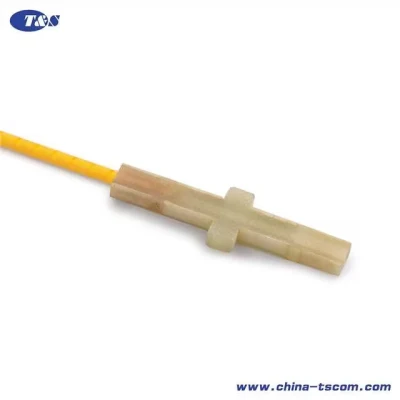

T14 Fbg Fiber Bragg Grating Temperature Sensor Temperature Range -20º C~300º C for High Voltage Transformer Temperature Measurement, #M0008
T14 Fbg Fiber Bragg Grating Temperature Sensor for High Voltage Transformer Temperature Measurement. Factory direct, -20°C~300°C range. #M0008
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Features
  • Applications
  • Specification
Overview

Basic Info.

Model NO.
T14
Output Signal Type
Optical Signal
Production Process
Encapsulated Fbg
Material
Fiber Optic Cable
Measuring Medium
Temperature
Certification
RoHS
Customized
Customized
Measuring Resolution
0.1 Degree Celsius
Measuring Accuracy
+/-1 Degree Celsius
Measuring Range
-20~300 Degree Celsius
Dimension
52mm×7.5mm×4mm
Transport Package
Plasitc Box
Trademark
Customized
Origin
China
HS Code
8517799000
Production Capacity
5000PCS Per Month

Packaging & Delivery

Package Size
20.00cm * 15.00cm * 5.00cm
Package Gross Weight
0.300kg

Product Description

Product Description

Encapsulated with foreign imported packaging materials, T14 FBG temperature sensor takes fiber Bragg grating string as the temperature sensing unit, which is featured by excellent performance in high voltage resistance, breakdown resistance, creepage resistance and its good temperature characteristics. T14 is therefore perfectly suitable for internal temperature monitoring of UHV oil immersed transformer.

Encapsulated with foreign imported packaging materials, T14 FBG temperature sensor takes fiber Bragg grating string as the temperature sensing unit, which is featured by excellent performance in high voltage resistance, breakdown resistance, creepage resistance and its good temperature characteristics. T14 is therefore perfectly suitable for internal temperature monitoring of UHV oil immersed transformer.

Features

High reliability
High safety
No change to the transformer electric field distribution
No effect the transformer insulation strength

Applications

Oil immersed transformer hot spot temperature monitoring
Oil immersed reactor hot spot temperature monitoring

Specification


Item Unit Specification
Temperature Range °C -20~300
Temperature Accuracy °C ±1
Measuring Resolution °C 0.1
Central Wavelength nm 1510~1590
Dimension mm 52×7.5×4
Connector Type - FC/APC or Customized
Cable Jacket - Ø3mm Spiral Tube

Please visit T&S Communications Co., Ltd. website for more information.
