Basic Info.
Model NO.
BGS-S10P
Material
Plastic
Feature
Background Suppression
IP Rating
IP65
Certification
ISO
Customized
Customized
Shape
Square Shape Photoelectric Sensor
Sensing Objects
White Paper, Black Paper or Others
Output
PNP Light-on/Dark-on Selectable
Mounting
Diffuse Reflex
Sensing Distance
10-100mm Adjustable
Power Supply
12-24VDC
Frequency
2kHz
Light Source
Red Light 650nm
Certificate
Ce, RoHS ISO
Consumption Current
15mA Max
Load Current
100mA Max , 24VDC
Response Time
0.5ms Max
Working Temperature
-10 to 50 Degree
Protection
Reverse Polarit Protection
Wiring
DC 3 Wires 2m Cable Length
Transport Package
Carton
Trademark
F&C
Origin
China
HS Code
8536500000
Production Capacity
5000PCS/Month
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
0.500kg
Product Description

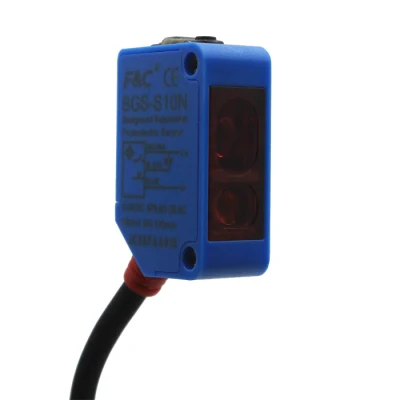

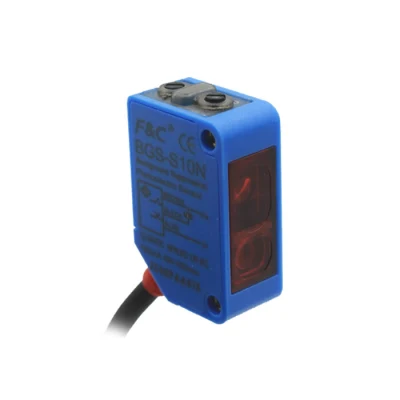

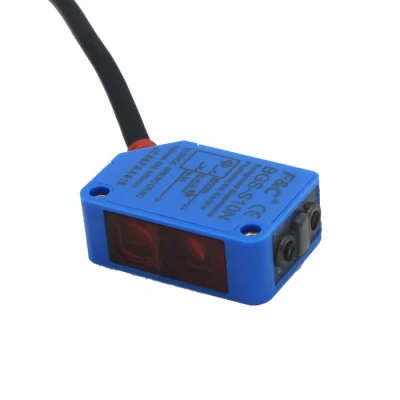

12-24V PNP Sensors Position Judgement Optical Sensor for Dark colors
Features:
1. Backing suppression design.10-100mm distance setting, Stable and fast detection for both black color and white color objects, donot effected by colors.
2. High repeat accuracy compare to other series and frequency 2KHZ.
3. Industrial EMC Standard.
4. Visible red light source 650nm, More convinent to adjust the ideal sensing distance.
5. Both PNP and NPN type available, ligh-on/dark-on selectable Diffuse reflective photoelectric sensor.
F&C Sensing Technology is a high-tech enterprise, specialized in R&D, manufacturing and marketing industrial automation control sensors which is mainly for limit protection, counting and presence or absence judgement.There are 14 series and around 5000 models available, based on Changsha, Dongguan and Taiwan, F&C sensors and our authorized distributors around the world are dedicated to provide wonderful one-stop-service to all the customers.Our main products include Fiber optic sensor, Fiber Unit, proximity sensor,photoelectric sensor, light curtain, label sensor, pressure switch, magnetic switch, din-rail power supply etc.And producing is strictly correspond with ISO9001, ISO14001 and OHSAS18001.
Photoelectric Sensor Switch factory Office, exhibition, staffs & customers

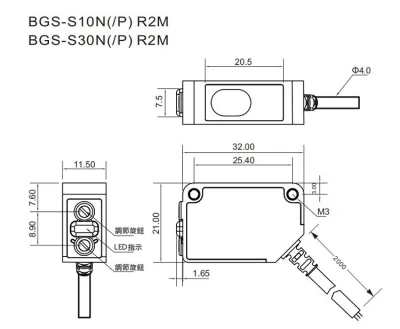

| Model | Reflection | Sensing Distance | Voltage | Output |
| BGS-S10 R2M | Diffuse reflection | 10-100mm adjustable | 12-24VDC | NPN NO.NC |
| BGS-S10P R2M | Diffuse reflection | 10-100mm adjustable | 12-24VDC | PNP .NO.NC |
Features:
1. Backing suppression design.10-100mm distance setting, Stable and fast detection for both black color and white color objects, donot effected by colors.
2. High repeat accuracy compare to other series and frequency 2KHZ.
3. Industrial EMC Standard.
4. Visible red light source 650nm, More convinent to adjust the ideal sensing distance.
5. Both PNP and NPN type available, ligh-on/dark-on selectable Diffuse reflective photoelectric sensor.
F&C Sensing Technology is a high-tech enterprise, specialized in R&D, manufacturing and marketing industrial automation control sensors which is mainly for limit protection, counting and presence or absence judgement.There are 14 series and around 5000 models available, based on Changsha, Dongguan and Taiwan, F&C sensors and our authorized distributors around the world are dedicated to provide wonderful one-stop-service to all the customers.Our main products include Fiber optic sensor, Fiber Unit, proximity sensor,photoelectric sensor, light curtain, label sensor, pressure switch, magnetic switch, din-rail power supply etc.And producing is strictly correspond with ISO9001, ISO14001 and OHSAS18001.
Photoelectric Sensor Switch factory Office, exhibition, staffs & customers
