Product Description
HRTM030-01 5V Power Supply RS485 Temperature Sensor Modbus Temperature Humidity Sensor

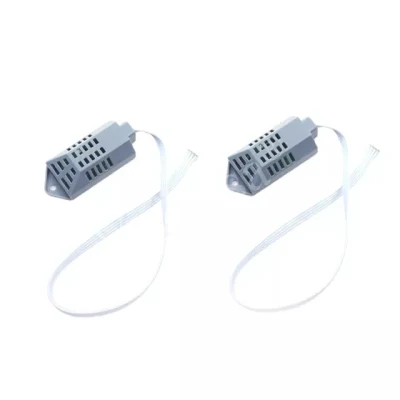

HRTM030-01 5V Power supply RS485 modbus temperature sensor modbus temperature humidity sensor (also called temperature and humidity module) HRTM030 is a kind of temperature and humidity sensor.It is widely used in the electronic, textile, storage, tobacco, pharmaceutical and other industries.The sensor has good consistency and strong stability.
| Temperature sensitive element | Imported thermistor |
| Humidity sensor | Imported humidity sensitive resistance |
| Input mode | Rs-232 / rs-485 (default rs-485) |
| Address code of the beacon module | 1 ~ 32(default: 1) |
| Volume baud rate | 9600/19200/38400(default: 9600) |
| DC power supply voltage | DC 5V±10% |
| Power consumption | < 0.1w |
| Temperature detection range | - 20 ~ 80 ºC |
| Pet-name ruby temperature accuracy | ±0.5ºC |
| Humidity detection range | 0 ~ 100%RH |
| Humidity detection accuracy | ±5%RH |
| Resolution | 0.1 ºC (temperature) 0.1% RH (humidity) |
| Long-term stability: | 0.1 ºC / y (temperature) 1% RH/y (humidity) |
| Response time | < 15 s (1 m/s wind speed) |
HRTM030-01 5V Power supply RS485 modbus temperature sensor modbus temperature humidity sensor precautions:
1) Avoid opening the sensor case to avoid touching the wetted components;
2) Avoid using the components for a long time in the environment of condensation and drying and containing strong oxidizing gases
such as salt spray, sulfur dioxide, hydrochloric acid;
3) Avoid reverse polarity of the power supply

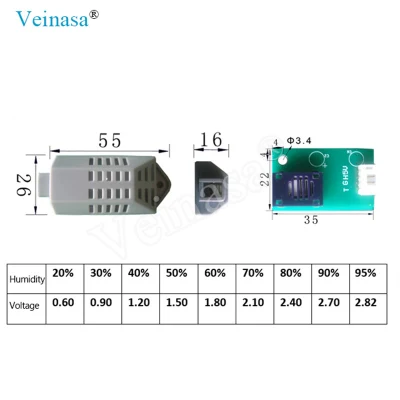

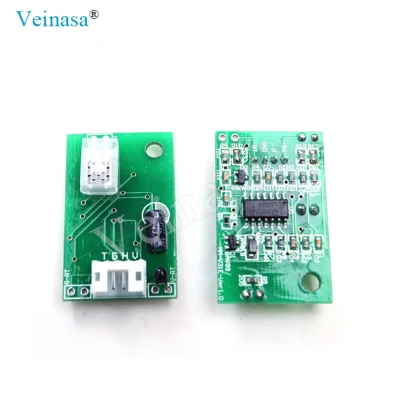

Terminal description:
V: power supply (5V) positive
H: Humidity voltage output
G:Power (5V) ground
T:NTC partial pressure output
1. Warehousing
2. Tobacco
3. Pharmaceutical
4. Temperature and humidity instruments
5. Humidification equipment
6. Dehumidification equipment
7. High-grade air conditioners and other products.
8. Smart Building
9. Steel industry
2. Tobacco
3. Pharmaceutical
4. Temperature and humidity instruments
5. Humidification equipment
6. Dehumidification equipment
7. High-grade air conditioners and other products.
8. Smart Building
9. Steel industry
Q: Are you a factory/manufacturer?
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used weather station AWS005S.
Q: What should I pay attention to when I use this temperature and humidity sensor?
A: You have to pay attention to the following aspects:
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used weather station AWS005S.
Q: What should I pay attention to when I use this temperature and humidity sensor?
A: You have to pay attention to the following aspects:
1) Do not the sensor housing to avoid touching the wet element;
2) Avoid the use of the components in the environment with strong oxidizing gas such as salt fog, sulfur dioxide and hydrochloric
acid.
3) Do not reverse the positive and negative power of the power supply.
2) Avoid the use of the components in the environment with strong oxidizing gas such as salt fog, sulfur dioxide and hydrochloric
acid.
3) Do not reverse the positive and negative power of the power supply.
Q: What's the lifetime of HRTM030-01?
A: At least 5 years long.And each sensor has its own calibration certificate or testing report.
Q: What's the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your the quantity you want.
