Basic Info.
Model NO.
PU07-TDPO
Certification
ISO, RoHS, CE, UL, Ukca, Reach
Sensing Distance
7mm (Adjustable)
Output
No/ Nc (Depends on Part Number)
Supply Voltage
10-30 VDC
Load Current
Less Than 200mA
Protection Degree
IP64
Material
PBT
Residual Voltage
Less Than 2.5V
Repeated Accuracyconsumption Current
Less Than 15mA
Connection
2m PVC Cable
Circuit Protection
Surge Protection, Reverse Polarity Protection
Response Time
Less Than 1ms
Transport Package
Standard Package: 1 Pieces / Bag
Specification
50.5 mm *25 mm *16mm
Trademark
LANBAO
Origin
Shanghai
HS Code
9031809090
Production Capacity
5000000 Pieces/Year
Product Description

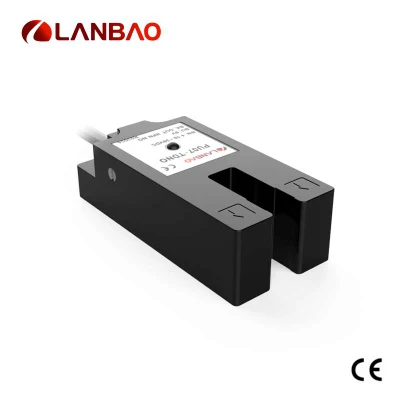

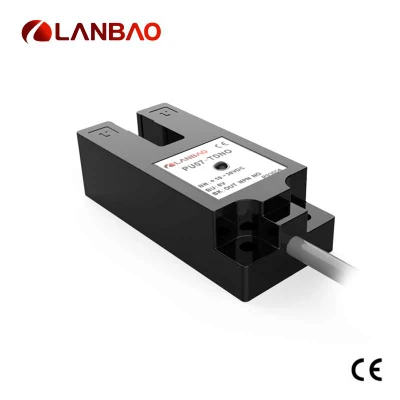

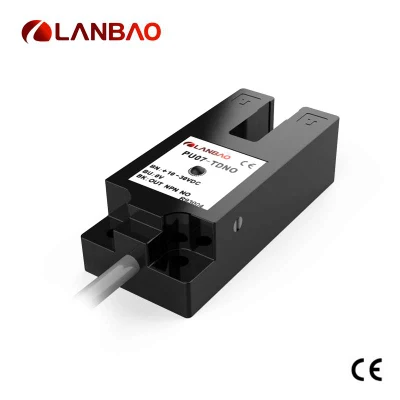

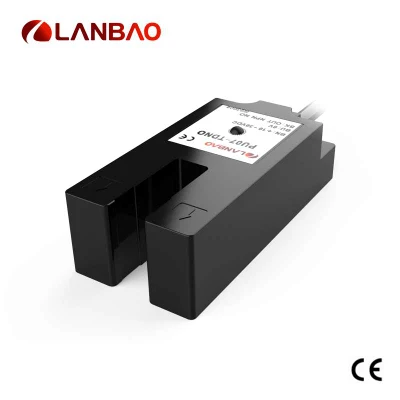

PU07-TDPO Slot Photoelectric Optical Proximity Position Sensor with U Shape
1. Small size, fixed distance detection;;
2. Excellent anti-interference performance ;
3. High detection accuracy;
| Through beam | ||||
| NPN NO | PU07-TDNO | PU15-TDNO | PU30-TDNB | PU30S-TDNB |
| NPN NC | PU07-TDNC | PU15-TDNC | PU30-TDNB 3001 | PU30S-TDNB 1001 |
| PNP NO | PU07-TDPO | PU15-TDPO | PU30-TDPB | PU30S-TDPB |
| PNP NC | PU07-TDPC | PU15-TDPC | PU30-TDPB 3001 | PU30S-TDPB 1001 |
| Technical specifications | ||||
| Detection type | Through beam | |||
| Rated distance [Sn] | 7mm (adjustable) | 15mm (adjustable) | 30mm (adjustable or nonadjustable) | |
| Standard target | >φ1mm opaque object | >φ1.5mm opaque object | >φ2mm opaque object | |
| Light source | Infrared LED (modulation) | |||
| Dimensions | 50.5 mm *25 mm *16mm | 40 mm *35 mm *15 mm | 72 mm *52 mm *16 mm | 72 mm *52 mm *19 mm |
| Output | NO/NC (depends on part No.) | |||
| Supply voltage | 10…30 VDC | |||
| Load current | ≤200mA | ≤100mA | ||
| Residual voltage | ≤2.5V | |||
| Consumption current | ≤15mA | |||
| Circuit protection | Surge protection, Reverse polarity protection | |||
| Response time | <1ms | Action and reset less than 0.6ms | ||
| Output indicator | Yellow LED | Power indicator:Green;Output indication:Yellow LED | ||
| Ambient temperature | -15ºC…+55ºC | |||
| Ambient humidity | 35-85%RH (non-condensing) | |||
| Voltage withstand | 1000V/AC 50/60Hz 60s | |||
| Insulation resistance | ≥50MΩ(500VDC) | |||
| Vibration resistance | 10…50Hz (1.5mm) | |||
| Degree of protection | IP64 | IP60 | IP66 | |
| Housing material | PBT | Aluminum alloy | PC/ABS | |
| Connection type | 2m PVC cable | |||
Dimension
Wiring diagram
Our standard products already obtained ISO9001, ISO14001, ISO45001, OHSAS18001, CE, UL ,CCC,ROHS certificates.
We are the first Chinese sensor manufacturer who designs our own smart production workshop:totally 40
products lines including complete production lines which worked with Mitsubishi (Japan). 200 staffsin
production line and 3million products per year.
Factory process
Packing Packaging is designed according to specific products for better protection.
International Exhibitions We attend about 10 international exhibitions every year , for example, IAS(Shanghai), IMTS (US),
SPS(Germany),SPS (Guangzhou) and other industrial shows (textile, robot, elevator, logistic etc.) .As a
professional sensor manufacturer with core competitiveness and complete value chain, our products sell
well in more than 100 countries in the world, allowing more customers to appreciate the charm of "passing the
world, sensing the future".
Our partners Specializing in precision,Lanbao always adheres to the business philosophy of"Quality First,
Reasonable Price, Prompt Delivery, and Attentive Service", maximize the needs and continuously
create long-term value and potential growth forcustomers.With comprehensive and efficient services,
Lanbao's footprint has now spread to more than 100 countries and regions around the world such as US,
Canada, Germany Thailand etc.
About Us Shanghai Lanbao sensing technology Co.,Ltd, member of China Instruments Manufacturers Association
Governing Units,established in 1998 in Shanghai, a leading domestic industrial automation product
supplier,specializing in the research,development, production, sale and service of industrial sensors,
sensor measurement and control systems.
Our products cover over 30 series, 5000 specifications, including inductive sensor, photoelectric sensor,
capacitivesensor,light curtain,laser distance measuring sensors. Our products are widely used in
warehouse logistics, parking, elevator,packaging,semi conductor, drone, textile, construction machinery,
rail transportation,chemical, robot industry.
