24GHz K Band Traffic Speed Measurement Radar Sensor

Get accurate traffic speed measurement with our 24GHz K Band Traffic Speed Measurement Radar Sensor. We are a factory dedicated to quality radar products.
Request a Quote


  • Overview
  • Company Profile
  • Product Description
  • Product Parameters
  • Certifications
  • Our Exhibition
  • Test Equipment
  • After Sales Service
  • FAQ

Basic Info.

Model NO.
Detection Range
Transmit Frequency
Detection Target
Speed Range
Protection Class
Transport Package
Packed by Carton
Production Capacity

Product Description


Company Profile


24GHz K Band Traffic Speed Measurement Radar Sensor

Hunan Nanoradar Science and Technology Co., Ltd is a subsidiary of Novasky, which is established in 2012 which is specialized in developing, producing and selling millimeter wave radar for security, UAV, Automotive, Smart Traffic and other industrial application, our radar sensor is covering 24GHz, 77GHz and 79GHz, we are successfully developed 10+ models MMV radar products which is mainly based on the MIMO system ray and cognitive radar technology.

Nanoradar's radar sensor detect range is 30-450meters, the accuracy is up to 85% for security radar to identify human, our product is hot-selling in the United of American, Korea, The united of Kingdom, France etc. Nanoradar is a major MMV radar manufacture in China.

Product Description


24GHz K Band Traffic Speed Measurement Radar Sensor

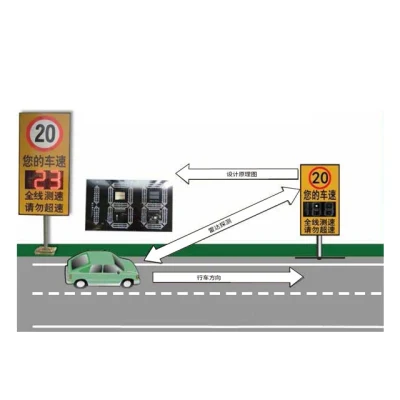

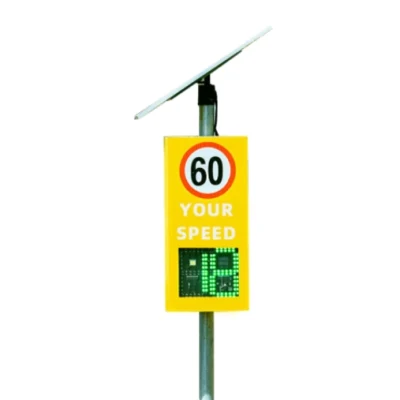

Radar speed signs are usually installed in areas where speeding is a concern or where vehicles come in close proximity to pedestrians such as school zones, construction zones, residential areas, and college campuses. In some instances, these signs are used to gather information to see if additional traffic control measures are needed.


The speed sign system is made up of following:

Speed detection: Traffic speed radar

Video Records: Camera, Lights

Front Data Process

Unit: Identification on Server

Networking Unit: Switch, Optical Transmitter & Receiver

Multiple installation is controlled at the management center.

Product Parameters

Transmit frequency  24GHz
Transmit power(EIRP)  20dBm
Response time  20ms
Transmit frequency error  -45~40MHz
Power  1.6W
Communication interface  RS484/RS232/Wifi/L(H) level
Speed range  10~300km/h
Speed accuracy  -1~0km/h
Direction  Coming/going direction could be distinguish
Distance range  15~150meters
Distance accuracy  ±0.5meter
Beam width/TX Azimuth(-6dB)7deg
Working voltage  9~16V DC
Working current  0.13A@12V DC
Working temperature  -40~85ºC
Working humidity  5%~95%RH
Size  148*124.5*26.5mm
Protection class  IP66


24GHz K Band Traffic Speed Measurement Radar Sensor

Nano Radar Advantages:

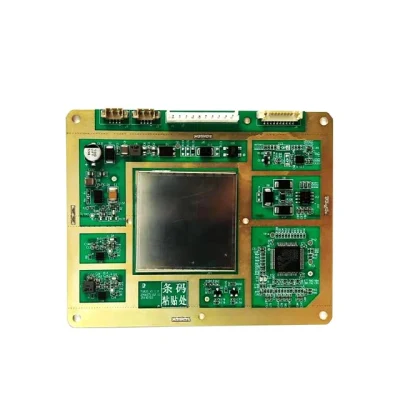

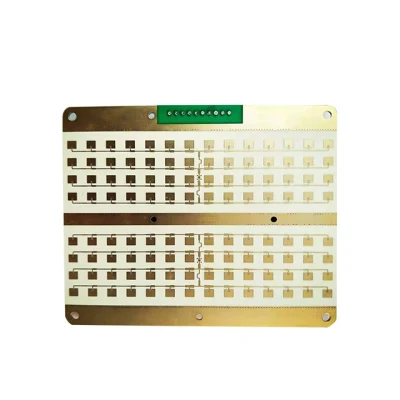

*Adopt 24 GHz MMIC Technology

*Small size, light weight and convenient installation

*Accurate speed measurement and difference within 1km/h

*Trigger distance up to 250-300 Speed measurement range: 10-300km /

*Multiple lanes supported

*All weather resistance, not affected by light, dust, rain, snow, haze and other harsh environment




Installation Cases on Real Site

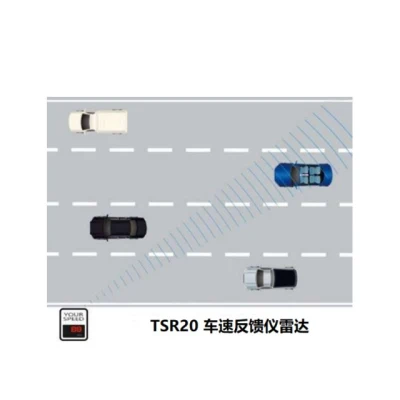

 TSR20 speed detection radar adopts CW modulation to realize the speed measurement. It is mainly deployed in expressway, ordinary highway, community gate, corner intersection and school road section etc to accurately detect and display vehicle speed, timely remind drivers of over-speeding, so as to effectively reduce road traffic accidents.24GHz K Band Traffic Speed Measurement Radar Sensor



24GHz K Band Traffic Speed Measurement Radar Sensor

Our Exhibition

24GHz K Band Traffic Speed Measurement Radar Sensor

Test Equipment

24GHz K Band Traffic Speed Measurement Radar Sensor

After Sales Service

24GHz K Band Traffic Speed Measurement Radar Sensor



1 Q:Do you have any discount?

A:Yes, if you buy large QTY, please send us a email, we will give you a big discount.


2 Q:What's the delivery time?
A:According to the specification and quantity of your order, generally 7-10 days for normal
standard products within 50pcs.


3 Q:Do you have overseas distributor?
A:Yes,we have distributors in Korea, Singapore, Malaysia, UK and so on.


4 Q:Can we use our logo on the products?
A:Yes.We can provide OEM and sign a licensing agreement.


5 Q:Are you manufacturer or trading company?
A:We are manufacturer with 15 years of experience.Welcome to visit our company.


6 Q:Do you have any certification?
A:Yes,according to the different products,overpass CE, RoHS, ISO, Ex,Ul etc,we can offer certificates.


7 Q:How the stability of products?
A:3~5 years is ok in normal situation.


8 Q:What's the means of transport?
A:Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
