Basic Info.
Model NO.
BH-485-pH
Communication Mode
RS485(Modbus RTU)
Size
230mm*30mm
Material
ABS
Transport Package
Carton Box
Specification
SGS, CE, ISO9001
Trademark
BOQU
Origin
Shanghai, China
HS Code
90278099
Production Capacity
1000piece/Month
Product Description
Summary

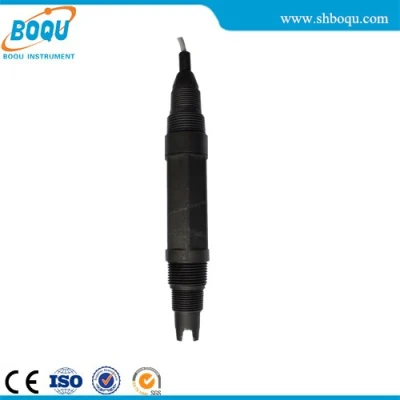

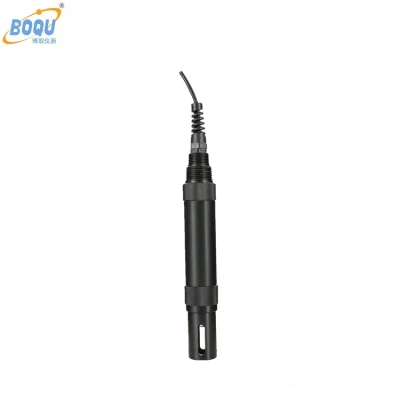

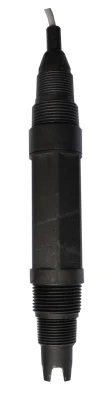

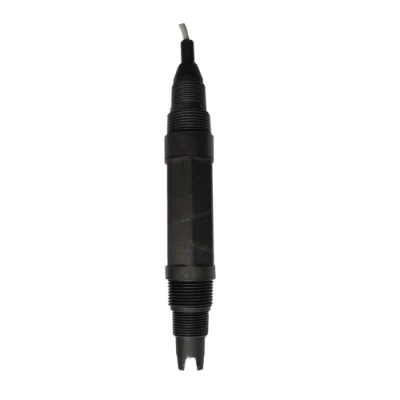

BH-85 Series of online pH electrode, adopt electrode measuring method, and realizes the automatic temperature compensation in the interior of the electrodes, Automatic identification of standard solution. Electrode adopt imported composite electrode, high precision, good stability,long lifetime, with rapid response, low maintenance cost, real-time online measurement characters etc.. The electrode using standard Modbus RTU (485) communication protocol, 24V DC power supply, four wire mode can very convenient access to sensor networks.
Characters
·The characteristics of industrial sewage electrode, can work stably for a long time
·Built in temperature sensor, real-time temperature compensation
·RS485 signal output, strong anti-interference ability, the output range of up to 500m
·Using the standard Modbus RTU (485) communication protocol
·The operation is simple, the electrode parameters can be achieved by remote settings, remote calibration of electrode
·24V DC power supply.
Technical specifications
BH-85 Series of online pH electrode, adopt electrode measuring method, and realizes the automatic temperature compensation in the interior of the electrodes, Automatic identification of standard solution. Electrode adopt imported composite electrode, high precision, good stability,long lifetime, with rapid response, low maintenance cost, real-time online measurement characters etc.. The electrode using standard Modbus RTU (485) communication protocol, 24V DC power supply, four wire mode can very convenient access to sensor networks.
Characters
·The characteristics of industrial sewage electrode, can work stably for a long time
·Built in temperature sensor, real-time temperature compensation
·RS485 signal output, strong anti-interference ability, the output range of up to 500m
·Using the standard Modbus RTU (485) communication protocol
·The operation is simple, the electrode parameters can be achieved by remote settings, remote calibration of electrode
·24V DC power supply.
Technical specifications
| Model | BH-485-pH |
| Parameter measurement | pH,Temperature |
| Measure range | pH:0.0~14.0 Temperature:(0~50.0)ºC |
| Accuracy | pH:±0.1pH Temperature:±0.5ºC |
| Resolution | pH:0.01pH Temperature:0.1ºC |
| Power supply | 24V DC |
| Power dissipation | 1W |
| communication mode | RS485(Modbus RTU) |
| Cable length | Can be ODM depend on user's requirements |
| Installation | Sinking type, pipeline, circulation type etc. |
| Overall size | 230mm×30mm |
| Housing material | ABS |
