Product Description

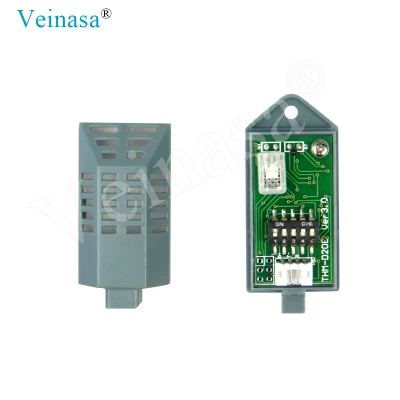

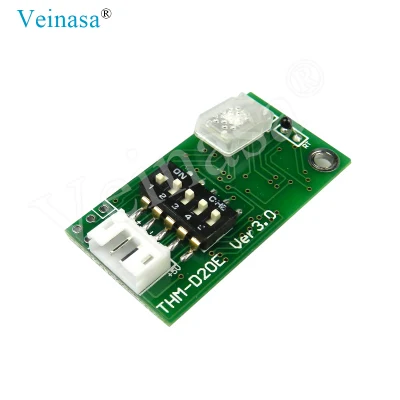

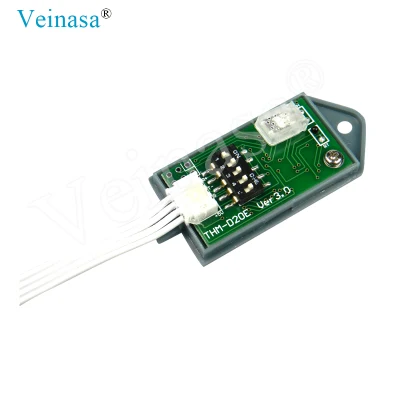

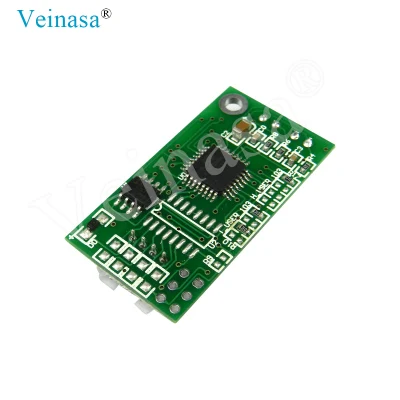

HRTM030 Temperature Intelligent Integrated Transmitter Control and Humidity Module Sensor for Farm
HRTM030 Temperature Intelligent Integrated Transmitter Control and Humidity Module Sensor for Farm for Farm is a kind of temperature and humidity module.It is built in temperature and humidity instruments, humidification equipment, dehumidification equipment, high-end air conditioners and other products, they are widely used in storage, tobacco, and pharmaceutical industries.
| Humidity sensor | polymer humidity sensitive resistor |
| Temperature sensing element | NTC thermistor, 10K±1%, B value = 3950K ± 1% |
| Power supply | 5VDC ± 5% |
| Power consumption current | 5mA max. (2mA avg.) |
| Measurement range | Humidity: 10% - 95% RH |
| | Temperature: 0 -50ºC |
| Measurement accuracy | Humidity: ±3%RH (25ºC, 60% RH, input voltage=5V) |
| | Temperature: ±1ºC |
| Humidity output signal | 25ºC, input voltage = 5V, output voltage unit (V) |
| Wiring length | 300MM, other lengths can be customized |
1) Avoid opening the sensor case to avoid touching the wetted components;
2) Avoid using the components for a long time in the environment of condensation and drying and containing strong oxidizing gases
such as salt spray, sulfur dioxide, hydrochloric acid;
3) Avoid reverse polarity of the power supply
Thermistors with different center resistance and B value can be selected as needed
V: power supply (5V) positive
H: Humidity voltage output
G:Power (5V) ground
T:NTC partial pressure output
Veinasa-HRTM030 Temperature Intelligent Integrated Transmitter Control and Humidity Module Sensor for Farm can be applied to the following fields: 2. Tobacco
3. Pharmaceutical
4. Temperature and humidity instruments
5. Humidification equipment
6. Dehumidification equipment
7. High-grade air conditioners and other products.
8. Smart Building
9. Steel industry
Q: Are you a factory/manufacturer?
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used weather station AWS005S.
Q: What should I pay attention to when I use this temperature and humidity sensor?
A: You have to pay attention to the following aspects:
1) Do not the sensor housing to avoid touching the wet element;2) Avoid the use of the components in the environment with strong oxidizing gas such as salt fog, sulfur dioxide and hydrochloric acid.
3) Do not reverse the positive and negative power of the power supply.
Q: What's the lifetime of HRTM030?
A: At least 5 years long.And each sensor has its own calibration certificate or testing report.
Q: What's the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your the quantity you want.
