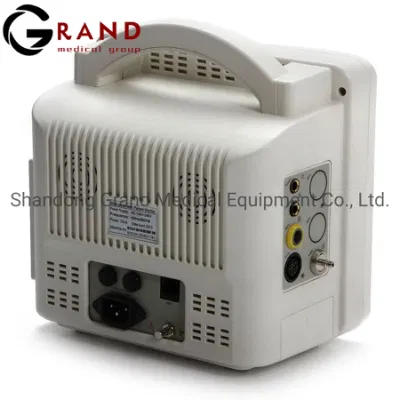

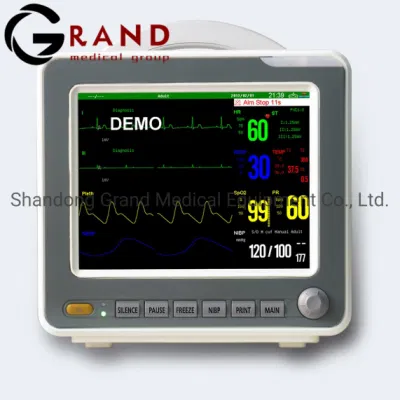

Medical Device 8.4inch Vital Sign Patient Portable Monitor for Hospital

Grand Medical Group patient monitor advantages


1. High resolution LCD, LED display (optional:touch screen)
2. Using the international top leading MIT/BIH database, the accuracy of QRS detection is 99.8%.
3. Powerful software and hardware operating platform, the blood pressure adopts digital signal processing algorithm, it can get effective filtering motion interference, the measurement is more accurate.
4. New blood oxygen simulation technology: anti-jitter, anti-movement, anti-weak perfusion, more accurate measurement.
5. The Automatic temperature-controlled fan design reduces the working noise of the instrument, and can get longer service life span.
6. Low power consumption and high stability: Grand patient monitor adopts embedded operating platform . And the monitor can start up on 5 seconds.
7. Spo2 oxygen saturation and pulse: advanced DSP .The algorithm can reduce the influence of motion artifact and improve measurement accuracy in case of weak perfusion.
8. NIBP non-invasive blood pressure: Digital signal processing algorithm, effective filtering motion interference, adaptive waveform adjustment algorithm, automatic adjustment of signal amplitude, improve the weak perfusion signal processing ability.

                                                                Model: Mino8V




Standard parameters: 5-lead ECG, RESP, HR, NIBP, SPO2(F-5), 1-TEMP, PR;
Optional: Touch Screen, Thermal Recorder, 3/12- lead ECG, SD card, 2/ 4-IBP,EtCO2, SpO2(F-6)

Performance Specifications
Display:       8''color TFT
Rolling and refreshing waveform display
Resolution: 800×600
Multi display selectable including:
Large-font display
Trend coexist display
OxyCRG dynamic view display.
Bed-to-bed view display
Trace:             7 waveforms(5 ECG, 1 SPO2 and 1 RESP)
Sweep speed:6.25mm/s, 12.5mm/s,25mm/s,50mm/s
Indicator:          Power/battery indicator light
QRS beep and alarm sound
Battery:           Rechargeable lead acid cell, 12v/4AH
Max.24 hour for charging, 4 hours for continue working
Trend:             Parameter graphic and tabular trends:
5s/piece,8 hours;
1min/piece,168 hours(24hour×7days)
5min/piece,1000 hours.

Storage:           NIBP:1000 groups
Alarm:200 groups
Full disclosure waveforms: 3600S
Alarm:         User-adjustable High, Medium and Low limits 3-level Audible and visual alarm
Networking:        Connected to central monitoring system
TCP/IP netting platform
Recorder:         Build-in, thermal array
Plethysmogram caveform:2 channels
Record mode: manual, on alarm, time-defined
Recording width: 50mm
Printing speed: 50mm/s
Recording type:     Frozen waveform record
NIBP recall record
Trend table record
Alarm record
Fixed -time record


Standard Parameter:

ECG:

Lead mode: 5 -lead(R,L,F,N,C)
Lead selection : I,II,III,avR,avL,avF,V
Waveform:     3 and 7 channel selectable
Gain selection: 0.5mm/mv,1mm/mv,2mm/mv
Sweep speed: 12.5mm/s;25mm/s;50mm/s
Heart rate range:     Adult: 15~300bpm; Neonate:/pediatric:15~350bpm
Accuracy: +1bpm or +1%,whichecer is greater
Resolution:     1bpm
Filter: surgery mode:1~20Hz
monitor model:0.5~40Hz
Diagnostic mode:0.05~130Hz
Scaling signal: 1mv,+3%
Protection:       withstand 4000VAC/50 voltage isolation against electrosurgical interference and defibrillation
Alarm range: 15~350bpm
S-T segment detecton:
Measurement range:  2.0mV~+2.0mV

 Alarm Range:         -2.0mV~ +2.0mV
Accuracy:            -0.8mV ~+0.8Mv
Error:               +0.02Mv

Arrhythmia analysis: YES

SPO2
Measurement range:        0~100%
Resolution:                1%
Accuracy:                 +2%(70-100%);0-69% unspecified
Alarm range               0~100%
Pluse Rate:                range:20~300bpm
Resolution:1bpm
Error:+1bpm or +2%,whichever is greater

NIBP
Method:                   Digital Automatic oscillometric
Operation mode :           Manual/Automatic/continuous
Auto measurement time:     Adjustable(1~480min)
Measurement Unit:         mmHg/Kpa selectable
Measurement types:         Systolic, Diastolic, Mean
Measurement tange:
Range of Systolic pressure:   Adult: 40~270mmHg
Pediatric: 40~220mmHg
Neonate: 40~135mmHg
Range of mean pressure:     Adult: 20~235mmHg
Pediatric: 20~165mmHg
Neonate: 20~110mmHg
Range of diastolic pressure:   Adult: 10~215mmHg
Pediatric: 10~150mmHg
Neonate :10~100mmHg
Over-pressure protection:     Double safety protection
Resolution:                 1 mmHg
Alarm:                    Systolic.Diastolic,Mean


RESPIRATION
Method:                     Thoracic impedance
Measurement range:           Adult:7~120rpm;
Neonate/Pediatric:7~150rpm
Apnea alarm:                 YES,10~40s
Resolution:                   1rpm
Accuracy:                    +2rpm


TEMPERATURE
Compatible probe:             YSI or CYF
Measurement range:           5~50ºC
Resolution :                   0.1ºC
Accuracy:                    +0.1ºC
Refreshing time:               about 1
Average measuring time:        <10s


Miscellaneous

Satety:
Safety level: Class I, type CF

Operation Environment
Temperature:     Working 0~+40ºC
Transportation and storage -20~+60ºC
Humidity:        working≤85%
Transportation and storage≤93%
Power:          AC 100-240,50/60Hz
Patient range:   Neonate, pediatric, adult patients


Accessories supplies
(1) 5 lead ECG cable
(2) 1 spo2 probes
(3) 1 NIBP prbe
(4) 1 temp probe
(5)1 ground connecting liner
(6) Chest electrode (10pcs/set)


The Characteristics and Introduction of Shandong GRAND Medical Group Patient Monitor

Shandong GRAND Medical Group owns the complete independent property rights of its products.
Our Patient monitor adopts a rigorous and flexible design concept:
  The advantages of discrete modules :
1) Reduce the mutual interference of different parameter units, especially the interference of ECG board, to ensure the accuracy and stability of measurement parameters.
2) After-sales maintenance is more convenient and cheaper.Only the failed module needs to be replaced. Compare with others, if there is a parameter on module damage, the whole parameter module has to be replaced, causing unnecessary waste and cost increase.

II. Powerful Functions
1) Blood oxygen modulation function. The host can automatically adjust the blood oxygen tone rate according to the change of blood oxygen value, and judge the patients' blood oxygen status from the doctor's voice.
2) Monitoring is equipped with drug concentration analysis and titration standard. It is the nurse's good helper.
3) Flexible and free interface selection, standard main interface, large font, short trend interface, same screen with seven channels (Cardiology Department). Respiratory oxygenation diagram (neonatology), maximum eight waveforms displayed (standard five parameters combined with IBP and EtC02 parameters in an interface display, it is adaptive for operating room).The client can modulate the waveform and number of the desired parameters in any interface
value.
4) The parameter waveform and the color of the parameter value can be set freely.Meet the personalized needs of medical personnel.
5) Waveform freezing function. The medical staffs can freeze the waveform anytime as they want to focus on analysis. For stationary analysis.
6) Powerful data storage function.Built-in 3600 second holographic waveform storage, plus external U disk, goods SD card storage.Datas can be stored and played back.
7) Battery power detection and alarm function. Ensure the continuity of monitoring.
8) Strong anti-defibrillation function. The comprehensive power isolation program ensures the monitor host can return to normal monitoring immediately when the patient defibrillates and the electrotome are used.
9) Central level networking function and subsequent software upgrades.Our company provides the latest version of the monitoring software for free.
10) Monitor standby function.This work can be used to block out  invalid data due to patients' activity or treatment during monitoring.
11) Power off storage.In the event of a sudden power outage or active shutdown, patients' data from the monitor will be permanently stored.
12) The monitoring host can be equipped with a medical cart to facilitate the transfer of patients.It Can be equipped with wall support to save ward space.

III. High precision parameter module.
The superiority of GRAND Patient Monitor lies in the accuracy of the monitoring data.

1. Bedside patient monitor (multi-parameter patient monitor) is applied to the general ward, and GRAND series can do better.We used the F-5 oxygenation module and the N-5. The blood pressure module has even been used in operating rooms by both domestic and foreign hospitals, so GRAND can do better for the requirements of general hospital wards. Recommended model: Grand120(12 inches) Grand100(10 inches)
2. The GRAND oxygen module F-6, which is specially equipped for operating rooms, it reaches the precise level of the USA Nellcor and can also be used by users with optional original import parameters like MASMIO/Nellcor.

The blood pressure module adopts the original imported module from Suntech. Achieve the world's top leading accuracy.
Optional accessories: Dual-invasive (2IBP), end-expiratory carbon dioxide (EtC02), anesthetic gas (AG), noninvasive cardiac output (ICG, Israel import), Cardiac output.
Recommended model: Grand150(15 inches)
3) Neonatal monitor. We can take the electrocardiogram out and make it a special alignment with only oxygen, blood pressure and body temperature. It is a simple version, saving cost for customers.
Adopts F-6 high-performance blood oxygen module, N-6 neonatal blood pressure module, or Suntech blood pressure module.
Recommended model: Grand180(8 inches) Our factory
