Basic Info.
Model NO.
ACE-LUX
Application
Energy Metering
Type
Vortex Flow Meter
Measuring Media
Gas
Measuring Principle
Mechanics
Measurement Object
Closed Pipeline
Certification
JIS, DIN, ANS, GB, CE, ISO
Transport Package
Paper Box; Pollywood Carton
Specification
Depends On Flow Meter Size
Trademark
ACE
Origin
Made in China
HS Code
9026100000
Production Capacity
30000 Sets/Year
Product Description

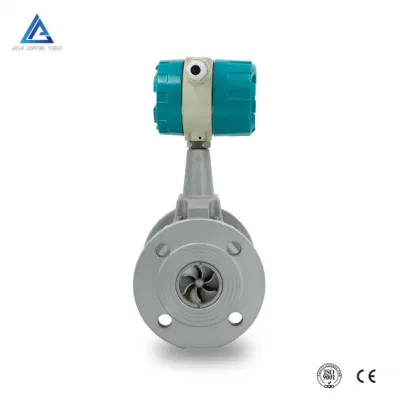

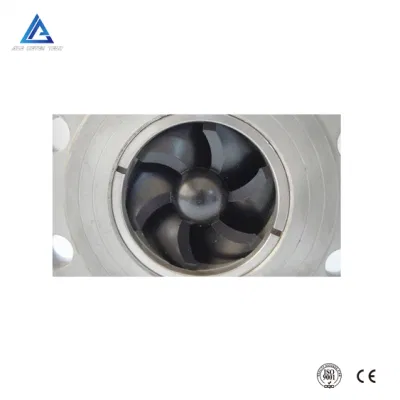

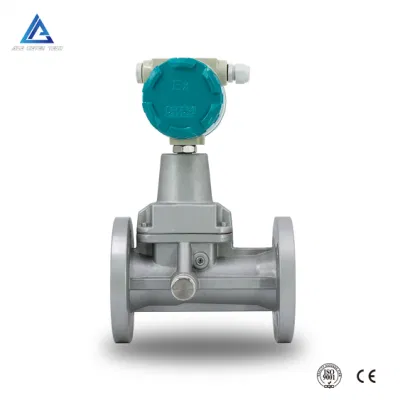

5% off Discount Price Oxygen gas flowmeter Vortex Precession Swril Flow Meter
| Item | Description |
| Type | Integrated Type |
| Available Medium | Gas, Oxygen |
| Range of Diameter | DN15-DN200 1/2"-8" |
| Accuracy | 1.50% |
| Measure Range Ratio | 1:10 |
| Medium Temperature | -20-80ºC |
| Rated Pressure Range | PN16(High Pressure Customize Available) |
| Body Material | Stainless Steel 304 |
| Aluminum Alloy | |
| Connection | Flange(GB,DIN,ANSI,JIS,HG or Customize) |
| Straight Pipe Section | 10*DN Upstream 5*DN Downstream |
| Display | LCD Display with Adjusting Button |
| Gas Temperature and Pressure Compensation(@20ºC,1 ATM) | |

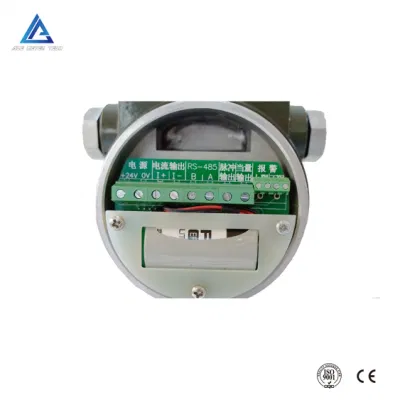

| Power Supply | 24VDC(8-36VDC) |
| 3.6V Lithium Battery(Life Time 2-3 Years) | |
| Signal Output | 4-20mA |
| Frequency/Pulse | |
| Communication Protocol | RS485 MODBUS |
| HART | |
| Electricity Entry | M20*1.5 |
| 1/2" NPT | |
| Protection Grade | IP65 |
| Explosion Proof Grade | ExdIIBT6(Sensor) Exd{ia}IICT4(Transmitter) |
5% off Discount Price Oxygen gas flowmeter Vortex Precession Swril Flow Meter
