Basic Info.
Model NO.
OPD790
Portable
Non Portable
Appliance
Food Analysis, Medical Research, Biochemistry, Industrial Water Treatment
Certification
ISO9001, CE, SGS
Measure Principle
Fluorescence Principle
Measuring Range
0~20mg/L
Resolution
0.01mg/L
Accuracy
± 0.1mg/L
Work Pressure
0~3bar
Material
PPS
Installation Size
1"NPT at Both Ends
Protection Level
IP68
Transport Package
Packaging
Trademark
daruifuno
Origin
China
HS Code
9026809000
Production Capacity
50000 Pieces/Year
Packaging & Delivery
Package Size
23.00cm * 16.00cm * 8.00cm
Package Gross Weight
2.000kg

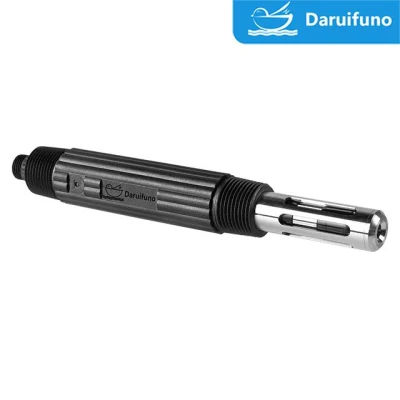

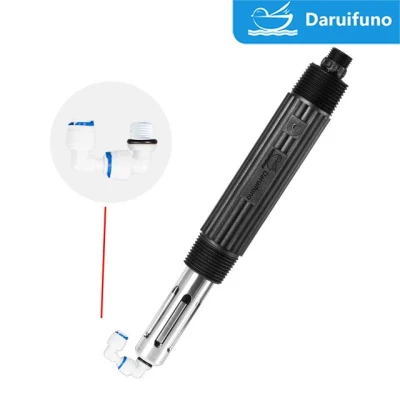

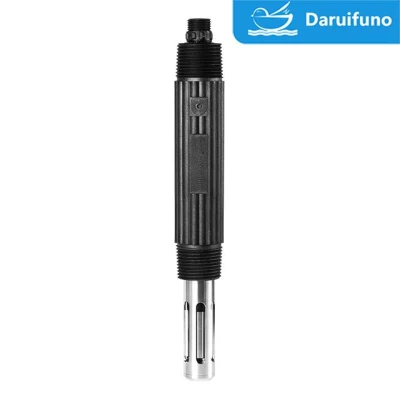

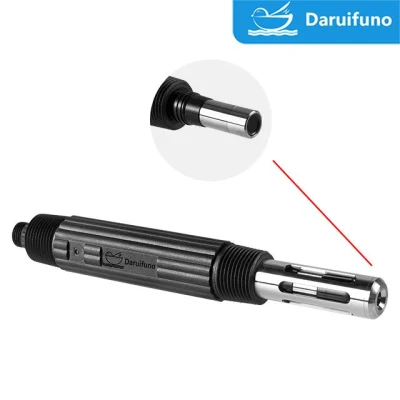

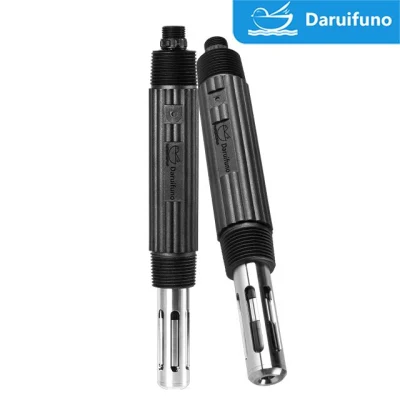

Product Description
Features
Meet the requirements of field work and short-term or long-term operations.
without consuming oxygen, especially when the oxygen concentration is very low.
All-in-one package, can be conveniently used with the online transmitters, DTU, and portable instruments.
RS485 digital interface, standard Modbus protocol, support access to standard industrial control system.
The protection grade is IP68, can work under water continuously.
Internal storage of calibration data, support offline calibration, plug and play on site.
Specification
| Product Model | OPD790 |
| Measuring range | Oxygen content: 0.00~20.00 mg/L saturation: 0~200% |
| Resolution | 0.01mg/L 1% |
| Accuracy | ± 0.1 mg/L |
| Response Time | 90% of the value in less than 30 seconds |
| Compensation | Automatic temperature compensation, salinity and pressure compensation |
| Calibration Method | Zero and span calibration |
| Work Pressure | 0~3Bar |
| Operating Temperature | 0.0~50.0ºC |
| Material | PPS |
| Dimensions | Diameter: 35mm, total length: 260mm |
| Installation Size | One inch 1"NPT at the beginning and end of the installation thread |
| Protection level | IP68 |
| Weight | 170g |
