Basic Info.
Model NO.
MOT500-O2
IP Rating
IP 65
Explosion Proof Sign
Exdll CT4 (Ia)
Power
24VDC
Analog Digital Output
4-20mA Output(0-5V,0-10V Optional)
Material
Aluminum,Explosion and Corrosion Proof
Operating Pressure
0-200kpa
Modbus Digital Output
RS485 Output
Relay Output
2-3 Relays Output
Display
LCD Displayed
Sampling
Diffusion
Transport Package
Standard Carton Packaging 26*21*14cm
Specification
Product size: 20*17*8cm
Trademark
Korno or customized
Origin
China
HS Code
9027100010
Production Capacity
10000pieces/Month
Product Description

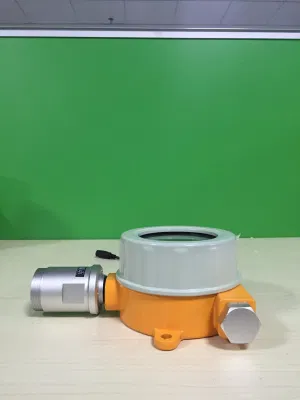

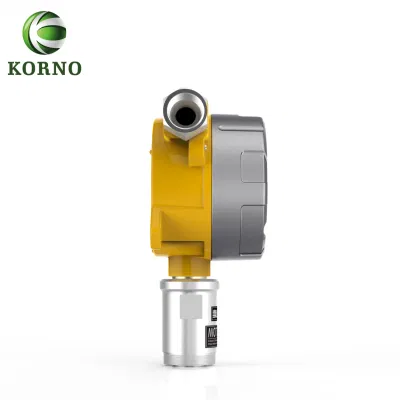

Online O2 Oxygen high Concentration 0-100%VOL Gas Detector
>>> Description
The MOT500 can continuous detect the real-time gas concentration and display data with the 2.4inches LCD HD color screen.
It include RS485 Modbus digital output and 4-20mA analog digital output as well as 2 relays output as standard.
It also provide other signal transmission like 3-4 core cable,Optical fiber network,Network cable,3G transmission,Wireless transmission,Video transmission.
And it compatible with all kinds of controller ,PLC and DCS etc, allow user to remote monitoring and control. Monitoring data can be save and analyze by computer.
>>> Key Feature
1)2.4 inches technical grade display with a pixel up to 320*240
2)Three concentration units are available PPM,%VOL,mg/m3
3)Variety signal output model :
>> 4-20mA signal :Standard 16bit 4-20mA output chip, transmission distance 1Km
>> RS485 signal: Standard MODBUS RTU protocol, transmission distance 2Km
>> 2 relays output: Concentration alarm value adjustable, there are high alarm and low alarm respectively 0-5V,0-10V output(optional)
4) Variety signal transmission are available :3-4 core cable,Optical fiber network,Network cable,3G transmission,Wireless transmission,Video transmission
5)All software automatic calibration, sensor up to 6 level target calibration,ensure the accuracy and linearity of the full scale
6) Chinese and English operation model are available,user friendly ,four buttons to operation
7)Following function are optional:Temperature,Humidity sensor,Audible and visual alarm
>>> Specifications
>>> Details
>>> 4-20mA Connection Mode
>>>Quality Control
>>> Our service
>>> Contact US
>>> Description
The MOT500 can continuous detect the real-time gas concentration and display data with the 2.4inches LCD HD color screen.
It include RS485 Modbus digital output and 4-20mA analog digital output as well as 2 relays output as standard.
It also provide other signal transmission like 3-4 core cable,Optical fiber network,Network cable,3G transmission,Wireless transmission,Video transmission.
And it compatible with all kinds of controller ,PLC and DCS etc, allow user to remote monitoring and control. Monitoring data can be save and analyze by computer.
>>> Key Feature
1)2.4 inches technical grade display with a pixel up to 320*240
2)Three concentration units are available PPM,%VOL,mg/m3
3)Variety signal output model :
>> 4-20mA signal :Standard 16bit 4-20mA output chip, transmission distance 1Km
>> RS485 signal: Standard MODBUS RTU protocol, transmission distance 2Km
>> 2 relays output: Concentration alarm value adjustable, there are high alarm and low alarm respectively 0-5V,0-10V output(optional)
4) Variety signal transmission are available :3-4 core cable,Optical fiber network,Network cable,3G transmission,Wireless transmission,Video transmission
5)All software automatic calibration, sensor up to 6 level target calibration,ensure the accuracy and linearity of the full scale
6) Chinese and English operation model are available,user friendly ,four buttons to operation
7)Following function are optional:Temperature,Humidity sensor,Audible and visual alarm
>>> Specifications
| Product Type: | Online,Oxygen (O2) | |||
| Sensor: | Thermal conductivity Gas sensor | |||
| Detection Pattern: | Diffusion,pipeline(screw thread size:M40*1.5MM),Circulation,Pumping is available,Online detection | |||
| Detection Range: | 0-100%VOL | |||
| Resolution: | 0.01%VOL | |||
| Detection Accuracy: | ≤±3%F.S | Linearity error: | ≤±1%F.S | |
| Reaction Time: | ≤20S(T90) | Zero drift: | ≤±1%(F.S/Year) | |
| Recovery Time: | ≤20S | Repeatability: | ≤±1%F.S | |
| Relay output: | Two relays output,Contact rating:24VDC 3A/220VAC 3A | |||
| Explosion Proof Sign: | ExdII CT6,Certification Number of Explosion-proof :CNEx10.1807 | |||
| Outputs: | Analog:4-20mA signal,0-5V,0-10V Modbus: RS485 signal Pulse signal or TCP/IP signal,optional | |||
| Alarm Setting: | Two alarm set points Alarm mode optional: Low alarm-High alarm / High alarm-High alarm / Low alarm-Low alarm | |||
| Controllers: | Compatible with DN3000/DN9000,as well as most DCS/PLC systems | |||
| IP Rating : | IP65 | |||
| Material: | Aluminum ,Explosion and corrosion proof | Connection: | 3/4″NPT,1/2″NPT | |
| Dimensions: | 200×160×80mm(L×W×H) | Weight: | 1.5 Kg(Net weight) | |
| Operating Temperature: | -30 ~ 60ºC | Relative Humidity: | ≤90%RH,Non-condensing | |
| Operating Pressure: | 0 ~ 200Kpa | Operating Voltage: | 24VDC(9~30VDC) | |
| Standard Accessories: | -User manual -Certification -Calibration cover | |||

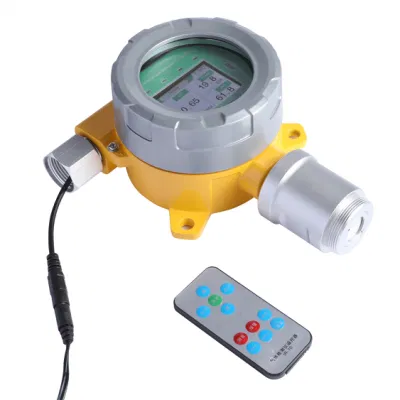

| Optional Accessories: | -hose(5*8mm),drying tube,water separator or pumping pump -infrared remote control -temperature and humidity sensor,SMS alarm,3G module or wireless transmission module | |||

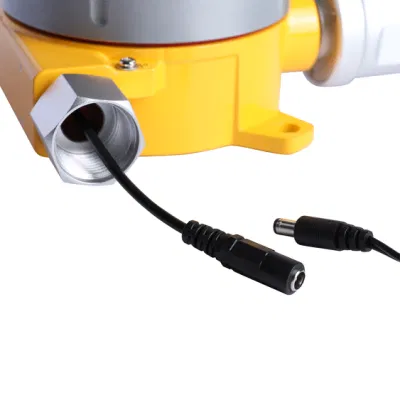

>>> Details
>>> 4-20mA Connection Mode
>>>Quality Control
>>> Our service
- All products and accessories have been 100% tested before shipping.
- We provide 12-Mounths warranty for non-deliberate damage.
- OEM & ODM are welcomed~
