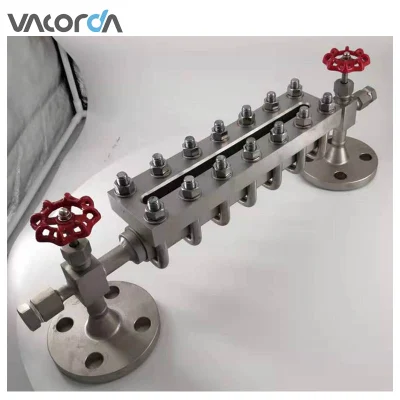

Overhead Water Tank Level Indicator Oil Level Indicator Sight Glass
Product Description
Vacorda magnetic level gauges used in the fermentation tank are made up of measuring body,dual-colored display cylinder, ruler, low flange,magnetic ball.Based on buoyance principle,the magnetic ball in the body of the level gauge is up or down with the liquid level changing and makes dual-colored turning to show the level of medium. Each cylinder is with two-color axisymmetric structures.The distance of two cylinders is 10mm. Red side of display cylinder indicates liquid and white side display cylinder indicates air. Besides measuring liquid level,it also could measure the interface of the two kinds of liquid.
Product Parameters
(1) Center-center distance: | 150~6000mm |
(2) Medium density: | More than 0.45g/cm3 |
(3) Nominal pressure: | PN2.5~PN40(x 0.1MPa) |
(4) Material: | 304, 316L or customized |
(5)Operating temperature: | -190 ~ +425 °C |
(6) Process connection: | DN20/RF/14(or customized) |
(7)Indicator types: | |
A: Al &ABS flap cylinder | B: Al flap plate |
C: PVC ABS flap cylinder | D: PP&ABS flap cylinder |
E: AL &LED | F: PP&LED |
(8) Structure of top chamber: | 1.Welding cover 2.welding cover with M14*1.5 plug screw 3.flange 4.flange with M14*1.5 plug screw 5.welding cover with DN20 flange 6.flange with DN20 flange 7.welding cover with air valve 8.flange with air valve |
(9) Structure of bottom chamber: | 1.flange cover 2.flange with drain plug screw 3.flange with DN20 welding tube 4.with DN20 flange 5.with needle/ball valve |
(10)Protection class: | IP65 |

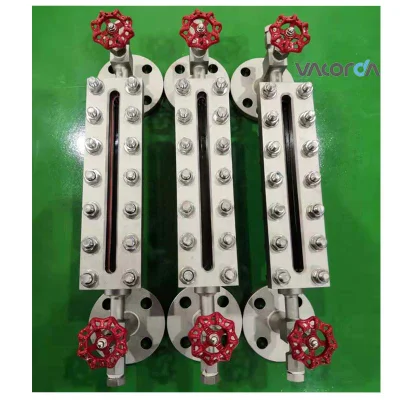

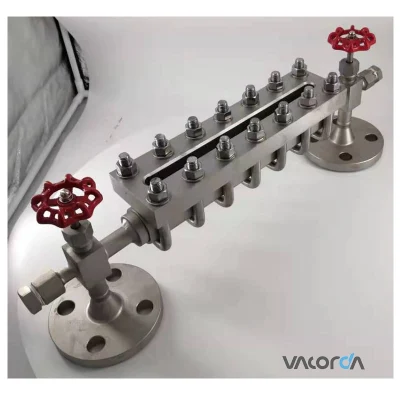

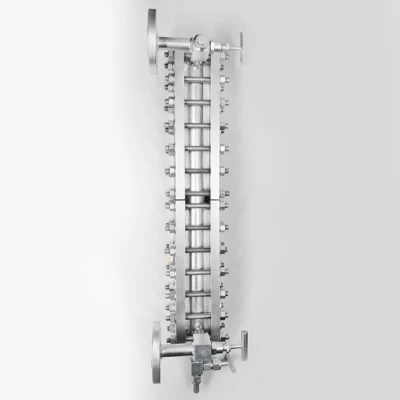

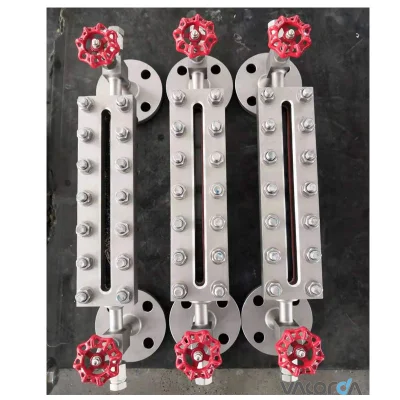

Detailed Images
Product Application
