Basic Info.
Product Description
Application of Multi-component gas analyzer:
It is widely used in online analysis and testing such as medical treatment, oxygen production, and air separation.
Instrument features of Multi-component gas analyzer:
1.Large-screen touch screen display, single screen displays three kinds of media concentration values, flow values and other related parameters;
2.Built-in original imported mass flow meter, the flow display is intuitive and convenient, and the service life is long;
3.The three measured media have temperature compensation function to reduce the influence of ambient temperature on measurement accuracy;
4.Historical data storage function, users can query historical data and historical curves locally at any time;
5.The user can choose the altitude module to avoid the influence of atmospheric pressure changes on the measurement accuracy;
6.H2O, CO users can choose not to use the range sensor;
7.Each measuring medium corresponds to one analog and alarm output;
8.Built-in alarm buzzer, redundant alarm points for three media;
9.The analyzer has two display modes, Chinese and English, which users can switch freely.
10. If the zirconia sensor is not energized, it does not be consumed, has a long life, and is easy to maintain;
11.Original imported fuel cell electrochemical sensor, fast response, high measurement accuracy, long calibration period, weak acid resistance;
12.Imported film capacitive sensor, fast response and high sensitivity;
13.The sensor has an automatic protection function without manual intervention;
14.No reference gas is required, and is not affected by the working environment oxygen concentration;
15.Very good selectivity for the gas to be measured.
Technical parameters of Multi-component gas analyzer:
| Display mode | 640 × 480 dot matrix LCD touch screen |
| Measuring range | oxygen concentration: 10.00~ 99.99% O2 Carbon monoxide concentration: 0~ 10ppm CO Dew point: -80.0~ 20.0 °C (basic type) -100~ +20.0°C (extended type) |
| Test accuracy | oxygen concentration: ≤ ± 1% FS Carbon monoxide concentration: ≤ ± 1% FS Dew point: ≤±1.2%FS |
| Repeatability | ≤±1% |
| Response time | oxygen concentration: T90 ≤ 15S Carbon monoxide: T90 ≤ 30S Dew point: T 90 ≤ 50S |
| Analog output | Three-way 4-20mA.DC (non-isolated output, load resistance less than 500 ohms), corresponding to three test media Three-way programmable dry contact passive alarm output (contact maximum capacity 220VAC/2A), corresponding to three test media |
| Communication interface | RS232 (default) or RS485 |
| Sample gas flow | oxygen / carbon monoxide channel 0.4 ~ 0.6L / min Dew point channel 1.5 ~ 2L / min |
| Sample gas pressure | inlet pressure 0.1 ~ 0.5MPa, outlet pressure is atmospheric pressure |
| Flow display | electronic flow meter |
| Sampling method | straight-through type |
| Service life | oxygen sensor > 5 years (under normal use conditions) Carbon monoxide sensor > 3 years (under normal use conditions) Dew point sensor > 5 years (under normal use conditions) |
| Size | 176mm × 350mm × 356mm (H × W × D) |
| Hole Size | 176mm × 307mm (H × W) |
| Power supply | AV170 ~ 264V 50/60Hz, power consumption is less than 20W |
| Air circuit interface | NPT 1/8 internal thread |
| Installation method | embedded |

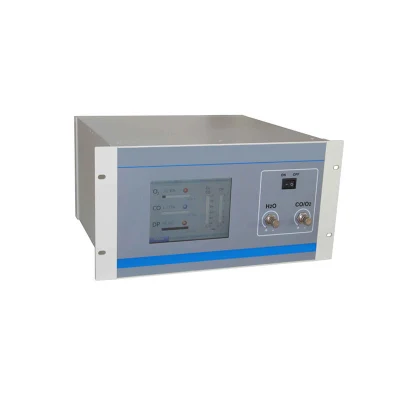

Related photos of Multi-component gas analyzer:
Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.
We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.
More questions, please contact customer service.
