Basic Info.
Product Description
Why choose us?

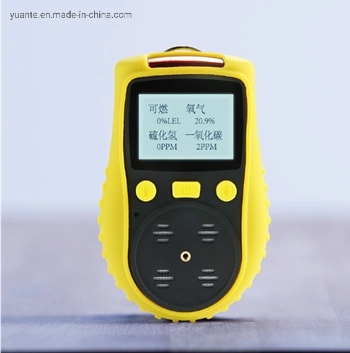

Product overview
Product Advantages
1. Employ original imported high-precision sensor.
2. Four random gas sensors can be combined freely.
3. LCD dot matrix display,
4. Chinese and English operation.
5. The gas concentration unit PPM and mg/m3 can be shifted quickly.
6. The battery and voltage can be checked by one press.
7. One press to restore factory settings.Ultra-high buzzer alarm sound, alarm with sound, light and vibration at the same time.
8. Can record 100 sets alarm data, alarm record can b e checked on the device.
9. Data storage function, can record 100 thousand set data, historical data can be viewed on the device (optional function).
10. Rechargeable lithium polymer battery of large capacity, which ensure the device to work continuously for a long time.
11. Strong and upscale alligator clip, convenient to take along during operation.
12. Special engineering plastics housing of high intensity, strong and durable, exquisite and comfortable in touching.
Specificiation
| Gas Detected | EX/O2/CO/H2S | ||
| Detection principle | Electrochemistry& LEL | ||
| Sampling Method | Diffusion | ||
| Measure Range | 0-100%LEL(EX), 0-30%Vol(O2), 0-1000ppm(CO), 0-100ppm(H2S) | ||
| Resolution | 0.01%LEL(EX), 0.01%Vol(O2), 1ppm(CO), 0.01ppm(H2S) | ||
| Precision | ≤± 2-5% F.S. | ||
| Data recording | Storage capacity of over one hundred thousand sets. Interval time ranges from 10-3600seconds are settable. (Optional function) | ||
| Response Time | ≤10S | Recovery Time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%(F.S/year) | Display | Monochrome dot matrix display |
| Operating language | Chinese/English | Gas unit | ppm, mg/m3,%VOL,%LEL |
| Temperature | -20ºC~50ºC | Humidity | 0-95%RH |
| Explosion-Proof | Exiia IICT4 | Degree of protection | IP66 |
| Alarm mode | Sound, light, vibration | Operating time | 14 hour continuously |
| Dimensions | 131*83*35mm | Weight | 240g |
Product details
Package
Company information
FAQ
