Basic Info.
Model NO.
PT201
Output Signal Type
Analog Type
Production Process
Welded
Material
Stainless Steel
Measuring Medium
Liquid
IP Rating
IP68
Certification
CE RoHS FCC SGS ISO
Customized
Customized
Pressure Ranges
0~2...1000bar Pressure Sensor
Overload Pressure
150%Fs of 0-150 Psi Pressure Transducer
Output Signal
4~20mA, 0~5V, 0~10V, 1~5V Pressure Sensor
Accuracy
0.5%Fs (Standard)
Supply Voltage
10~30V Pressure Sensor
Operating Temperature Range
-40~+120°c of 0-150 Psi Pressure Transducer
Process Connection
G1/4 or Others You Can OEM
Electrical Connection
DIN43650 Cable Direct Packard M12
Pressure Medium
Gas Liquid Compatible Stainless Steel
Long Term Stability
<0.25%Fs/Year
Warranty
12 Months
Transport Package
Atech Standard Carton Box
Specification
0.5KG
Trademark
Atech sensor
Origin
China
HS Code
9026201090
Production Capacity
10000
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
0.500kg
Product Description
Product overview

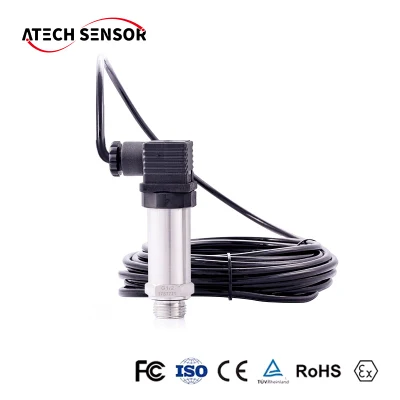

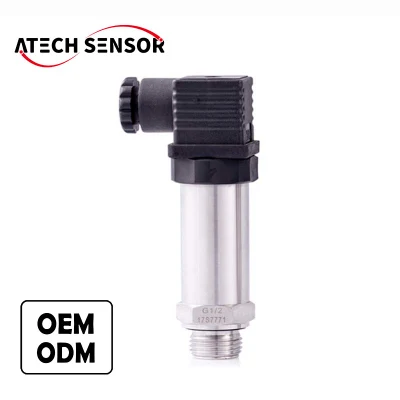

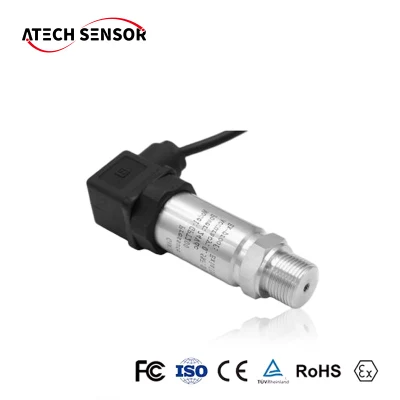

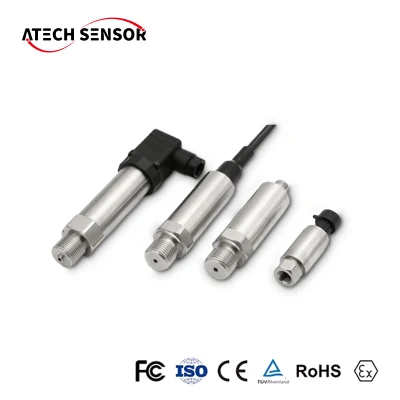

PT201 series of pressure transmitter is a standard and most popular transmitter applied in air and liquid pressure measuing are cost effectived products featuring mass production and low cost.The products are made of stainless steel. the pressure sensing elements chips are selected from well-known international brands. Special circuits are adopted to zero and full range conveniently. The products are approved with CE, intrinsically safe, and explosion proof certificates.Customized structures and output formats can be designed according to special application requirements.
Ω
| pressure medium | gas liquid compatible stainless steel |
| pressure ranges | 0~2...1000bar |
| overload pressure | 300%FS |
| output signal | 4~20mA, 0~5V, 0~10V, 1~5V,0.5-4.5V ,RS485, RS485&4-20mA |
| accuracy | 0.5%FS (standard) 0.25%FS 0.1%FS |
| load resistance | RL = (U-10)/0.02(Ω) (4~20mA current output), >20KΩ (voltage output) |
| long term stability | <0.25%FS/year |
| supply voltage | 10~30V |
| compensated temperature range | -10~70°c |
| operating temperature range | -40~+120°c |
| storage temperature range | -40~+140°c |
| temperature coefficient of zero | 0.3%FS/10°c |
| temperature coefficient of span | 0.3%FS/10°c |
| insulation resistance | >100MΩ@ 50VDC |
| process connection | G1/4 or others |
| electrical connection | DIN 43650 or others |
| material of wetted part | 1Cr18Ni9Ti |
| material of pressure membrane | 316L |
| material of housing | 1Cr18Ni9Ti |
| weight | 180g |
Get more cooperation schemes,please contact me
How to proceed an order?
1. Let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. Customer places payment for formal order.
4. We arrange the production.
FAQ
1.Q: How long is the delivery?
-- Mostly within 10days
2.Q:Can I get a sample?
-- Sure, contact our sales please
-- Sure, contact our sales please
3.Q:What is your MOQ?
-- 1pcs
-- 1pcs
4.Q: How about warranty time?
-- 12-18months
-- 12-18months
5.Q: How can I visit your factory?
-- Fly to Xi'an air port, it's our pleasure to pick you up.
-- Fly to Xi'an air port, it's our pleasure to pick you up.
6.Q:How do you control your quality ?
-- We have EPR system .we control from parts, process, testing, packing ,retesting.
-- We have EPR system .we control from parts, process, testing, packing ,retesting.
7.Q: Do you have test report for each product?
-- Yes,we have test report for each product.
8.Q: Can you customize product for us according to our required specifications?
-- Yes,we are OEM manufacturer,we could customize products according to your required specifications.
Every Sensor will be tested two times before reach you, after that sport test for the third time. Make sure about the quantity.Welcome to order our products
