High Precise Optical Fiber Infrared IR Thermometer Online Temperature Sensor

Find high precise optical fiber infrared IR thermometer online temperature sensor at our factory. Get accurate temperature readings for your applications.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Certifications
  • Packaging & Shipping
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
FOT-6H1
Customized
Customized
Product Name
Optical Fiber Thermometer
Accuracy
0.5%
Emissivity
0.10~1.00
Analog Output
4~20mA ,0~20mA ,0~5V,0~10V
Temperature Range
400 ~ 1800 C
Transport Package
1PC/Carton
Specification
27x22x8.5 CM
Trademark
Logo
Origin
China
HS Code
9025191090
Production Capacity
1000PC/Month

Product Description

High Precise Optical Fiber  Infrared IR Thermometer Online Temperature Sensor
Product Description

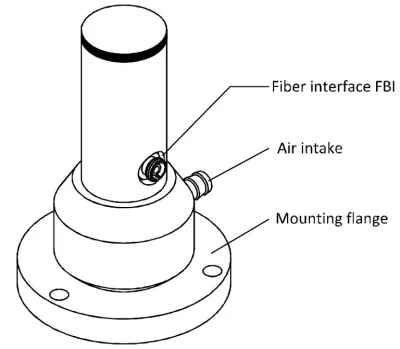

FOT-6 fiber optic infrared thermometer provide accurate measurement of targets that are obstructed by smoke, steam or particulates, or are either moving or smaller than the instrument's field of view. It measures target temperatures ranging from 400ºC to 3000ºC with four models. It consists of a rugged fiber optic cable plus optical head assembly connected to an electronics housing containing the detector, processing electronics, internal user interface/LED display, and termination connections for field wiring. The electronics maintain high accuracy in ambient operating temperatures up to 60ºC. The optical head consists of a small stainless steel cylindrical housing and lens assembly. The optical head accommodates an air-purge collar to prevent lens contamination and can be capable of withstanding ambient temperatures up to 220ºC. The fiber optic cable is protected by metal armor. The assembly accommodates a small bend radius for threading through tight spaces.

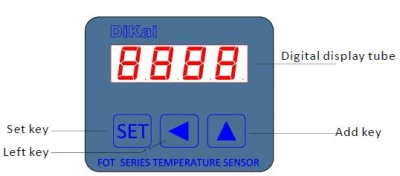

LED display provides a convenient on-line indicator of the thermometer's operating status and easy operation of setting the parameters. The sensor features through-the-lens optical sighting. The optical resolution is 160: 1 and the smallest spot size is 2mm. The emissivity is 0.10 to 1.00 in 0.01 increments.
FOT-6 fiber optic thermometer can be equipped with a compact, value-priced monitor that configures the functions via the front panel. It also includes optional bidirectional RS485 serial communications between the thermometer on the factory floor and a personal computer in the control room. This enables remote setup, monitoring and maintenance, especially valuable for installation in hard-to-reach locations.

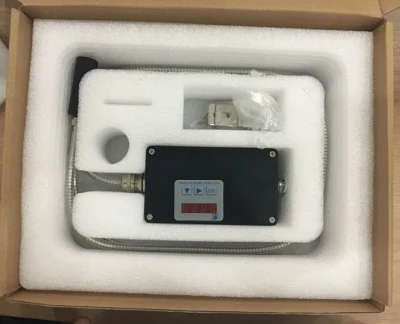

Detailed Photos
High Precise Optical Fiber Infrared IR Thermometer Online Temperature Sensor
High Precise Optical Fiber Infrared IR Thermometer Online Temperature Sensor

High Precise Optical Fiber Infrared IR Thermometer Online Temperature Sensor

Product Parameters
Model     FOT-6H1 FOT-6H2  FOT-6H3 FOT-6H4
Optical resolution  160:1
Spectral reponse 1-1.7µm 0.4-1.1µm
Accuracy  ±0.5%(FS)
Repeatability 0.2%
Response time(95%) ≤5ms
Output  0-20mA or 4-20mA or 0-5V
Power 24VDC ,100mA
Emissivity 0.10 to 1.00 adjustable (0.01)
Certifications

High Precise Optical Fiber Infrared IR Thermometer Online Temperature Sensor

Packaging & Shipping

High Precise Optical Fiber Infrared IR Thermometer Online Temperature SensorHigh Precise Optical Fiber Infrared IR Thermometer Online Temperature Sensor

Company Profile

High Precise Optical Fiber Infrared IR Thermometer Online Temperature Sensor

FAQ

1) Are you a trading company or a manufacture factory?

We are the direct Factory, but we have international trading ability. We offer high quality products with proper prices.

2) How long has your company been working on Infrared Thermometers?
Over 15 years experience in this field.

3) What payment terms can you accept?
Our company can accept T/T, L/C, Western Union,  Paypal payment. ...

4) After an order is placed, what is the delivery time?
Normally within 7 days after payment received.

5) Can your company accept customization?
Yes, it is no problem, we have our own R&D team , can research and develop customized model as you require.

6) What's the MOQ of your product? Our MOQ is 1 pc, but our prices base on the quantity. If you purchase more at one time, the unit price will be cheaper.

7) How to make an order ?
You can tell us the temperature range you need or where to use the thermometer, our technician will suggest the most suitable model according to your needs.  After paying to our account, we will arrange the production and delivery ASAP.
