Basic Info.
Model NO.
TOT170UCA111
Touch Type
Projected Capacitive
Number of Touches
Multi Touch (10)
Active Area
13.30" × 10.64"/ 337.92mm × 270.34mm
Interface
USB (Standard), I2c (Optional),
Overall Thickness
2.8mm
Cover Glass Thickness
1.8mm
Operating Temp
-20° to 70°c
Humidity
Rh <90% (Non-Condensing)
Input Methods
Finger,Gloved Hand,Passive Stylus
Regular Warranty
1year
MOQ
1 Piece
Delivery Time
5-8 Working Days
Certification
CCC, Ce, RoHS, FCC
Transport Package
10 Piece Per Carton
Specification
15.04" × 12.36" × 0.11"
Trademark
TopOneTech
Origin
Shenzhen China
HS Code
8548900030
Production Capacity
5000 Pieces/Year
Product Description

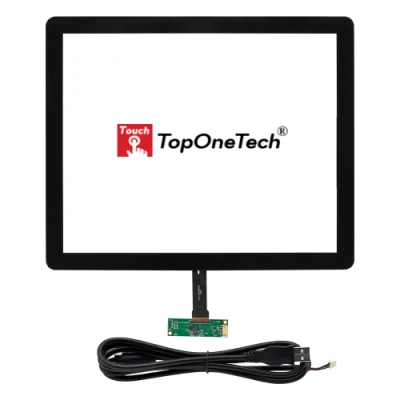

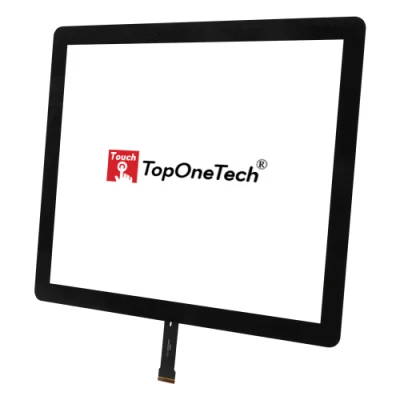

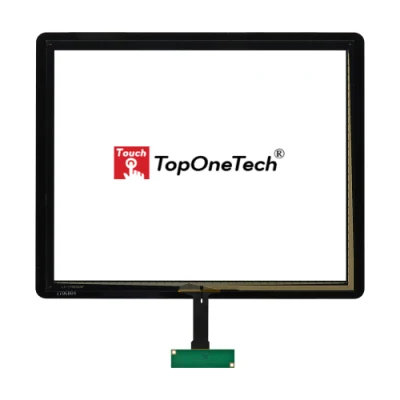

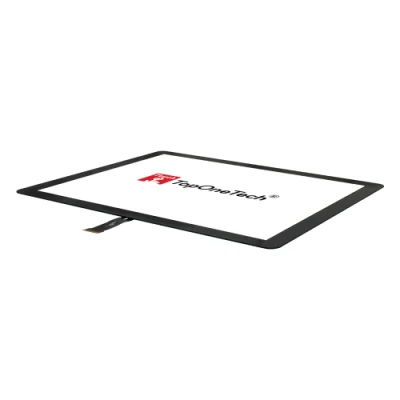

Toponetech's 17 inch projected capacitive (PCAP) touchscreens through various touch panel structures including anti sacratched glass layers.
Due to its highly durable and smooth surface,projected capacitive touch screen is suitable for industrial touchscreen display applications,Gaming,
Transprotation,and so on.the waterproof technology of Projected capacitive touchscreen, which can be operated with Works with water,dust,oil,
moisten and provides a high quality touch experience under harsh condition. (up to 10 touch points). Toponetech offers both standard and custom
industrial display sizes, Toponetech's 17 inch projected capacitive touch screens are form, fit or function replacements for 3M™ and Elo™ touch
sensors.
Customizable:Top One Tech® offers a wide range of customization options to meet your requirements including screen dimensions, cover glass thickness, bonding and surface treatments such as anti-glare.
Specifications:
Mechanical Dimensions
Other PCAP Touch Screen:
Due to its highly durable and smooth surface,projected capacitive touch screen is suitable for industrial touchscreen display applications,Gaming,
Transprotation,and so on.the waterproof technology of Projected capacitive touchscreen, which can be operated with Works with water,dust,oil,
moisten and provides a high quality touch experience under harsh condition. (up to 10 touch points). Toponetech offers both standard and custom
industrial display sizes, Toponetech's 17 inch projected capacitive touch screens are form, fit or function replacements for 3M™ and Elo™ touch
sensors.
Customizable:Top One Tech® offers a wide range of customization options to meet your requirements including screen dimensions, cover glass thickness, bonding and surface treatments such as anti-glare.
Specifications:
| Part Number(s) | PCAP (Worldwide) -TOT170UCA111 |
| Technology | PCAP (TopOneTech® Projected Capacitive) |
| Number of Touches | Multi Touch (10) |
| Input Methods | Finger |
| Gloved hand | |
| Passive stylus | |
| Dimensions | sizes from 7" to 55" |
| Active Area (mm) | 13.30" × 10.64"/ 337.92mm × 270.34mm |
| Touch Panel Dimensions | 15.04" × 12.36" ×0.11" /382mm × 314mm × 2.8mm |
| Light Transmittance | ≥ 90% |
| Haze | < 1% |
| Overall Thickness | 2.8mm |
| Cover Glass Thickness | 1.8mm |
| Surface Treatment | Anti-glare (optional) |
| Anti-fingerprint (optional) | |
| Anti-smudge (optional) | |
| Durability | Over 50 million touches in one location |
| Positional Accuracy | ± 1.5mm |
| Interface | USB (Standard), I2C (Optional) |
| Report Rate | ≥ 100Hz |
| Operating System | Windows XP |
| Windows 7 | |
| Windows 8 | |
| Windows 10 | |
| Linux | |
| Android | |
| Utilities | Multiple monitor |
| Touch zones | |
| Various touch modes | |
| Operating Temperature | -20° to 70°C (Non Condensing) |
| Humidity | RH <90% (Non-Condensing) |
| Safety Approvals | CE,FCC,ERP |
| Warranty | 1-year limited warranty |
| Note | Actual technical specifications are dependent on multiple design variables including touch IC and screen size. Values above are for reference only. |
Other PCAP Touch Screen:
| Size | Ratio | Thickness(mm) | Controller | Connector type | AA(MM) | OD(MM) | Part Number |
| 5" | 16:10 | 1.95 | GT911 | USB | 108.60*65.40 | 116.91*75.54 | TOT005UCA111 |
| 7" | 16:09 | 2 | ILI2511 | I2C | 154.60*86.32 | 173.03*115.50 | TOT007UCA111 |
| 8" | 4:03 | 1.3 | GT911 | USB | 162.15*121.45 | 175.85*137.31 | TOT008UCA111 |
| 10.1" | 16:09 | 2 | ILI2511 | USB | 216.58*135.36 | 246.69*165.70 | TOT101UCA111 |
| 10.4" | 4:03 | 2.9 | WEIDA | USB | 212.80*160.20 | 264.30*203.80 | TOT104UCA111 |
| 12.1" | 4:03 | 3 | WEIDA | USB | 248.00*186.50 | 291.84*195.09 | TOT121UCA111 |
| 15" | 4:03 | 3.9 | ILI2302 | USB | 305.00*229.01 | 339.85*263.85 | TOT150UCA111 |
| 15.6" | 16:09 | 2 | WEIDA | USB | 344.23*193.954 | 386.72*236.85 | TOT156UCA111 |
| 17" | 4:03 | 2.8 | WEIDA | USB | 337.92*270.34 | 382.00*314.00 | TOT170UCA111 |
| 18.5" | 16:09 | 2.8 | WEIDA | USB | 409.80*230.40 | 458.00*283.00 | TOT185UCA111 |
| 19" | 4:03 | 2.8 | WEIDA | USB | 377.32*302.05 | 414.32*302.50 | TOT190UCA111 |
| 21.5" | 16:09 | 2.8 | WEIDA | USB | 476.64*268.11 | 521.64*312.60 | TOT215UCA111 |
| 23.6" | 16:09 | 4.3 | ILI2302 | USB | 523.50*295.20 | 582.20*362.50 | TOT236UCA111 |
| 23.8" | 16:09 | 4.35 | ILI2302 | USB | 525.50*297.00 | 573.05*349.05 | TOT238UCA111 |
| 24" | 16:09 | 3.3 | ILI2302 | USB | 519.50*325.10 | 556.20*359.06 | TOT240UCA111 |
| 27" | 16:09 | 4.3 | ILI2302 | USB | 598.02*336.02 | 649.03*389.03 | TOT270UCA111 |
| 32" | 16:09 | 4.3 | ILI2302 | USB | 698.70*393.30 | 754.70*449.30 | TOT320UCA111 |
